Nikon D3100 VBA28001 - Main.condenser

VBA28001-R.3813.A
- A37 ・ D3100 -
4.5±1mm
#1043
#141
[Red]
[Black]
TA-0015(13x28)
Main condenser

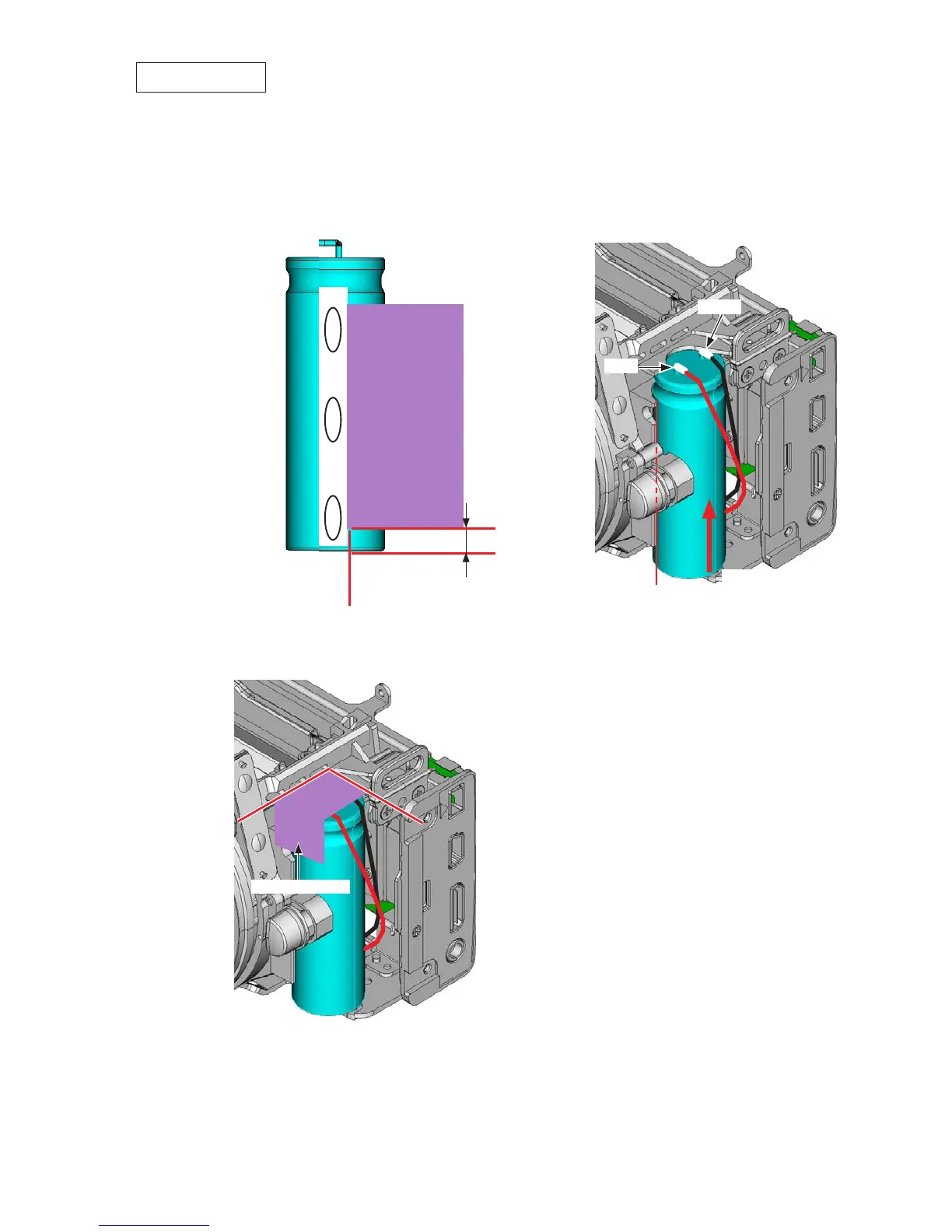

Attach the double-stick tape (#141) to the main condenser (#1043).
Mount the main condenser unit based on the mounting position of the front body so that the end of the
attached double-stick comes to the mounting-position line.
Solder the two wires on the main condenser unit.
Attach the tape TA-0015 [TA-0015 (13×28)].
•
•
•
•
Attach the double-stick
tape based on the polar
mark of the condenser.
Mounting
position
Direction for
positioning
