Nikon D3100 VBA28001 User Manual

VBA28001-R.3813.A
- A15 ・ D3100 -
#87 ~ #107×3

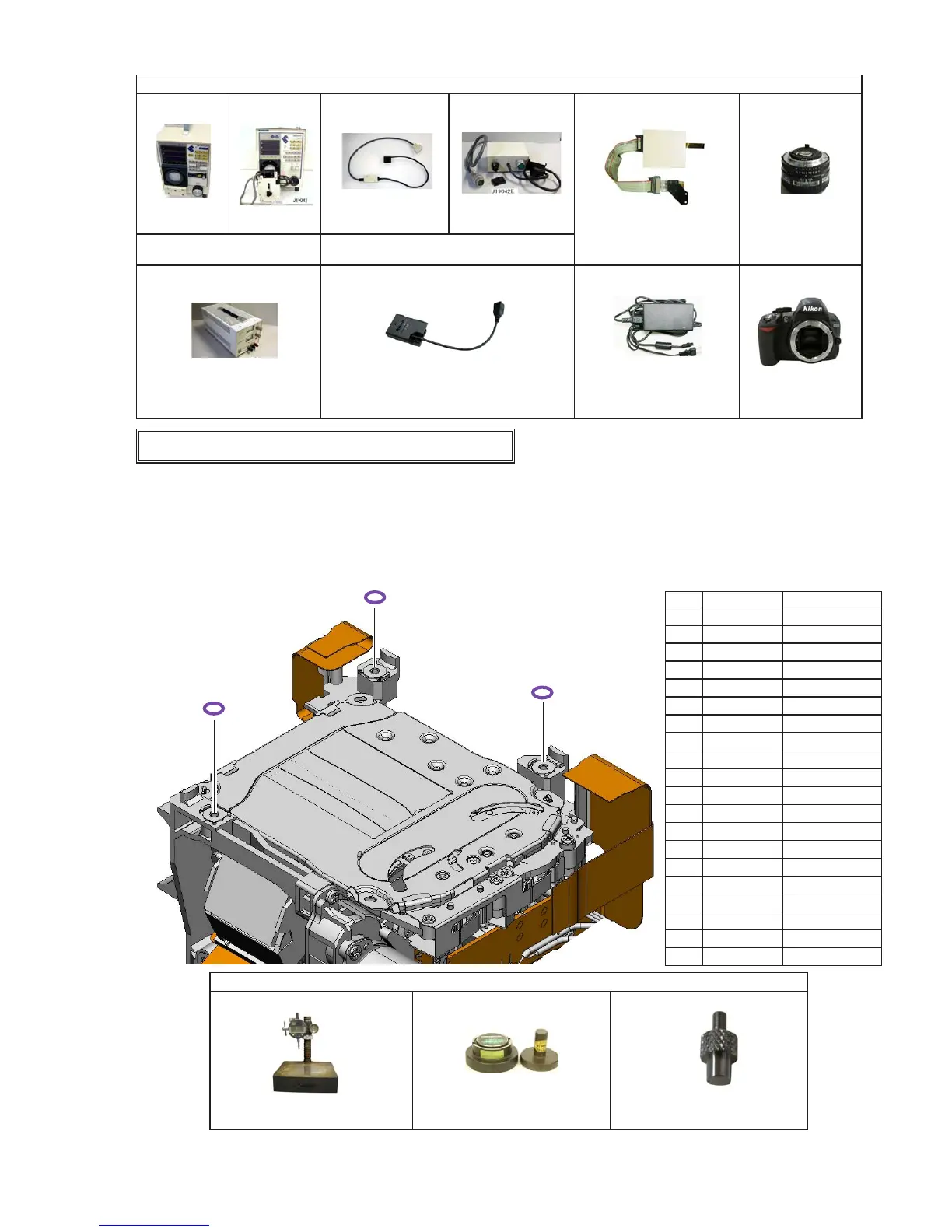

Inspection and adjustment of ange-back (body-back)
Put the washers (#87 - #107).
Refer to "
①
Models WITHOUT rear body" of "Inspection and adjustment of ange-back (body-back)"
of ADJUSTMENT Separate Volume
①
for details.
Rotational direction/scale: Turn counterclockwise by 28 divisions of scale (0.28mm).
Standard of measured value: 44.39 ± 0.015mm/Parallelism: 0.015mm or less
•
•
Tool (device)
J19123 Unavailable J19123E J19042E J61242 J18267
EF-1 EF-8000 For EF-1 For EF-8000 Curtain speed adjuster LENS AF50/1.4D
Shutter tester T.V. Measuring adapter
J61245
Power supply
(10V 5A)
Power connector
EP-5A
AC adapter
EH-5 or EH-5A
Curtain speed adj.
dummy body
Tool (Device)
J19004-1 J18001-1 J11388
Dial indicator and stand Body-back focus gauge Flat-type measuring terminal
87 1K106-553 washer T=0.05
88 1K106-554 washer T=0.06
89 1K106-555 washer T=0.07
90 1K106-556 washer T=0.08
91 1K106-557 washer T=0.09
92 1K106-558 washer T=0.10
93 1K106-559 washer T=0.11
94 1K106-560 washer T=0.12
95 1K106-561 washer T=0.13
96 1K106-562 washer T=0.14
97 1K106-563 washer T=0.15
98 1K106-564 washer T=0.16
99 1K106-565 washer T=0.17
100 1K106-566 washer T=0.18
101 1K106-567 washer T=0.19
102 1K106-568 washer T=0.20
103 1K106-569 washer T=0.21
104 1K106-570 washer T=0.22
105 1K106-571 washer T=0.23
106 1K106-572 washer T=0.24
107 1K106-573 washer T=0.25
