Nikon D3100 VBA28001 - Page 84

VBA28001-R.3813.A
- A25 ・ D3100 -
#607

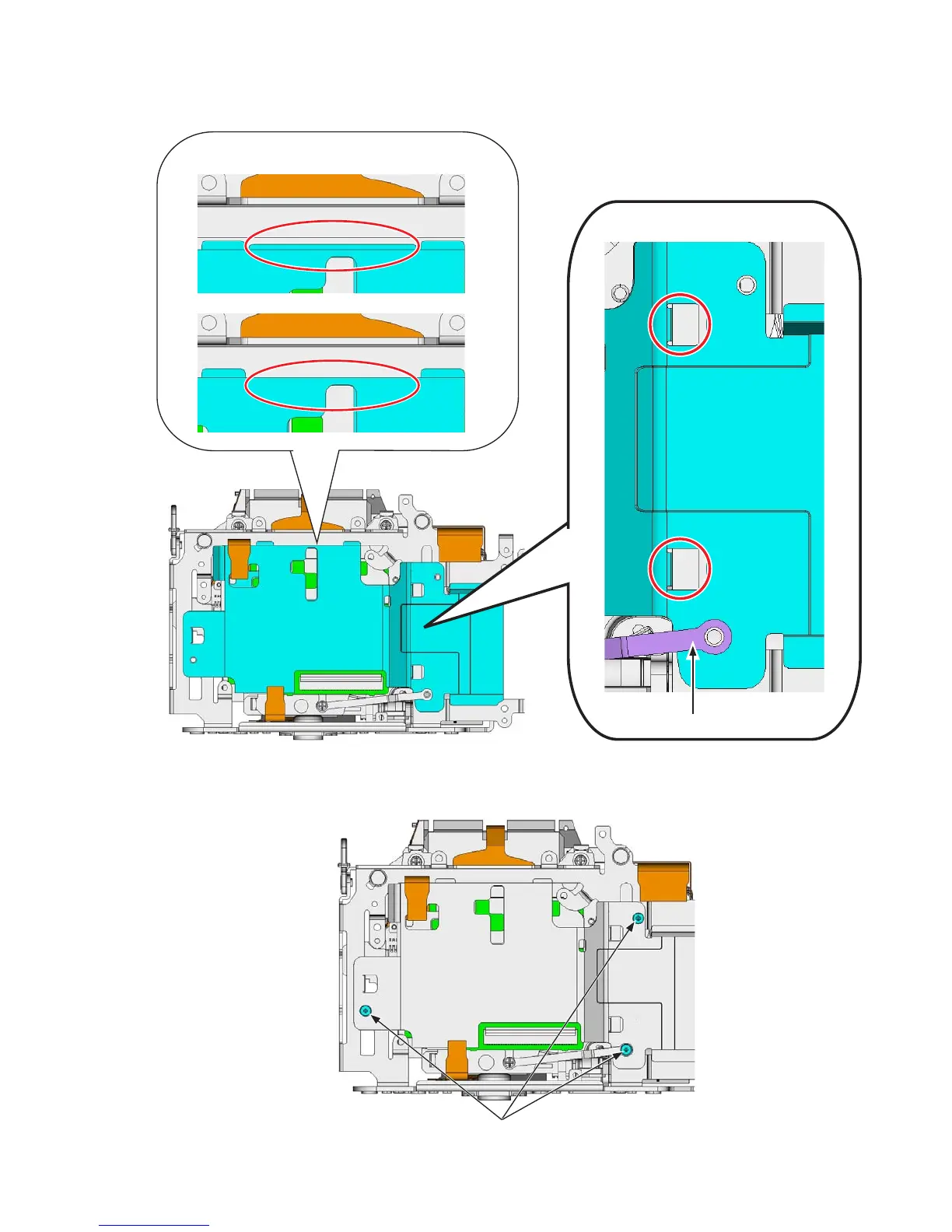

Mount the shield plate unit so that the GND plate of the image sensor unit is not pinched.•
Tighten the three screws (#607).•
GND plate
Pinch in as below.
Fit the image sensor unit as below.
