Nikon D3100 VBA28001 User Manual

VBA28001-R.3813.A
- A73 ・ D3100 -
adjustment 1
adjustment 2
adjustment 3
adjustment 4
adjustment 5
adjustment 6
adjustment 7
Initial
setting
Ver.No/
Ser.No
Image sensor
cleaning
insp. *
Shutter
○
AF sensor
unit
SZ-DC/DC
PCB unit
△
Prism box
unit
TOGO
PCB unit
○ ○ ○ ○ ○ ○ ○ ○ ○
Power drive
PCB
△
Image sensor
unit
○ ○ ○ ○ ○ ○ ○ △
LCD monitor
unit
License sheet
○
SQ PCB
unit
○
MG PCB
unit
○
Front body
unit
○
＊

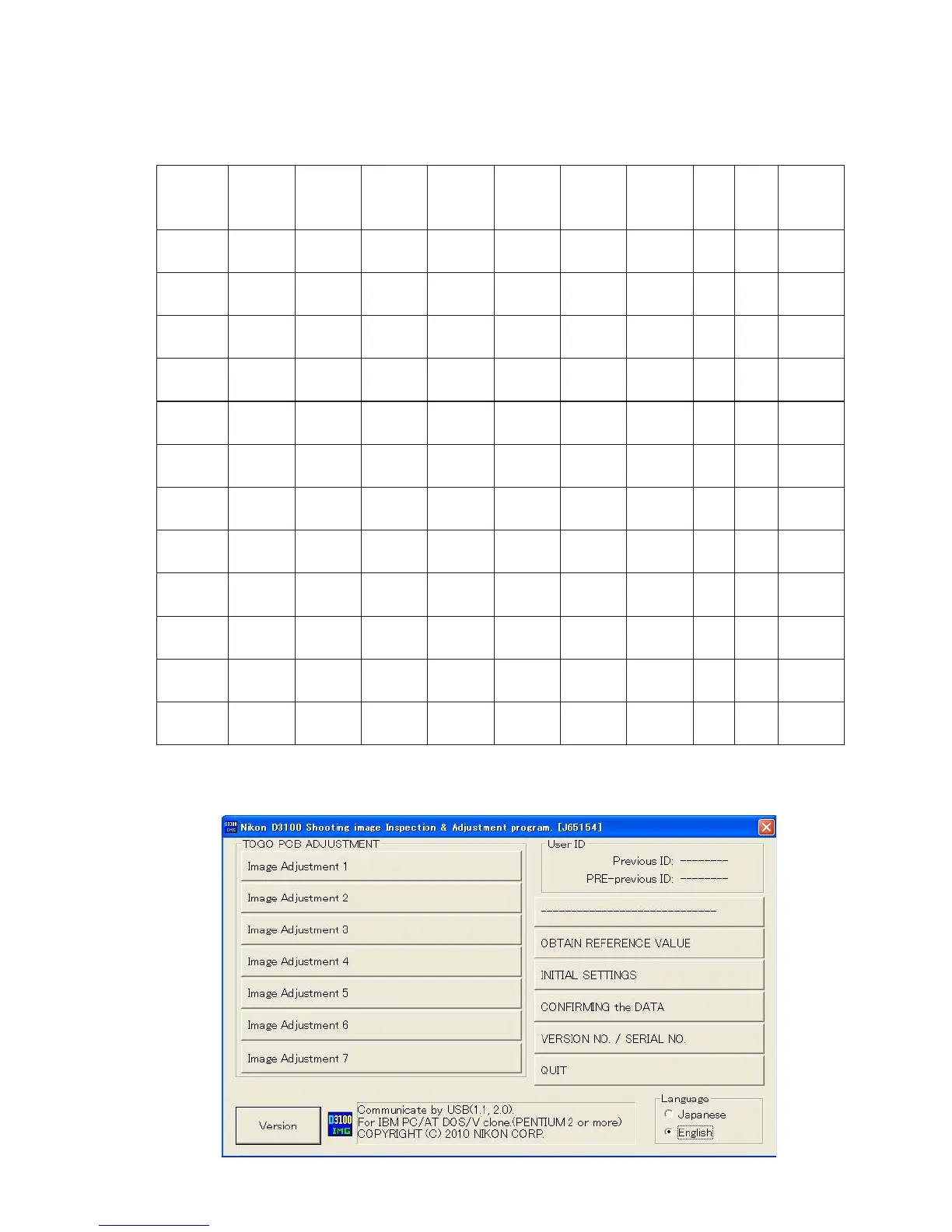

In other cases than replacements of the parts, if users point out the problems, perform the image sensor
cleaning operations/inspections.
Necessary inspection and adjustment of imaging when parts are replaced
（
○: Necessary
△△
: Inspection only
）
User ID:INC
