Nikon D3100 VBA28001 - Page 108

VBA28001-R.3813.A
- A49 ・ D3100 -
#618
#36
③
#B1007
①
②
#455
#617
#458
[Black] [White]

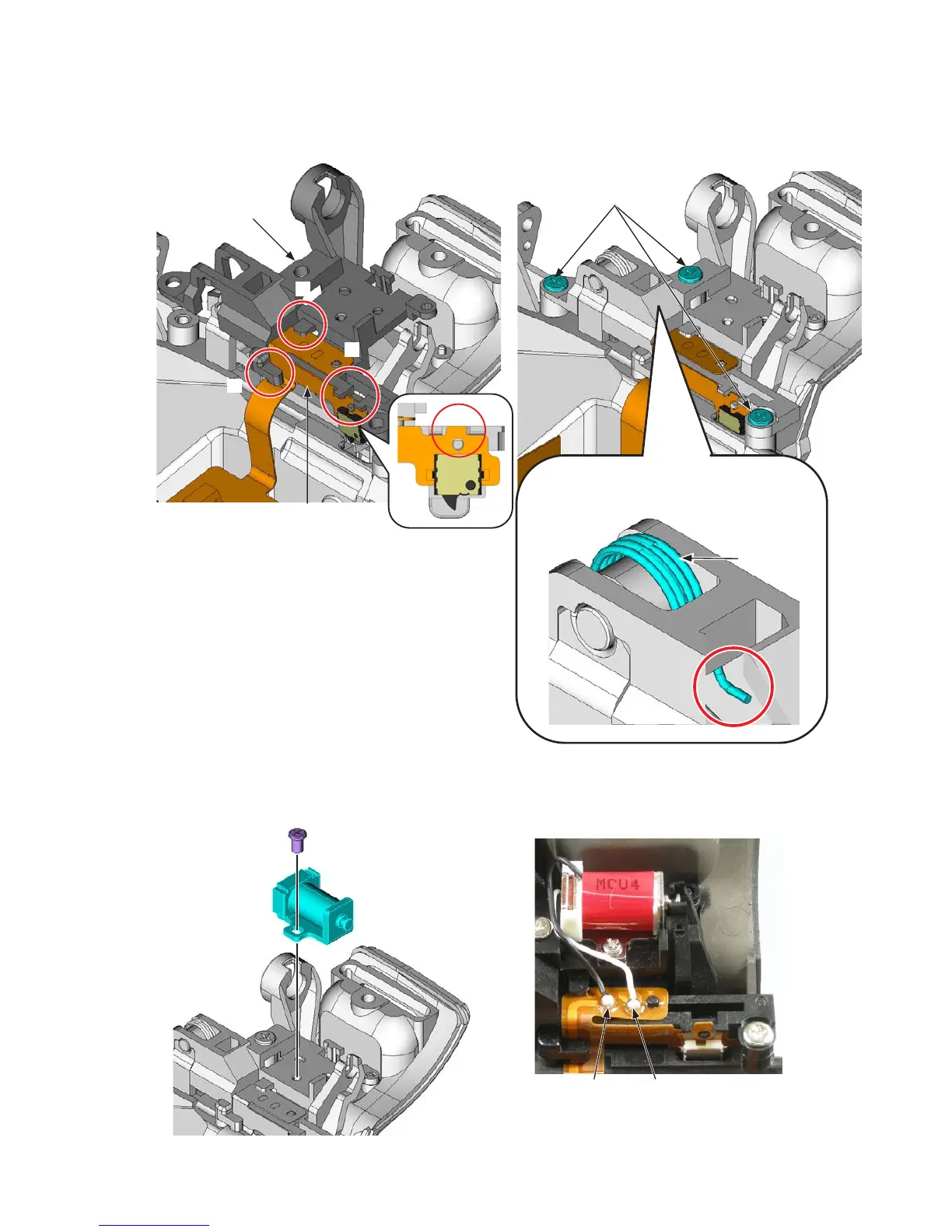

Attach the driving magnet (#36), and tighten the screw (#618).
Solder the two wires.
•
•
While hooking the top cover lever FPC unit (#B1007) in the numeric order from
①
to
③
, mount the SB
release PCB (#455).
Tighten the three screws (#617).
•
•
The tip of [#458] must come out from the
below "○" (indicated in red) of the SB release
PCB (#455).
