Nikon D3100 VBA28001 - Page 21

VBA28001-R.3813.A
- D16 ・ D3100 -
③
#B1007
#617
①
②
#309
#458
#309
#456
#458
#455

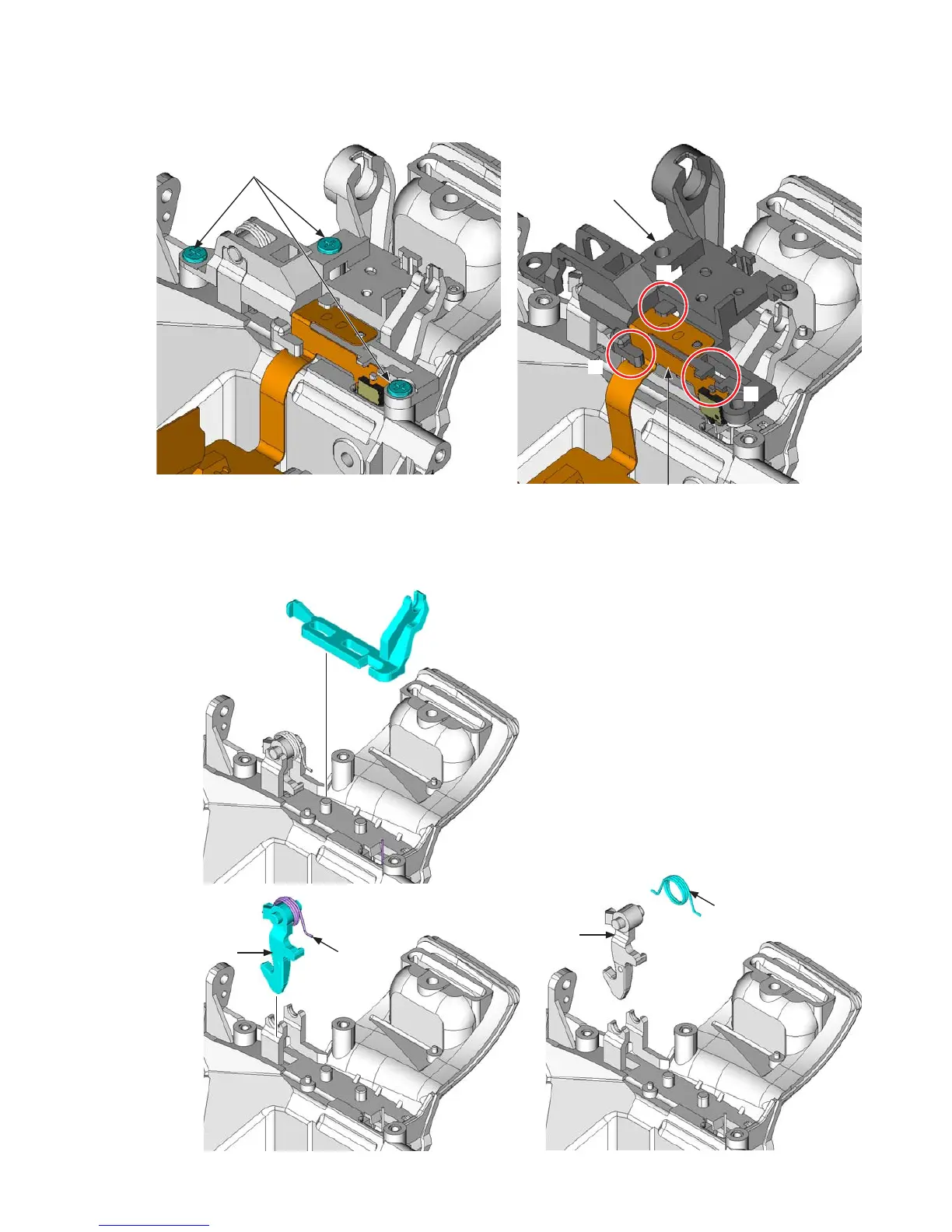

Take out the three screws (#617).
Unhook the top cover FPC unit (#B1007) in the numeric order from
①
to
③
, and then remove the SB
release PCB (#455).
•
•
Remove the SB release lever (#456).
Remove the SB lock lever (#309) and spring (#458) together.
Remove the spring (#458) from the SB lock lever (#309).
•
•
•
