Nikon D3100 VBA28001 - Page 37

VBA28001-R.3813.A
- D32 ・ D3100 -
[Red]
[Blue]
#1026
[Black]
[Red]
#658
#664
#1004

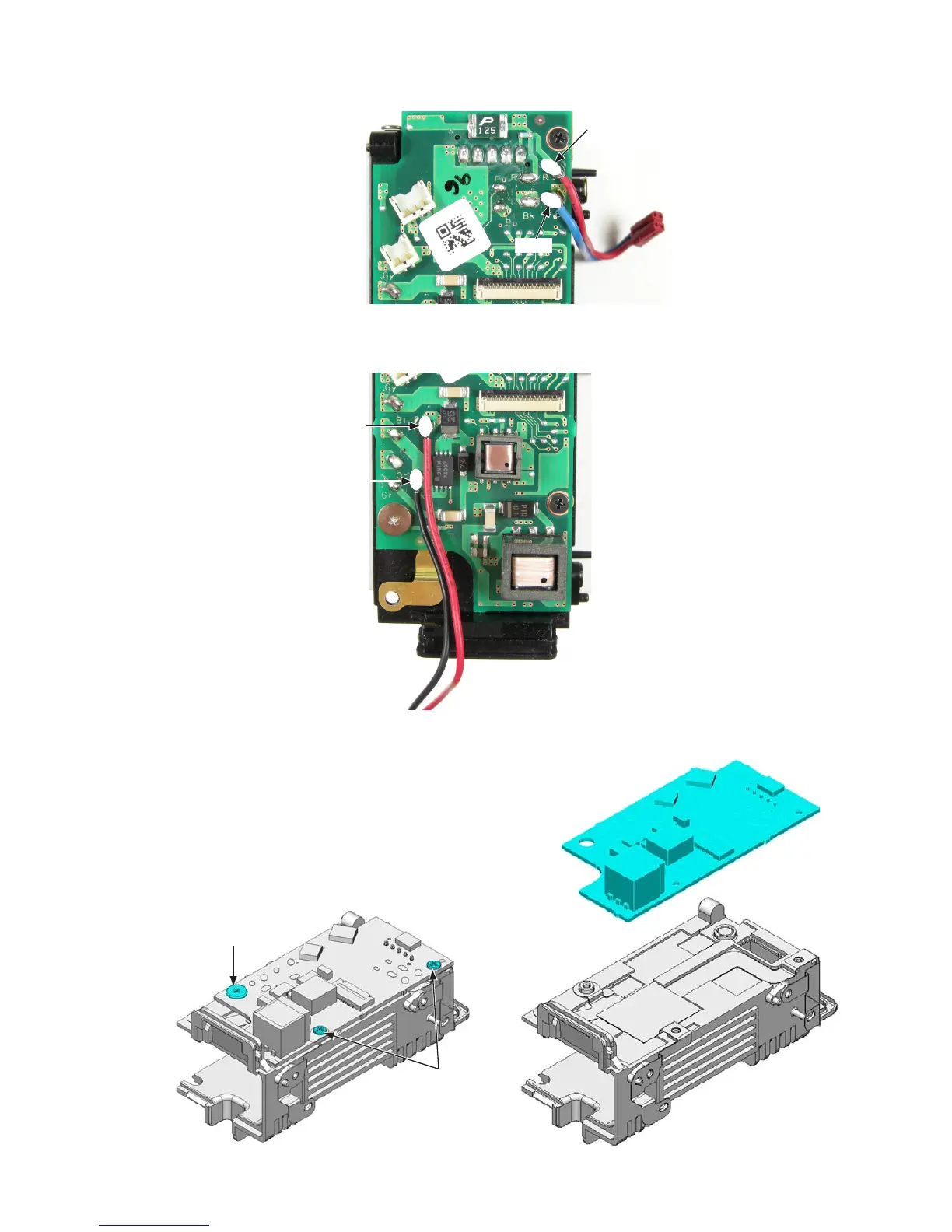

Unsolder the two wires of the harness (#1026).•
Unsolder the two wires of the condenser.
The battery box unit will come off.
•
•
Take out the two screws (#658) and one screw (#664).
Remove the power drive PCB (#1004).
•
•
