Nikon D3100 VBA28001 - Page 51

VBA28001-R.3813.A
- D46 ・ D3100 -
#B2016
#179
#619
#2001RP

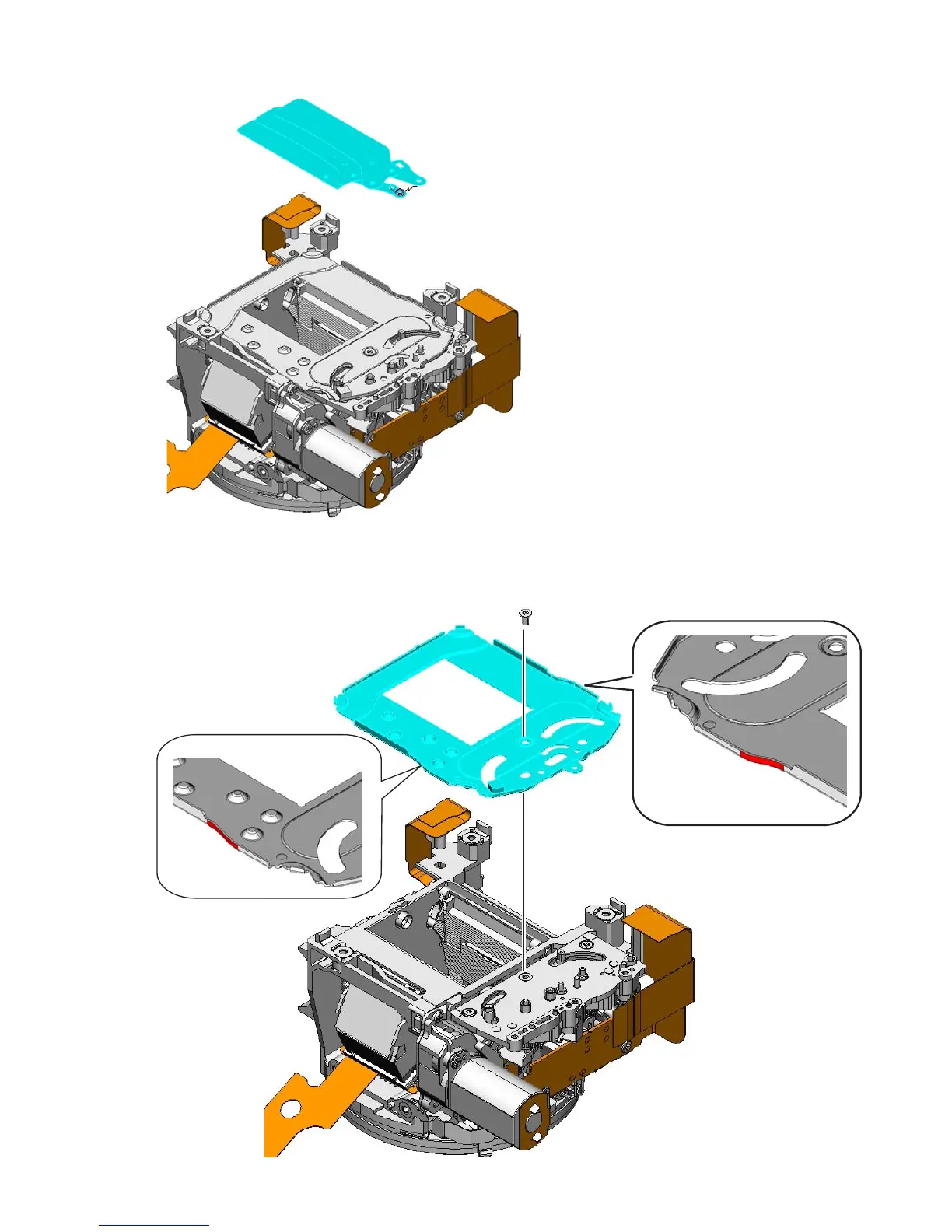

Remove the shutter curtain unit (#B2016), and also remove the spring (#179).•
Take out the screw (#619).
Remove the shutter PCB unit (#2001RP).
Caution: To avoid deformation of [#2001RP], do NOT hold the other areas than indicated in red.
•
•
