Nikon D3100 VBA28001 - Page 63

VBA28001-R.3813.A
- A4 ・ D3100 -
#652
#121
#650
#138
TA-0026(6×11)
＝
Boss
＝
Guide

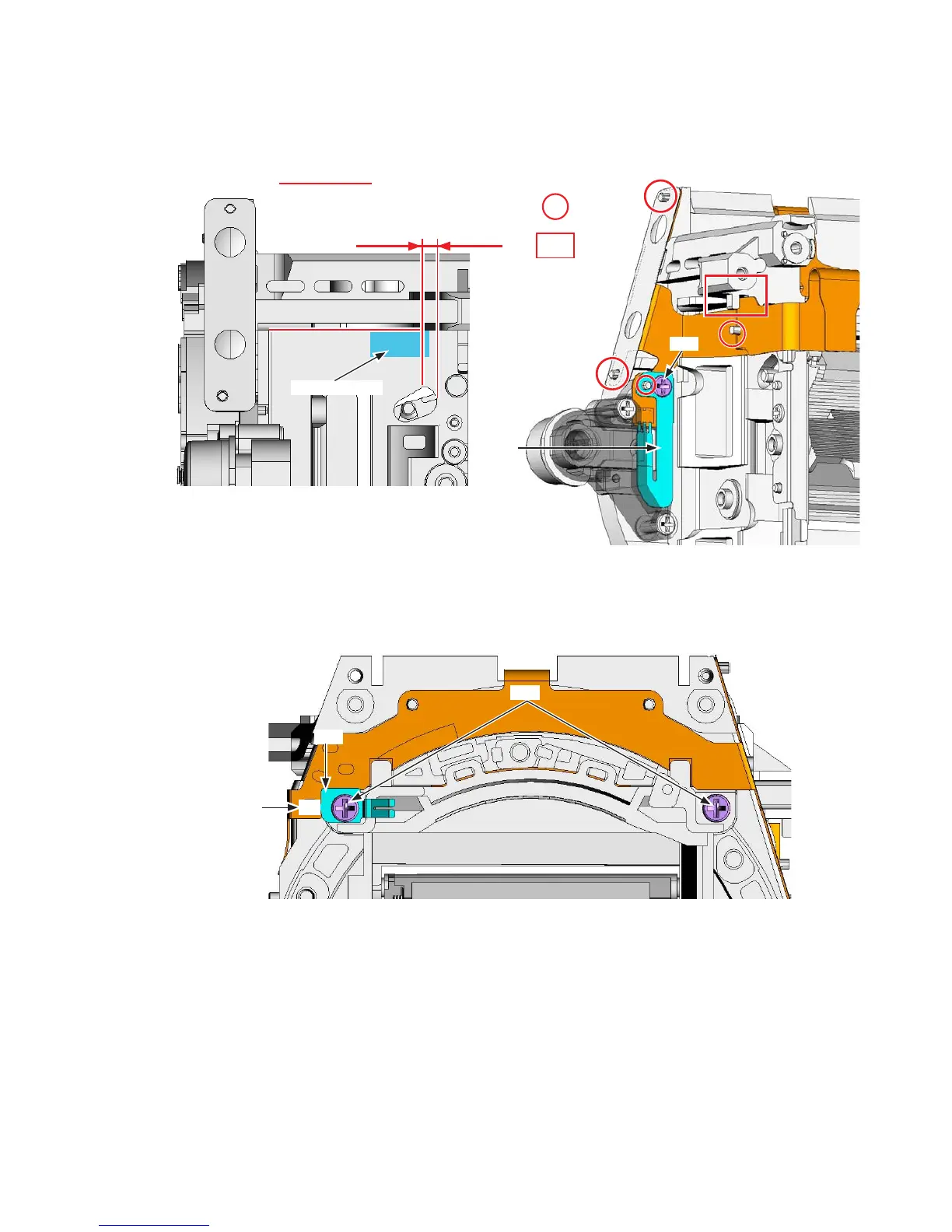

Attach the double-stick tape [TA-0026 (6×11)].
Mount the lens release SW (#121).
Tighten the screw (#652).
•
•
•
Mount the GND plate (#138), and tighten the two screws (#650).
Make solder bridge.
•
•
Make solder
bridge.
