Nikon D3100 VBA28001 - Page 72

VBA28001-R.3813.A
- A13 ・ D3100 -
#604
#2003
#612
#196
#612
#2004

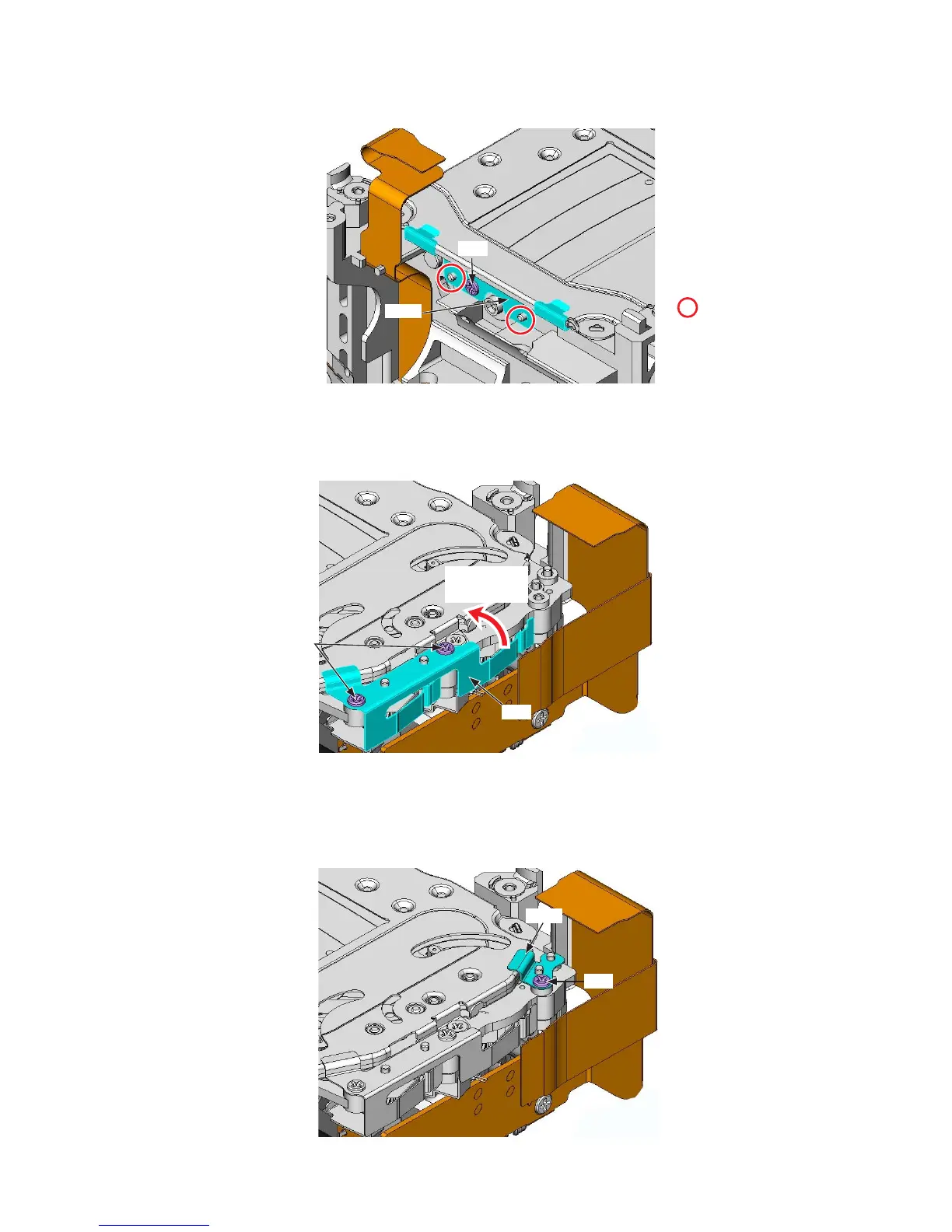

Mount the brake plate (#196), and tighten the two screws (#612).•
Mount the retainer plate (#2003).
Tighten the screw (#604).
•
•
＝
Boss
Direction for
positioning
Mount the retainer plate (#2004), and tighten the screw (#612).•
