Q0340
060411
VBA14001-R.3694.A

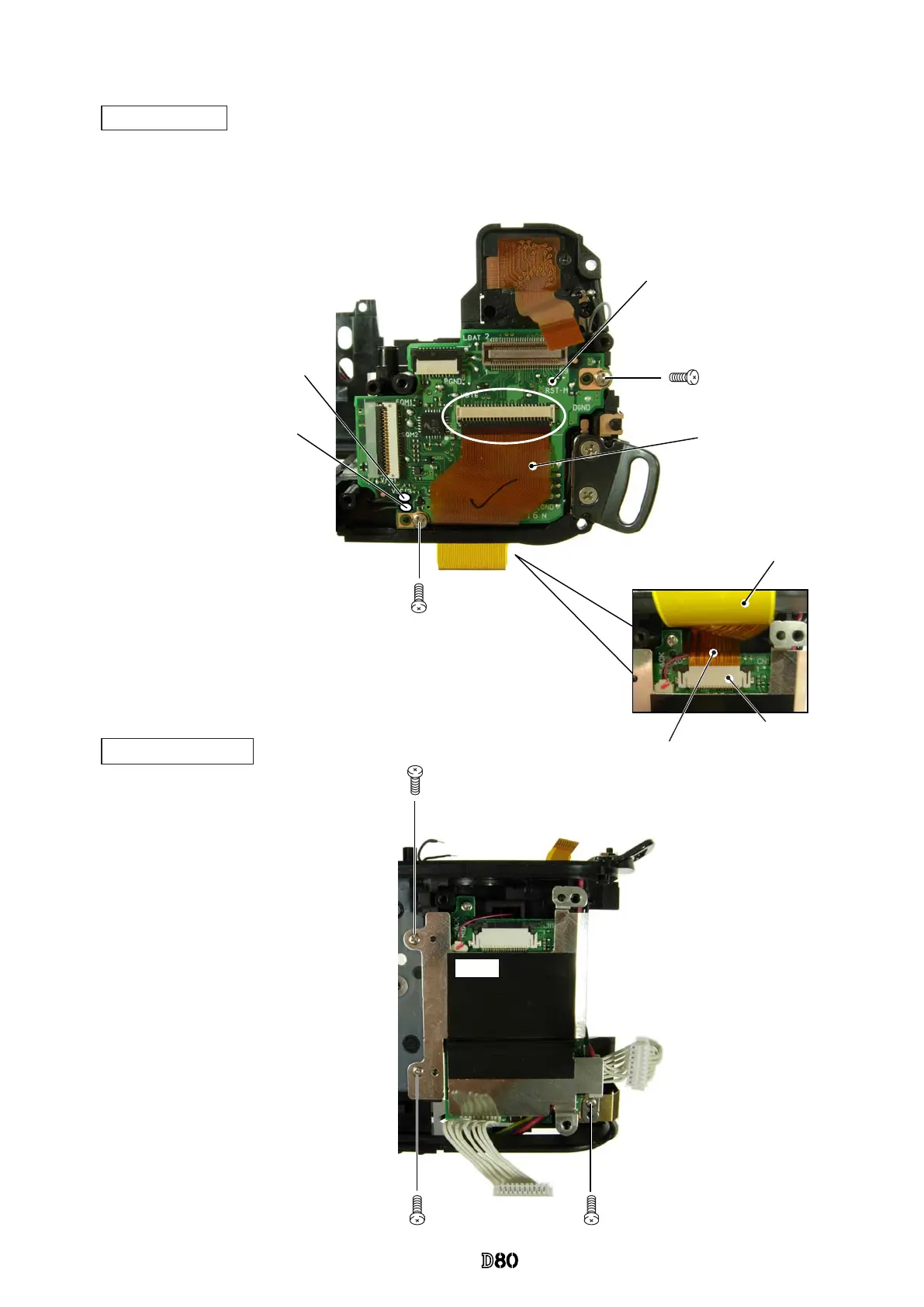

Main
PCB unit
#695×2
Main PCB unit (#B1001)
GND-plate C unit
#607×2
#610
#B109
Take out two screws (#607) and one
screw (#610). Then remove [#B109].
Remove connection-FPC (#1023).
Unsolder two wires of electronic buzzer unit.
Disconnect the FPC of the main PCB from the DC/DC connector.
Take out two screws
(
#695).
Remove the main PCB unit
(
#B1001).
Connection-FPC
(#1023)
Black
Electronic buzzer
Black
Electronic buzzer
3. Rear body
FPC of Main PCB
DC/DC connector
Connection-FPC (#1023)
