VBA14001-R.3694.A

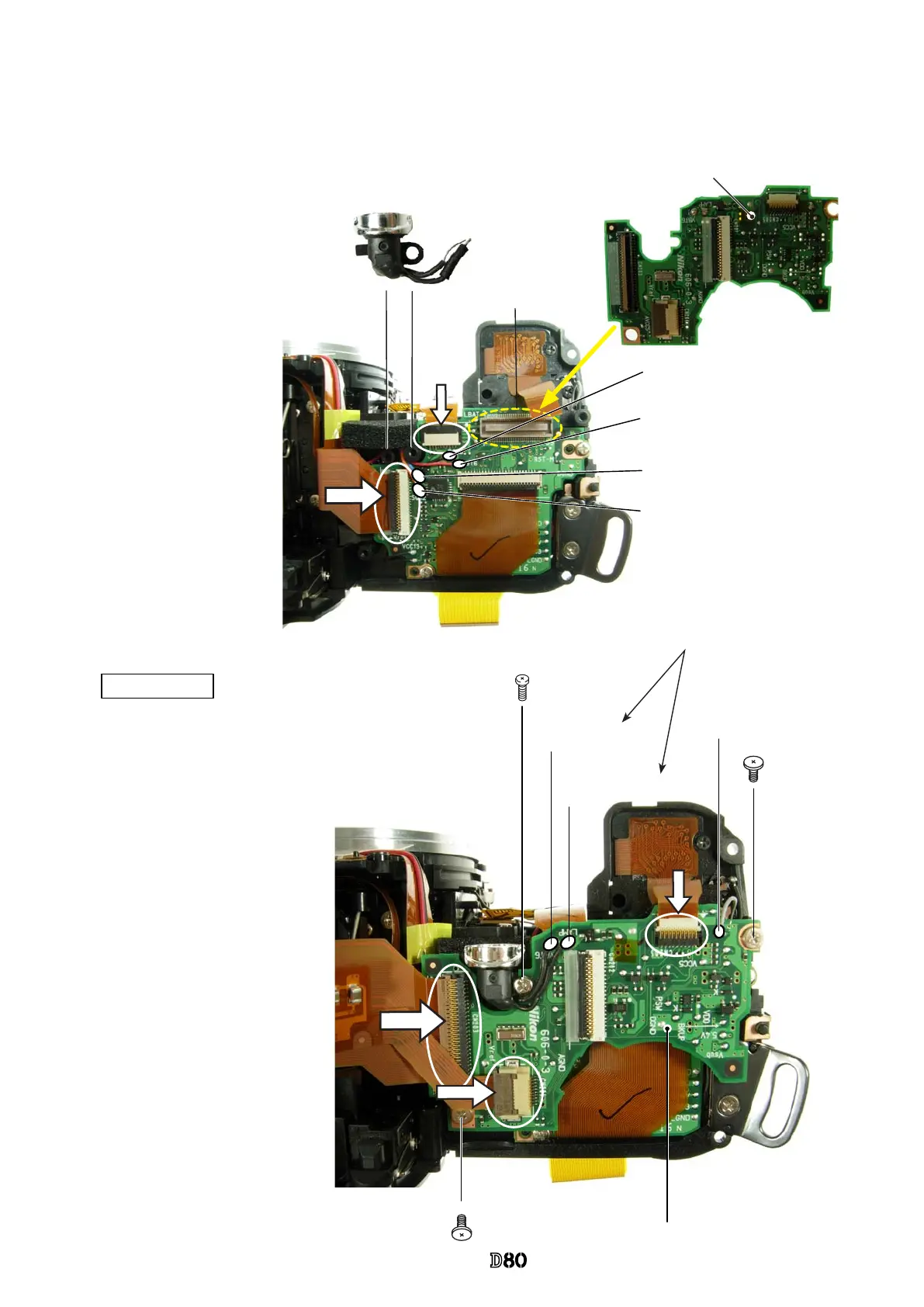

Sub-PCB unit
・
Tighten one screw (#623) and two screws (#640).
・
Solder three wires.
・
Connect three FPCs to each connector.
Sub-PCB unit (#1002)
#640
#0
#623
Black wire:
AF-assist illuminator
Black wire:
AF-assist illuminator
Gray:
FG/ID contacts spring
・
Solder four wires.
・
Connect the two FPCs to the connector.
・
Mount the AF-assist illuminator unit (#B325).
・
Mount the sub-PCB unit (#1002) by connecting to the main
PCB-connector.
Black wire:
Front body FPC unit
Blue wire:
SQ unit
Red wire:
Front body FPC unit
Orange wire:
SQ unit
Sub-PCB unit (#1002)
Main PCB connector
AF-assist illuminator #B325
Possible to solder other
way round
