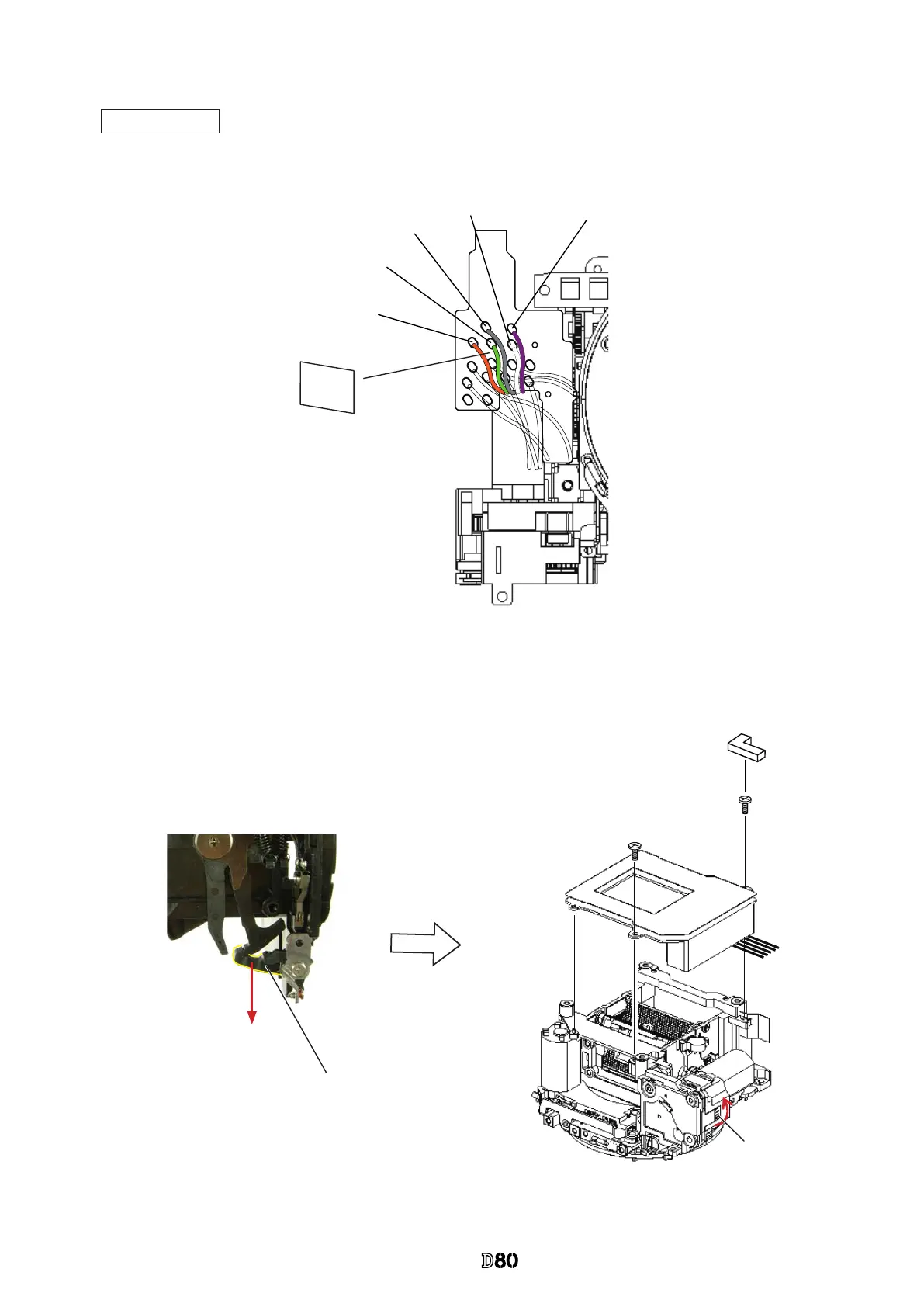

Shutter unit
・
Remove the tape [TA-0009(22×30)].
・
Unsolder the ve wires.
Orange
Green
White
Violet
Gray
・
Remove the sponge (#824).
・
Deactivate the preview latch lever. Then, rotate
"
A
"
in the direction of the arrow and raise the mirror.
・
Take out two screws (#638), and remove the shutter unit (#B31).
TA-0009(22×30)
#638×2
#B31
#824
A
Rotation direction
Deactivation
Preview latch lever
