Q0340
060411
VBA14001-R.3694.A

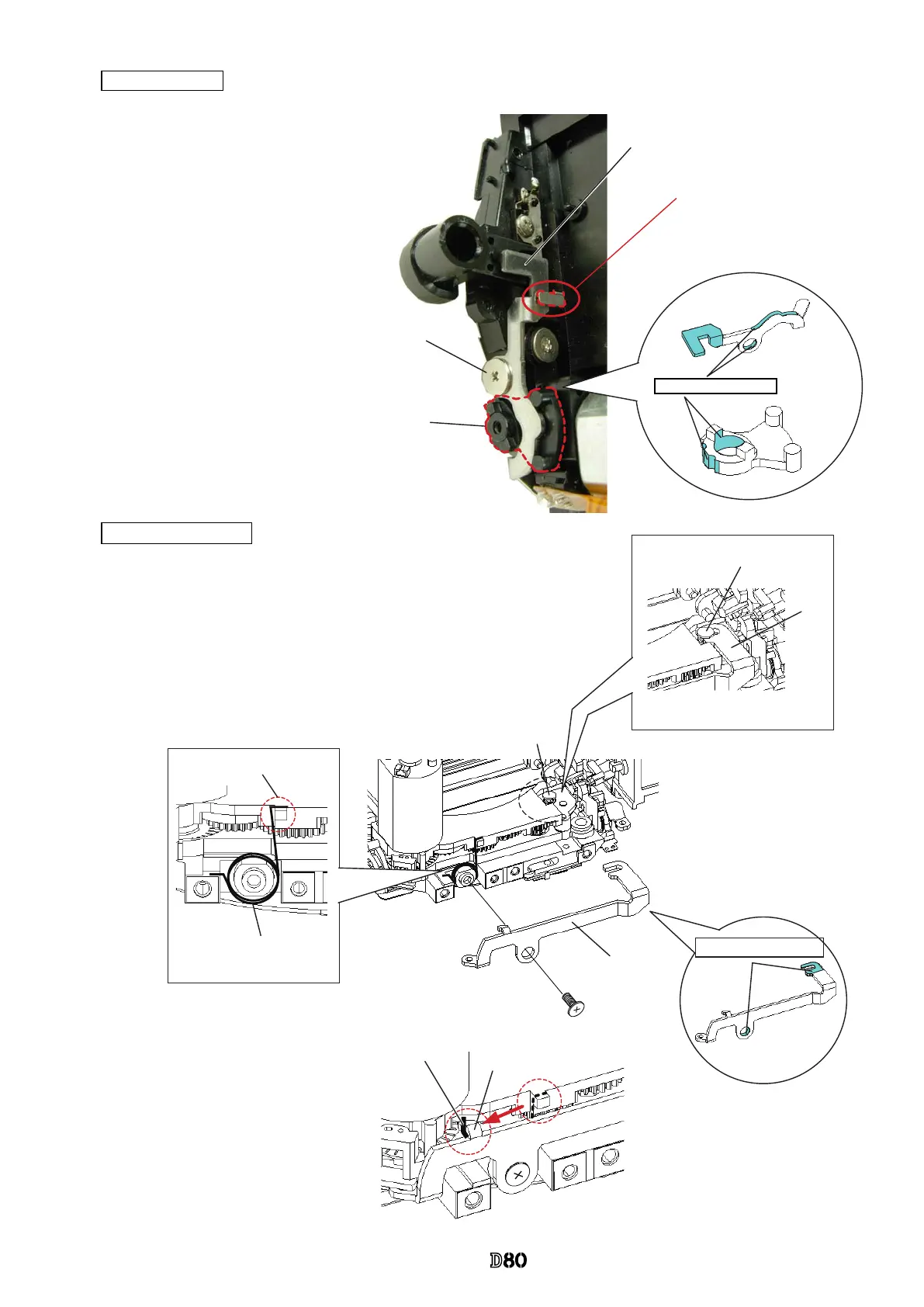

Assemble by the following order.
#
122→
#
191→
#
630
#191
#630
#122
Put the coupling shaft (#185).
Put the horizontal-lever spring (#195), and hook it to the hooking part.
Set the horizontal lever (#193) to be engaged in the groove of [#185].
Fix the horizontal lever (#193) with the screw (#630).
Note: Be careful NOT to bend contact
blade of the lens release SW.
Unhook [#195] and hook it to [#193] again.
#193
#185
#185
[#185] must be engaged.
#630
Horizontal-lever
spring (#195)
Hooking part
#195
#193
Grease: LEN317A
#193
[#191] comes under when assembled.
Grease: LEN317A
Vertical lever
Horizontal lever
