Q0340
060411
VBA14001-R.3694.A
#626×2
#B1010
#509
#508

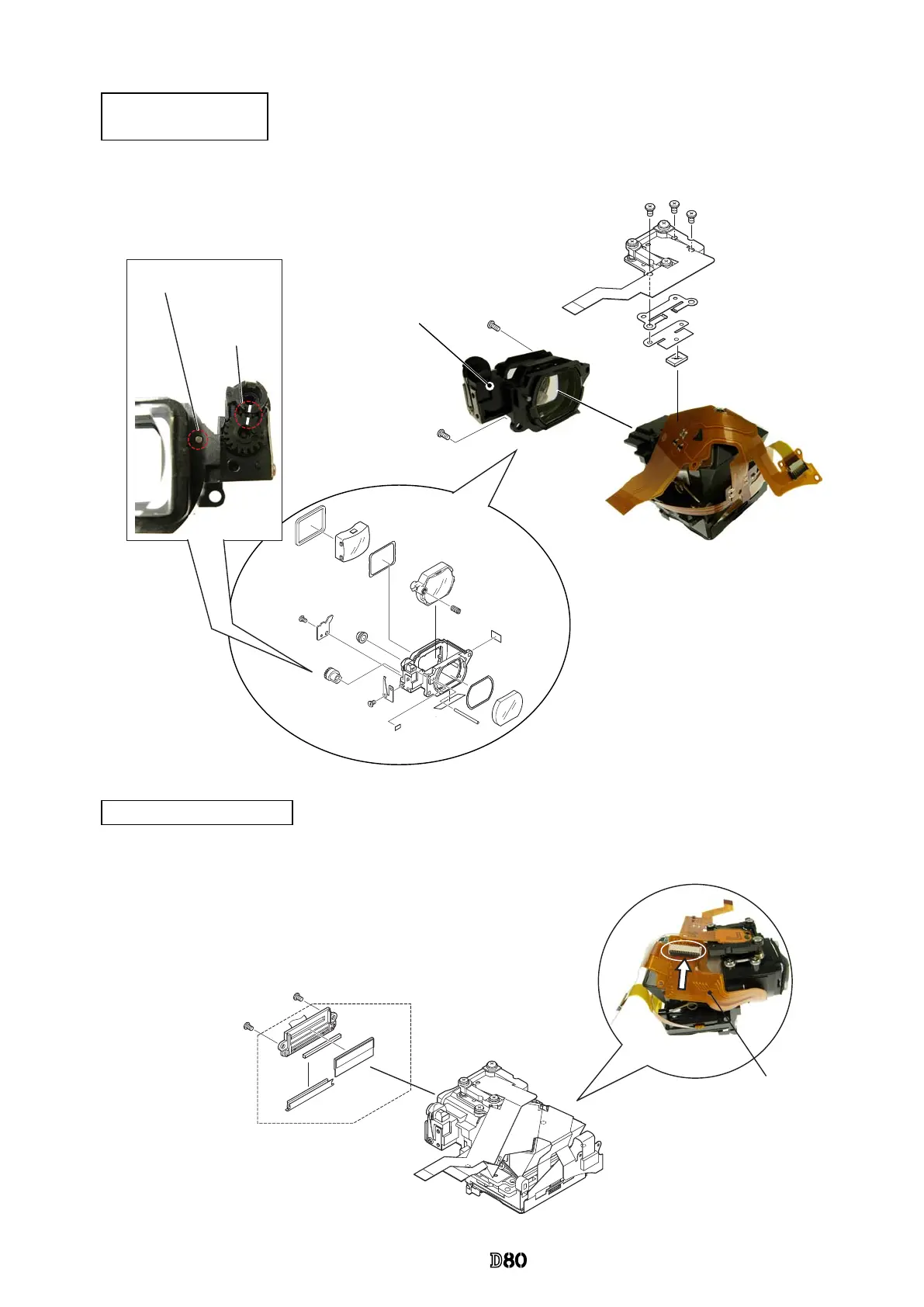

In-nder LCD FPC unit
Metering FPC unit

Eyepiece lens unit
Fix the eyepiece lens unit with two screws (#642).
Fix the metering FPC unit (#B11008) with three screws (#644).
#644×3
#522
#523
#11
#B11008
#642×2
Eyepiece lens unit
In-nder LCD FPC unit
#B261RP
Fix the in-nder LCD FPC unit (#B1010) with two screws (#626).
Connect the in-nder LCD FPC to the connector.
#1045
In-nder LCD FPC unit
Eyepiece lens unit
#7
#277
#B276
#274
#279
#275
#5
#272
#782
#290
#603
#284
#283
#278
#603
#286
#271
#774
[#272] must NOT stick out
of [#271].
Align the grooves
of [#278] and
[#283], and
assemble them.
