Nikon D80 VBA14001 - Page 53

- Ａ  ･ -
Q0340グラフィック用ロゴ
060411デザイン部伊藤
VBA14001-R.3694.A
・

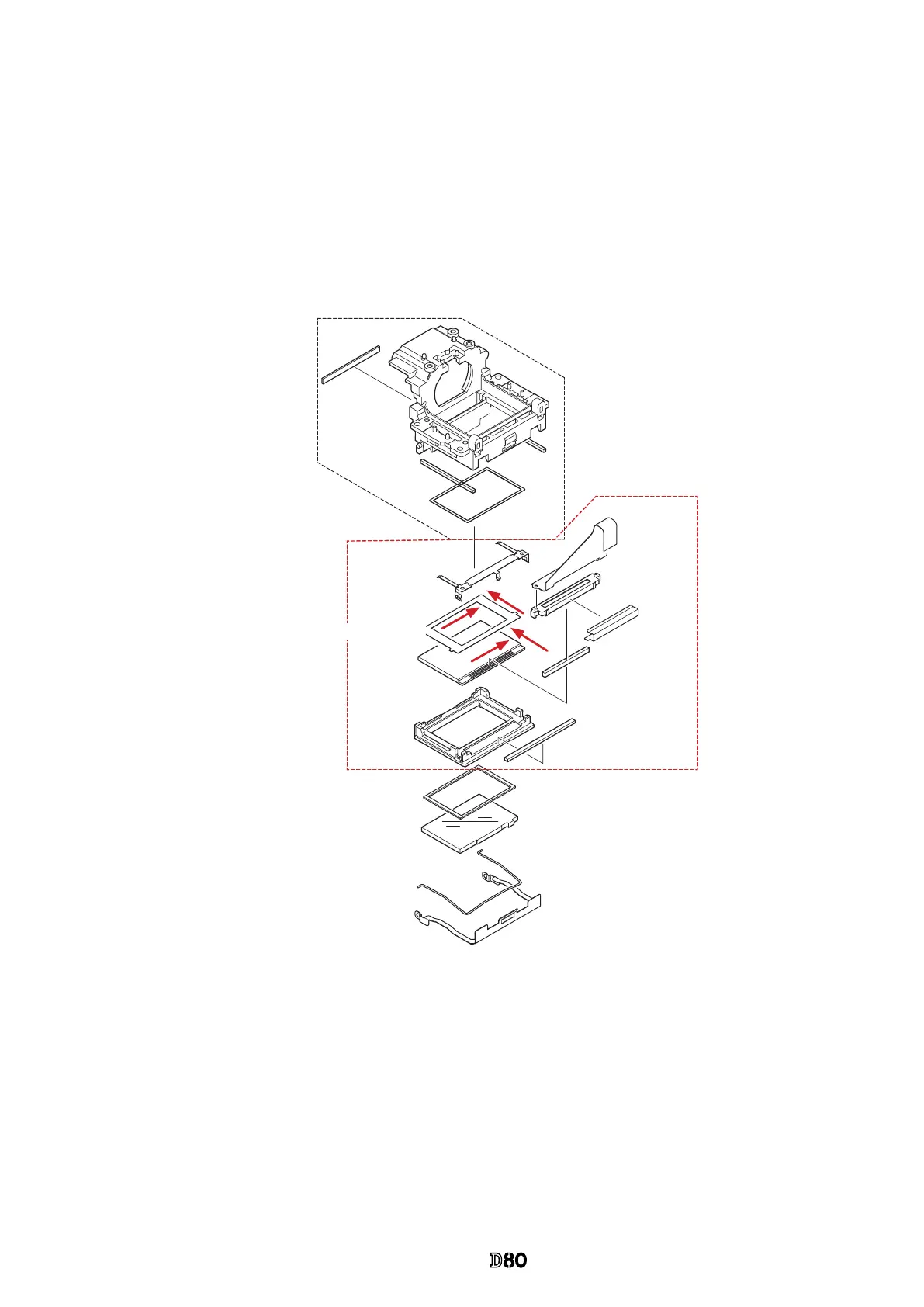

Attach [#511].
・
Assemble
※
and [#265].
・
Assemble [#266] and [#3], and hold them with [#265].
・
Connect the SI-FPC (#1022) to the connector of the penta FPC unit
(
#1021).
#1022
#529
#530
#501
#527
#266A,B×0
～
1
#3
#265
#511
#1046
#263
#534
#510
#507
#526×2
#777
#RP-B261
※
Direction for positioning
