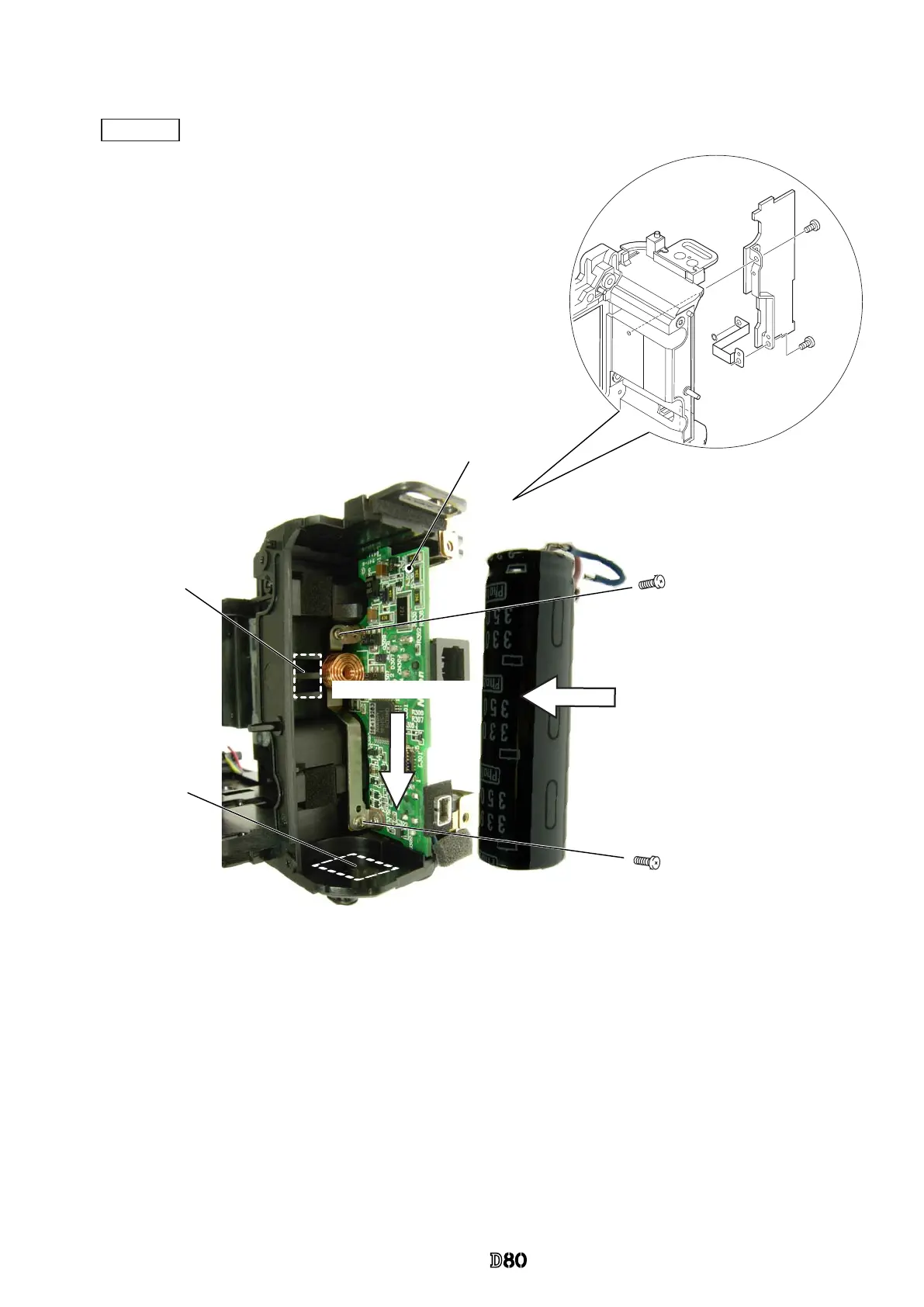

Attach the tape (#763), and put the SB/IF PCB GND plate (#75).
・
Mount the SB/IF PCB unit (#B1041).
・
Tighten two screws (#608).
・
Position the main condenser (#1043) in the direction of the
arrow, and x it with the adhesive double-coated tape (#753
and #754).
Main condenser
(#1043)
#608×2
#608×2
#75
SB/IF PCB GND plate
#763
SB/IF PCB unit
(#B1041)
#753
#754
SB/IF PCB unit
(#B1041)
Direction for positioning
