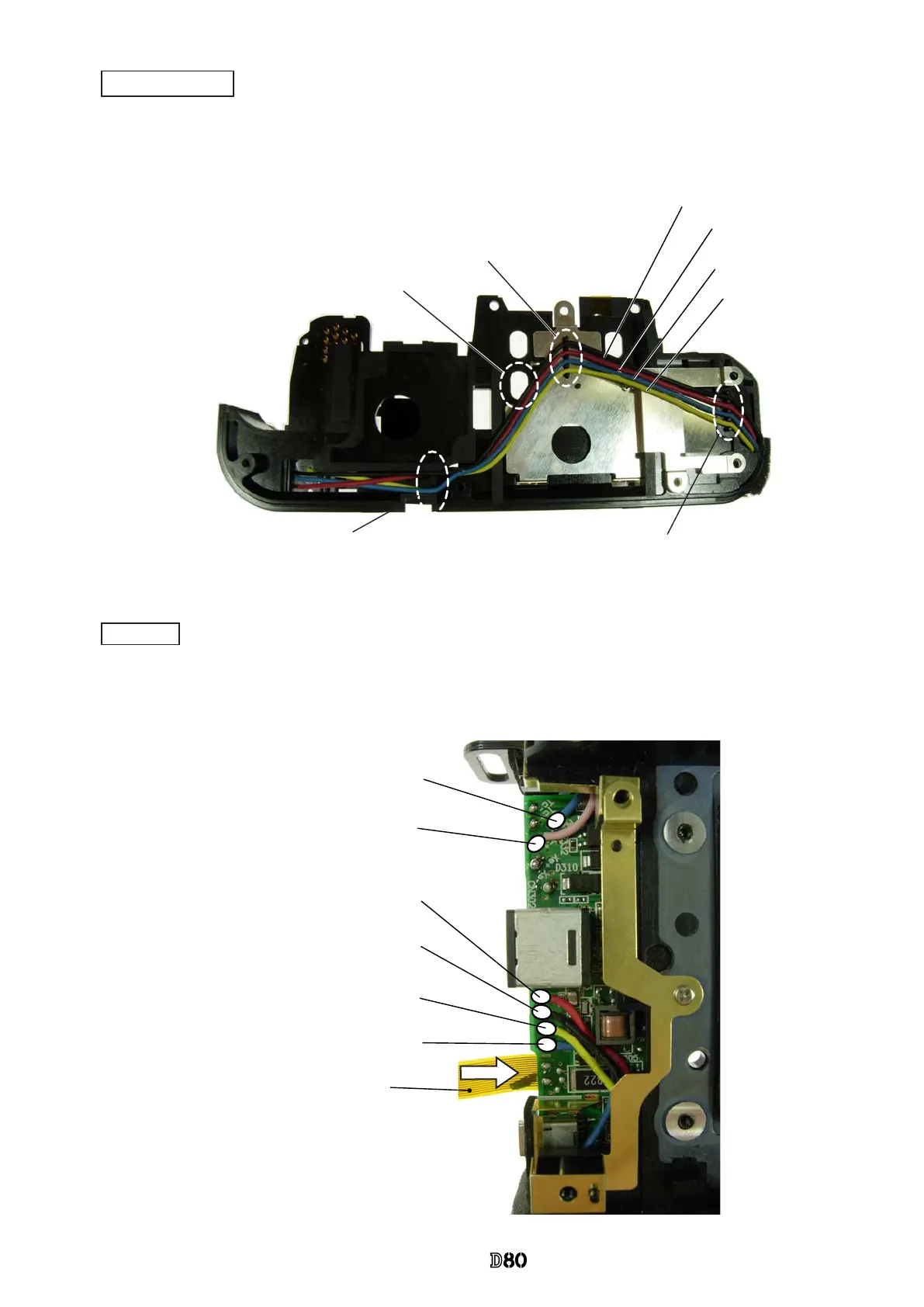

Arrange four wires among bosses.
Blue wire
Red wire
Black wire
Yellow wire
・
Solder six wires.
・
Connect the FPC to the connector.
Pink wire:
Main condenser
Red wire:
DC/DC PCB
Black wire:
DC/DC PCB
Yellow wire:
DC/DC PCB
Blue wire:
DC/DC PCB
FPC
Blue wire:
Main condenser
①
Put two wires each on either side of the rib/protrusion.
②
Put each wire between bosses.
③
Put each wire between bosses.
Wires must NOT be hooked here.
Bottom wires
SB PCB
