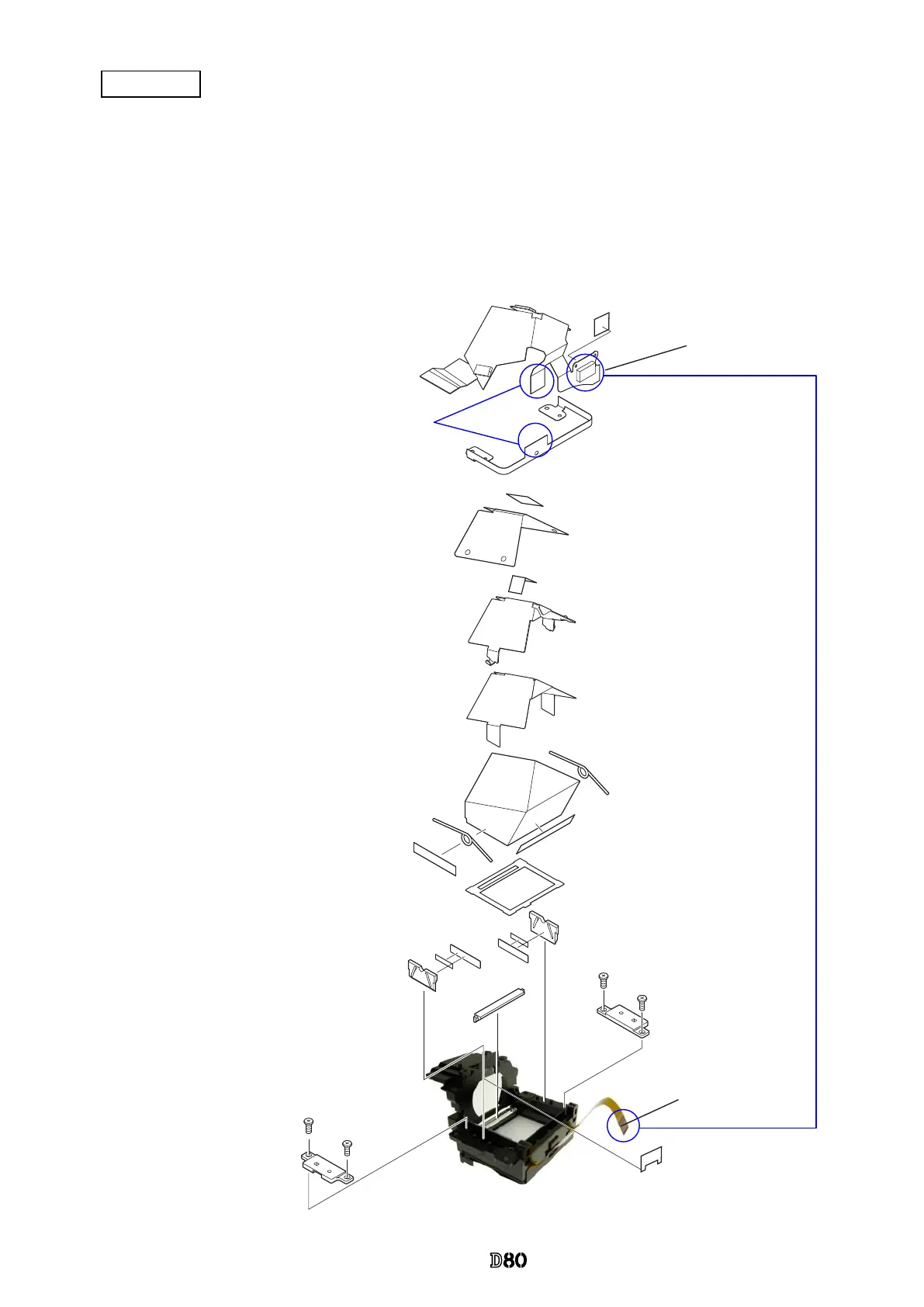

Attach [#8].
・
Attach the two [#503] with the two [#502], and assemble the two [#502].
・
Mount [#1021] and [#1027], which were jointed by soldering bridges, on [#RP-B261]. Then x them with the two [#532]
and tighten two screws (#610).
・
Mount the nder eld frame
(
#264).
・
Mount the prism (#4).
・
Attach [#298] and [#535].
・
Mount [#269], [#267], and [#270] in order.
・
Fix with the two penta prism-retaining springs (#268).
・
Attach [#1021].
#268×2
#839
#1021
#1027
#776
#270
#775
#267
#269
#298
#535,535B,C
#264
#502×2
#504×2
#503×2
#610×2
#532
#8
#521
#610×2
#532
#4
Soldering bridge
SI-FPC
#1022
Connector
Penta unit
#RP-B261
