Q0340
060411
VBA14001-R.3694.A

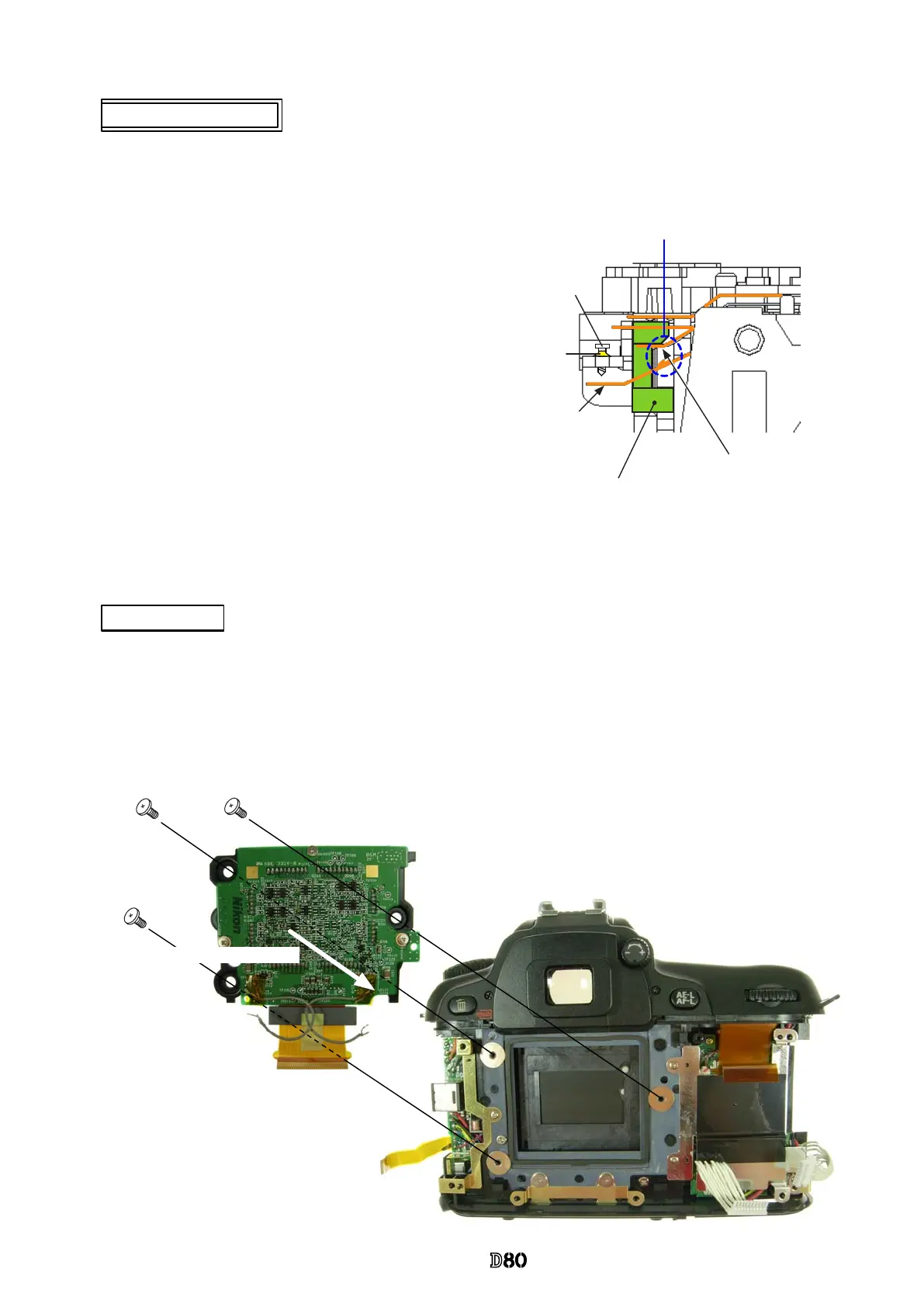

Mount the CCD/PCB unit (#B1032) and tighten three screws (#680).
CCD/PCB unit
#680×3
#B1032
Caution:
Some bodies have already washer(s) inserted on the
CCD/PCB unit mounting surface.
(ref. Page A26 for details)
Direction for positioning
Preview SW adjustment
Press the lever (#221) with a screwdriver, etc, from the bottom
of the body all the way to the end.
In the state of
, adjust by turning the screw (#652) so that
[#227] and "A" part slightly touch with each other.
Adhere the screw (#652) with the screwlock.
Caution:
Perform the work that follows with care, because the
preview SW segment can be easily bent.
#652
Apply Screwlock
#227
Press this portion of [#221]
all the way to the end.
Contact zone
