VBA14001-R.3694.A

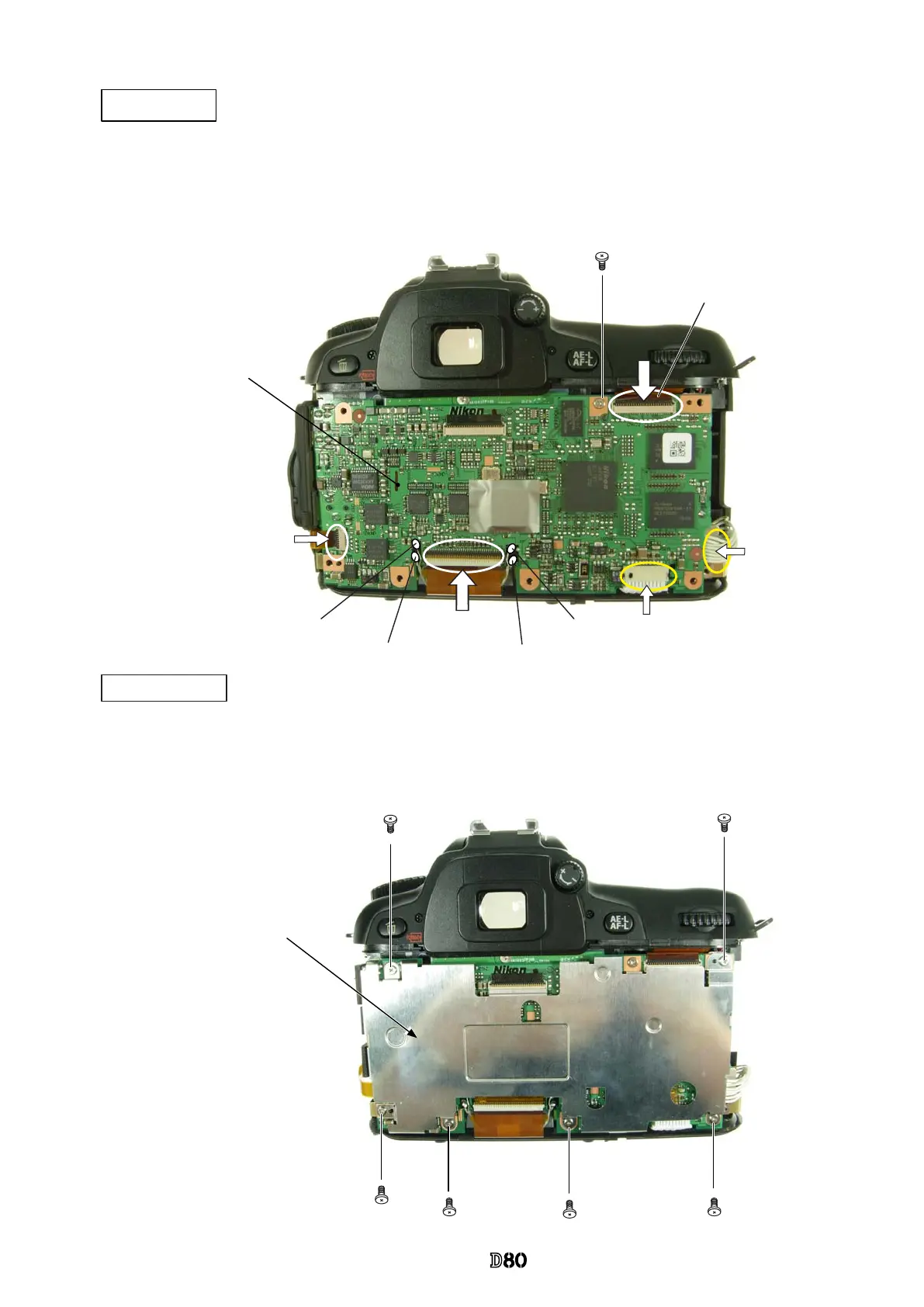

DG-PCB unit
・
Connect the FPC of
※
and two harnesses to each connector.
・
Mount the DG-PCB unit (#B1031), and tighten the screw (#683).
・
Solder the shield wires at four places.
・
Connect two FPCs to each connector.
#683
#B1031
Harness
Harness
DG shield plate
・
Mount the DG shield plate (#B78).
・
Tighten six screws (#683).
#683×6
#B78
CCD/PCB (core wire: coated)
CCD/PCB (ground) CCD/PCB (ground)
CCD/PCB(core wire: coated)
※
