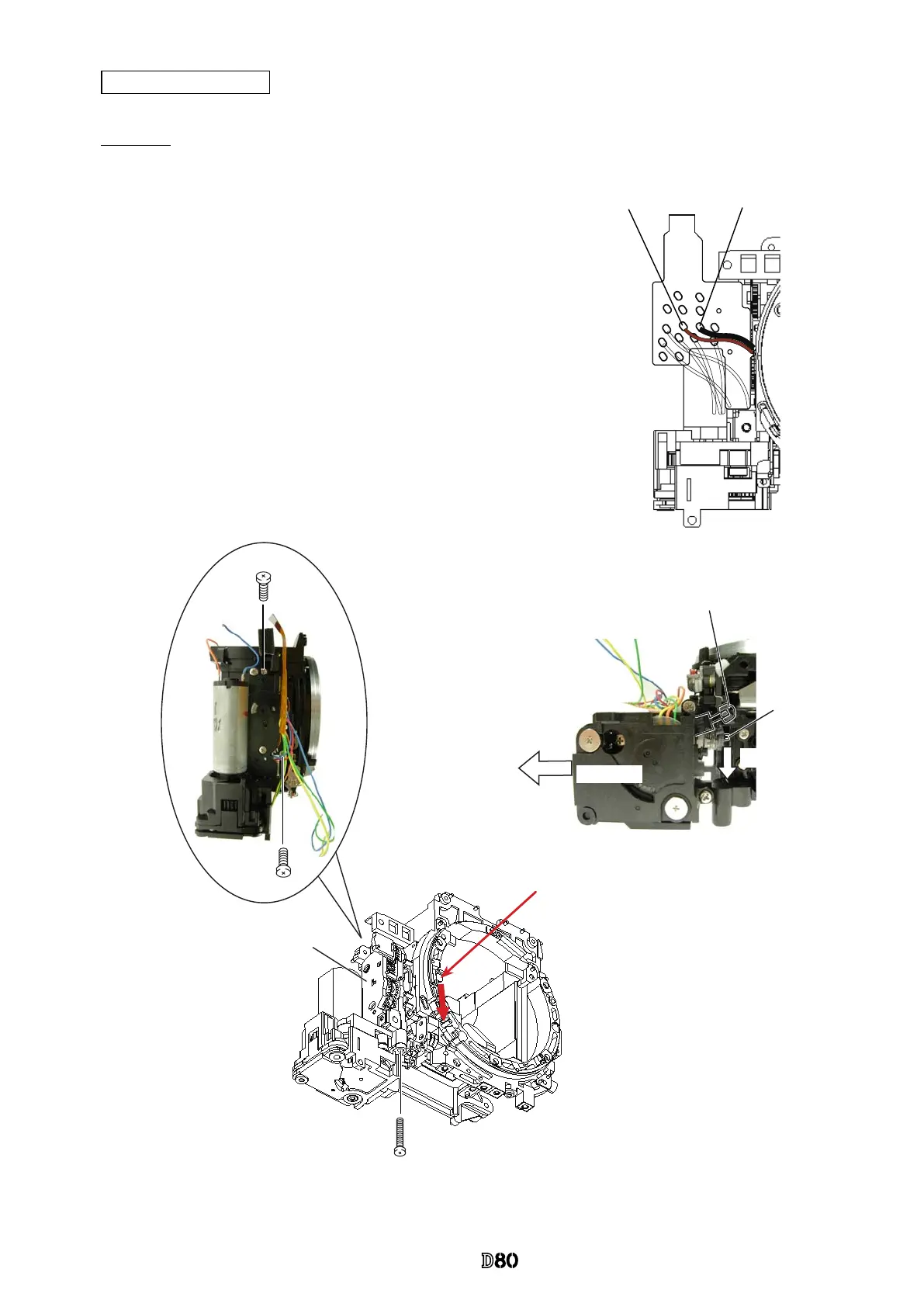

Procedure
1. Remove two wires.
2. Take out two screws (#624) and one screw (#698).
3. Press down the aperture lever with nger, and move the aperture
coupling lever (#207) the direction of arrow (
①
).
4. In state of 3., while letting the arm of [#RP-B241] escape, remove
the aperture control unit (#RP-B241) by pulling it in the direction
indicated by arrow (
②
).
Black:
Fmin SW
Brown:
Fmin SW
Arrow
①
Arrow
②
#207
Arm of [#RP-B241]
Aperture lever
#624
#624
#698
#RP-B241
Aperture control unit
