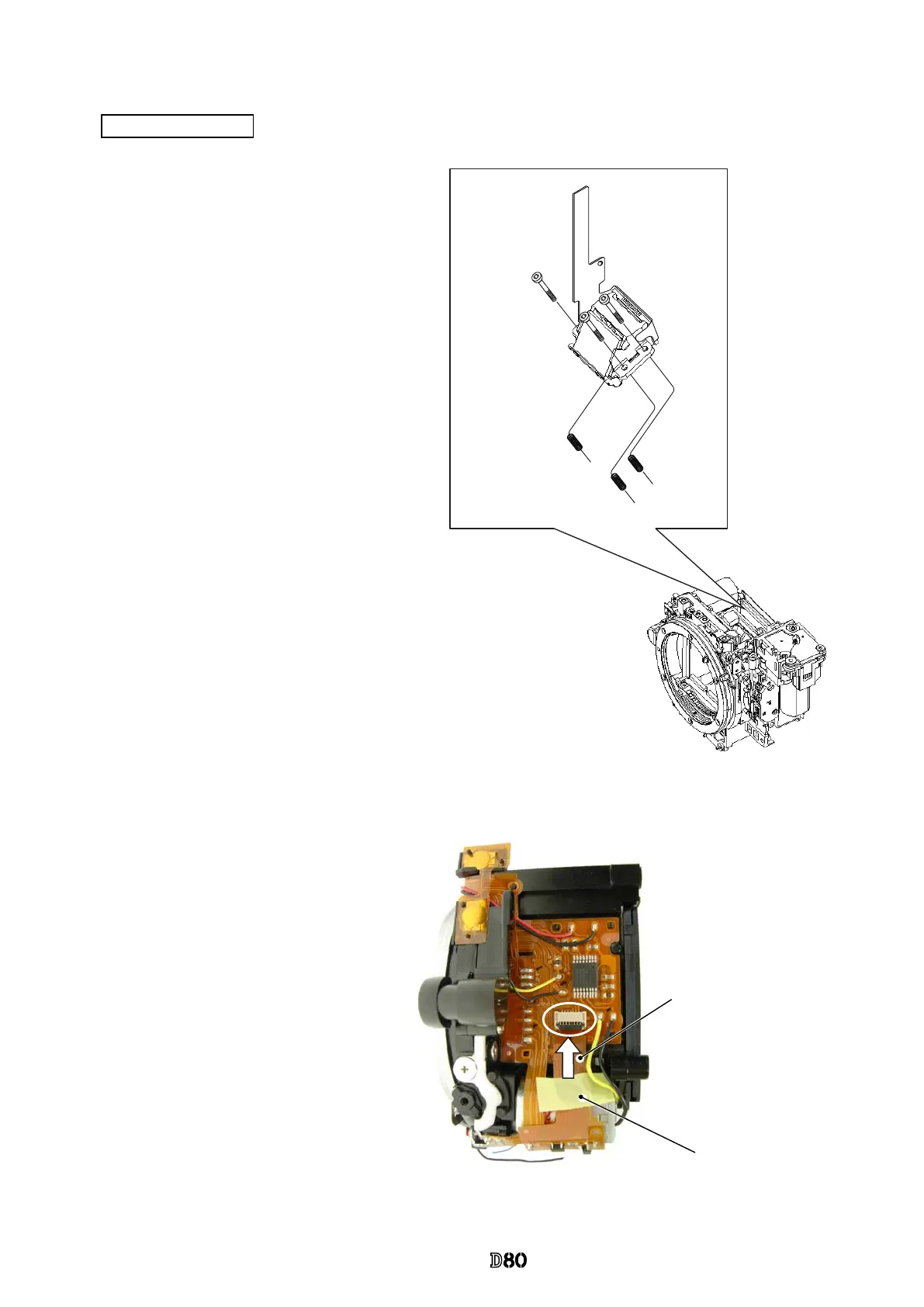

AF CCD FPC unit
Put three springs (#170).
Mount the AF CCD FPC unit (#B2163), and
turn the three screws (#173) softly all the
way to the end with the hexagonal wrench
(φ1.5mm), then give it approx. four turns
counterclockwise.
#734
AF CCD FPC
#173×3
#170×3
AF CCD FPC unit
#B2163
Connect the AF CCD FPC to the connector.
Attach the tape (#734).
