Nikon D80 VBA14001 - Mounting of Front Body on Rear Body

- Ａ  ･ -
Q0340グラフィック用ロゴ
060411デザイン部伊藤
VBA14001-R.3694.A
・

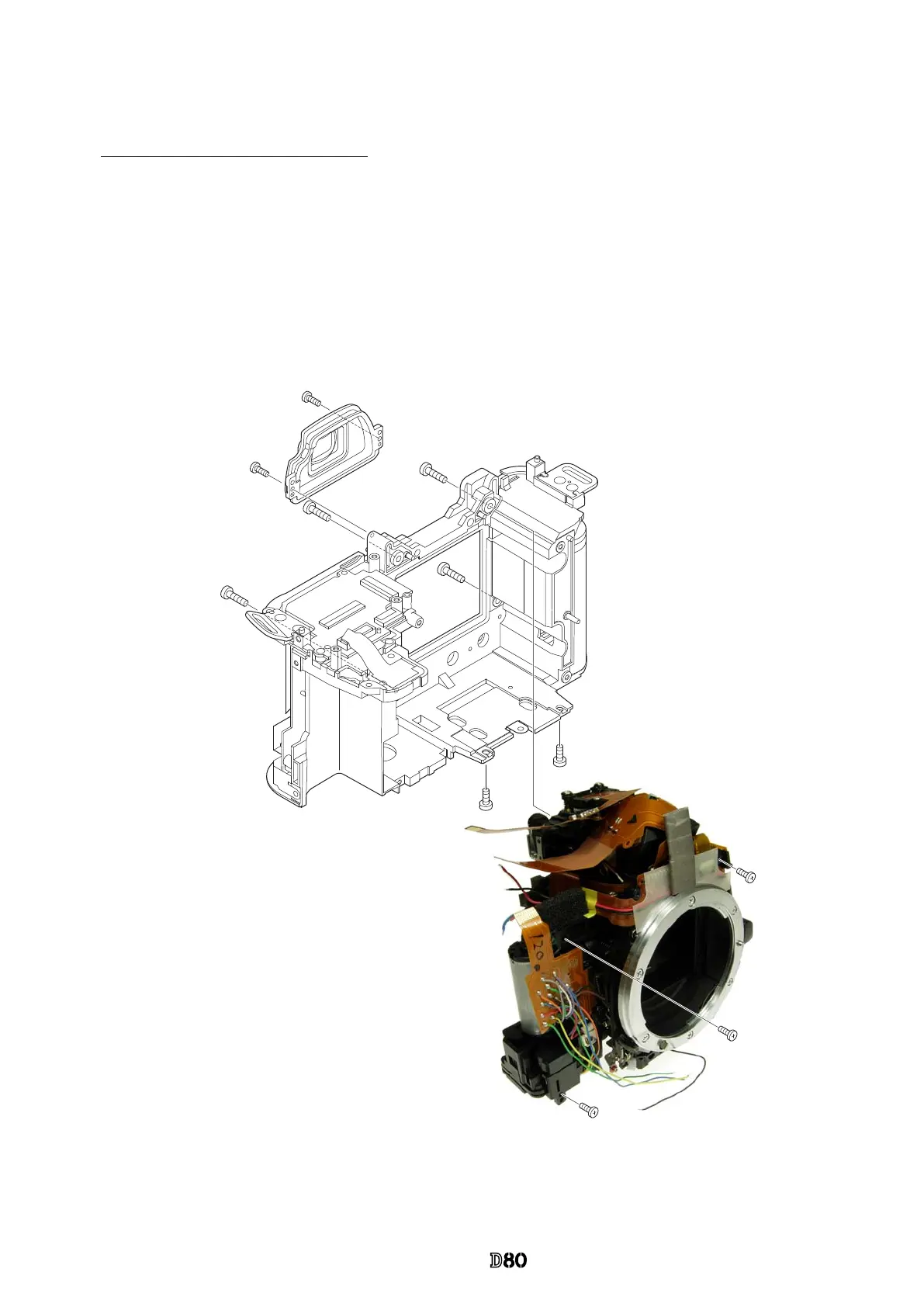

Mount the front body on the rear body.
・
Tighten the screw (#621) and two screws (#615) in the order from
①
to
③
.
・
Tighten four screws (#634) in the order from
①
to
④
.
・
Tighten two screws (#699) in the order from
①
to
②
.
・
Attach the eyepiece mold (#291) and x it with two screws (#615).
#634×4
#615×2
#621
#291
#615×2
①
②
③
④
②
①
③
②
#699×2
①
3. Mounting of Front body on Rear body
Mount the front body on the rear body
