VBA14001-R.3694.A

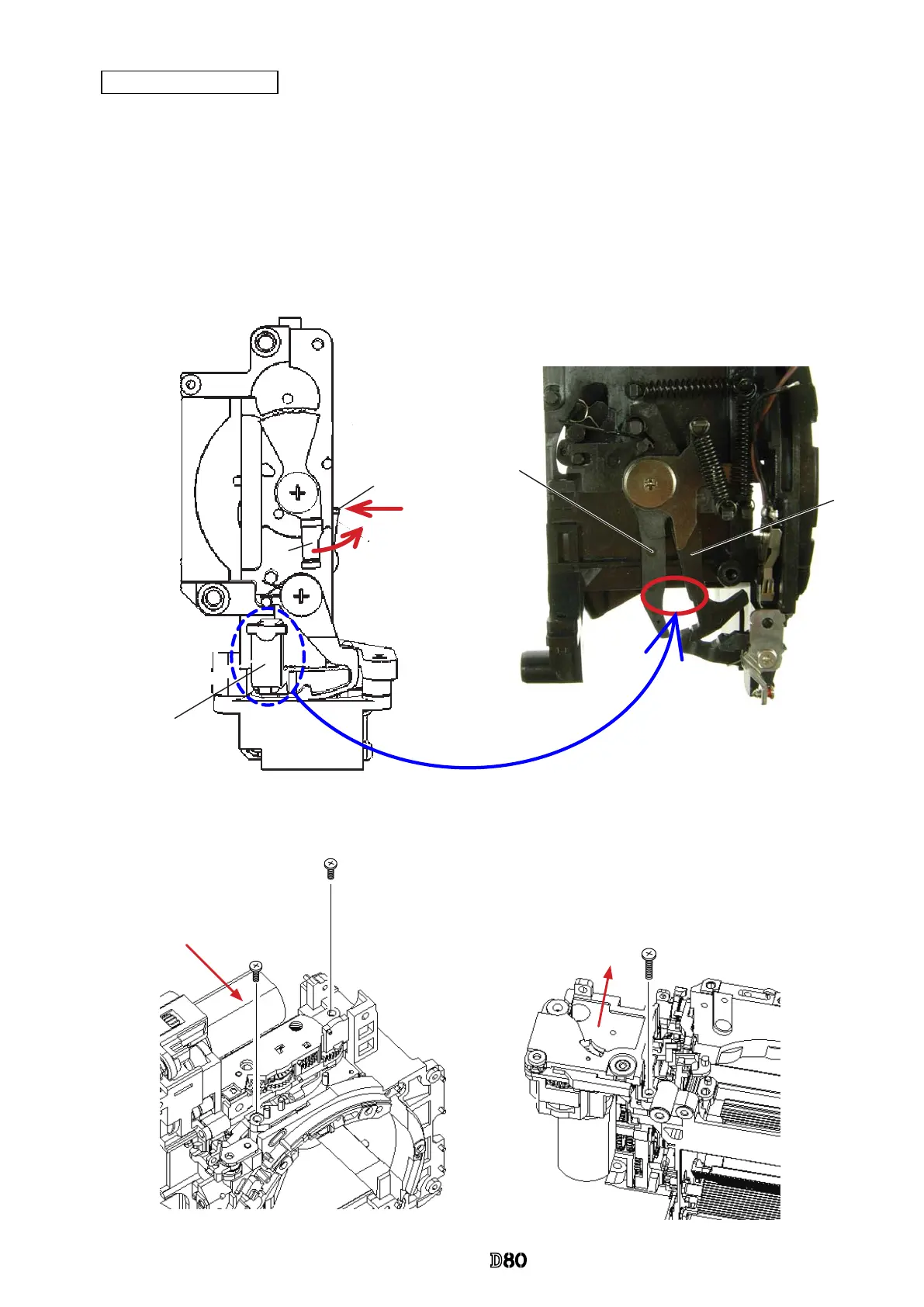

1. Turn the below [1] all the way to the end. Then press [2] in the direction to lock. (ref. Fig.
①
)
2. Insert the arm between [#207] and [#203]. (ref. Fig.
②
)
3. Tighten two screws (#624) and one screw (#698). (ref. Fig.
③
and
④）
Fig.
②
Note: Be careful not to bend contact blade of F-min SW.
#624×2
#698
#207
#203
Arm
Fig.
①
Fig.
③
Fig.
④
Direction for positioning
Direction for positioning
Aperture control unit
Aperture control unit
１
２
