Nikon D80 VBA14001 User Manual

- Ａ  ･ -
Q0340グラフィック用ロゴ
060411デザイン部伊藤
VBA14001-R.3694.A
・

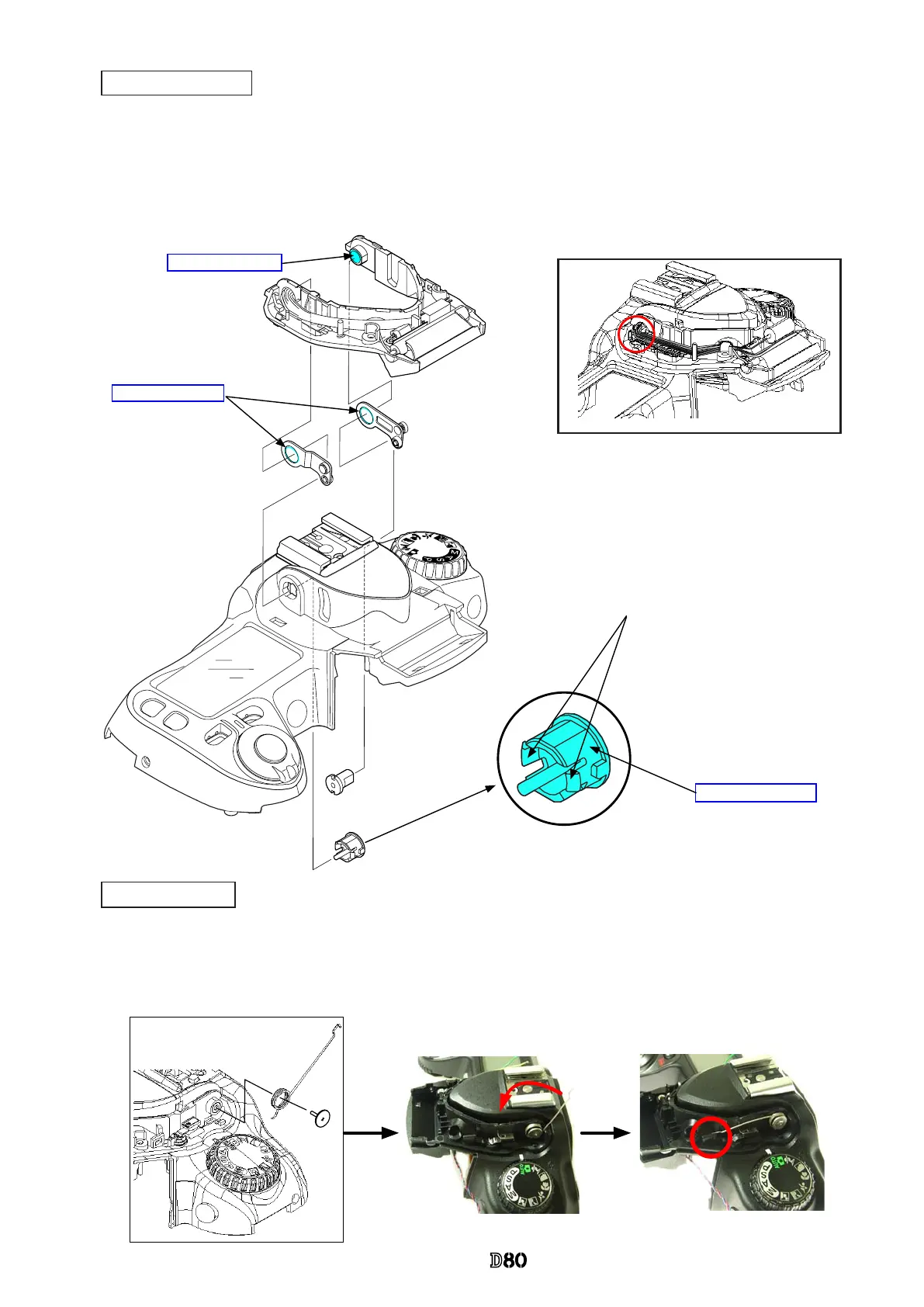

Put the ash-up spring (#305).
・
Fix it with the screw (#650).
・
Hook the ash-up spring (#305) by following the direction of the arrow.
#308
AUT
O
#306
#B341
#B342
#B2302
・
Attach [#B341] and [#B342].
・
Mount the SB lower case unit (#B2302) on the top cover.
・
Insert the SB-case rotate shaft (#306) in the top cover.
・
Insert the collar (#308) in the top cover, and x it by hooking at two places.
・
Pass each wire through the hole (#308).
Arrangement of built-in SB wires
Be careful so that the wires do NOT
touch the SB POP UP SW
.
#305
#650
2 hooks
Grease: MZ-800S
Grease: MZ-800S
Dipping
Grease: MZ-800S
SB lower case unit
Flash-up spring
