Adhesive Super X
Adhesive
Super X
Apply the adhesive only
on 1/4 periphery of the
pin on mount side.
Do NOT allow the adhesive to be
forced out on the head of #240.
・
NOTE: For undescribed tapes and sponges here
in"Assembly", refer to PARTS LIST.
Assembly/ Adjustment

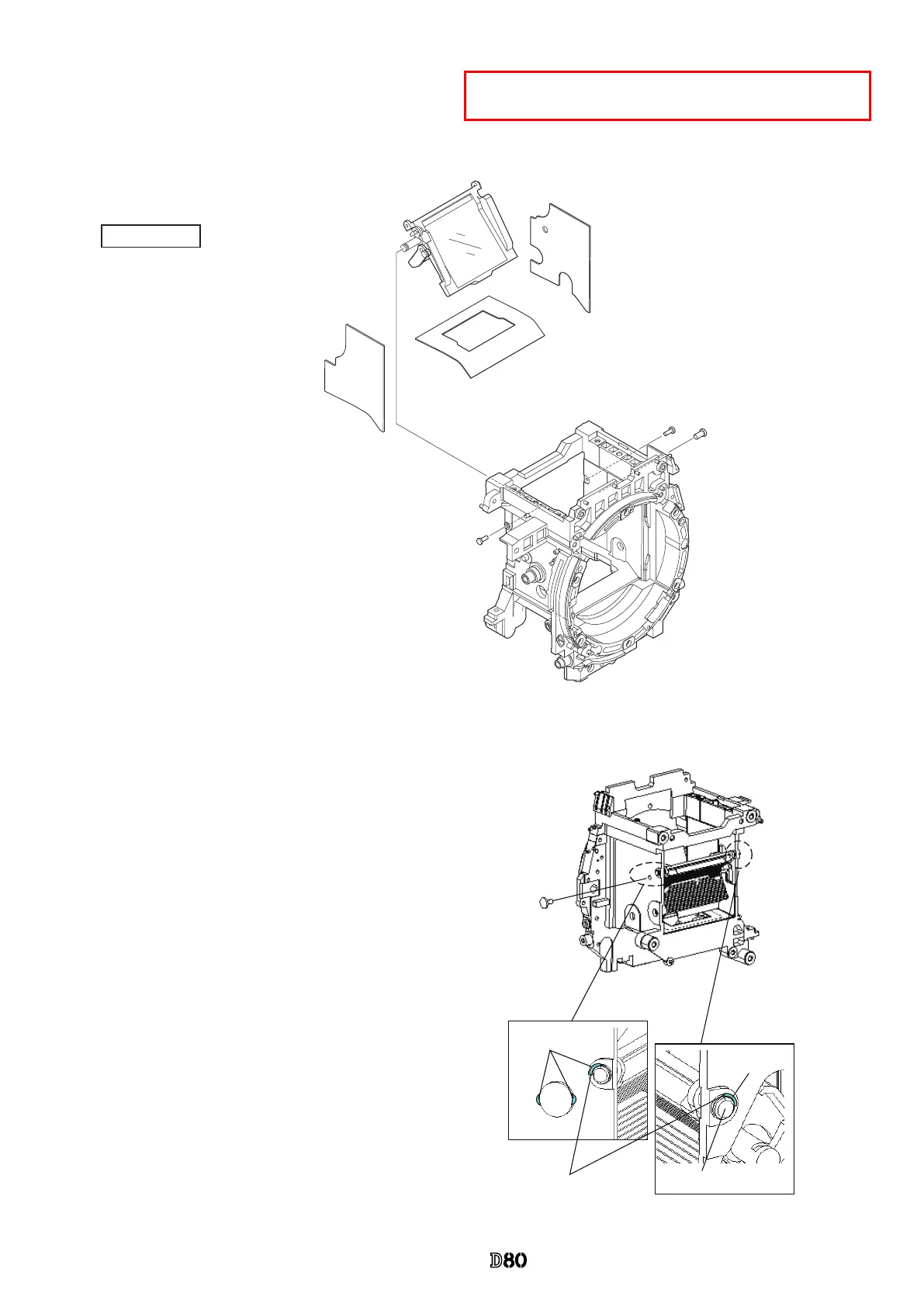

1. Front body
Mirror unit
・
With being mirror-up as shown right,
assemble the pins and apply the
adhesive (Super X) on each pin.
