- 0 -
Q0340
060411
VBA14001-R.3694.A

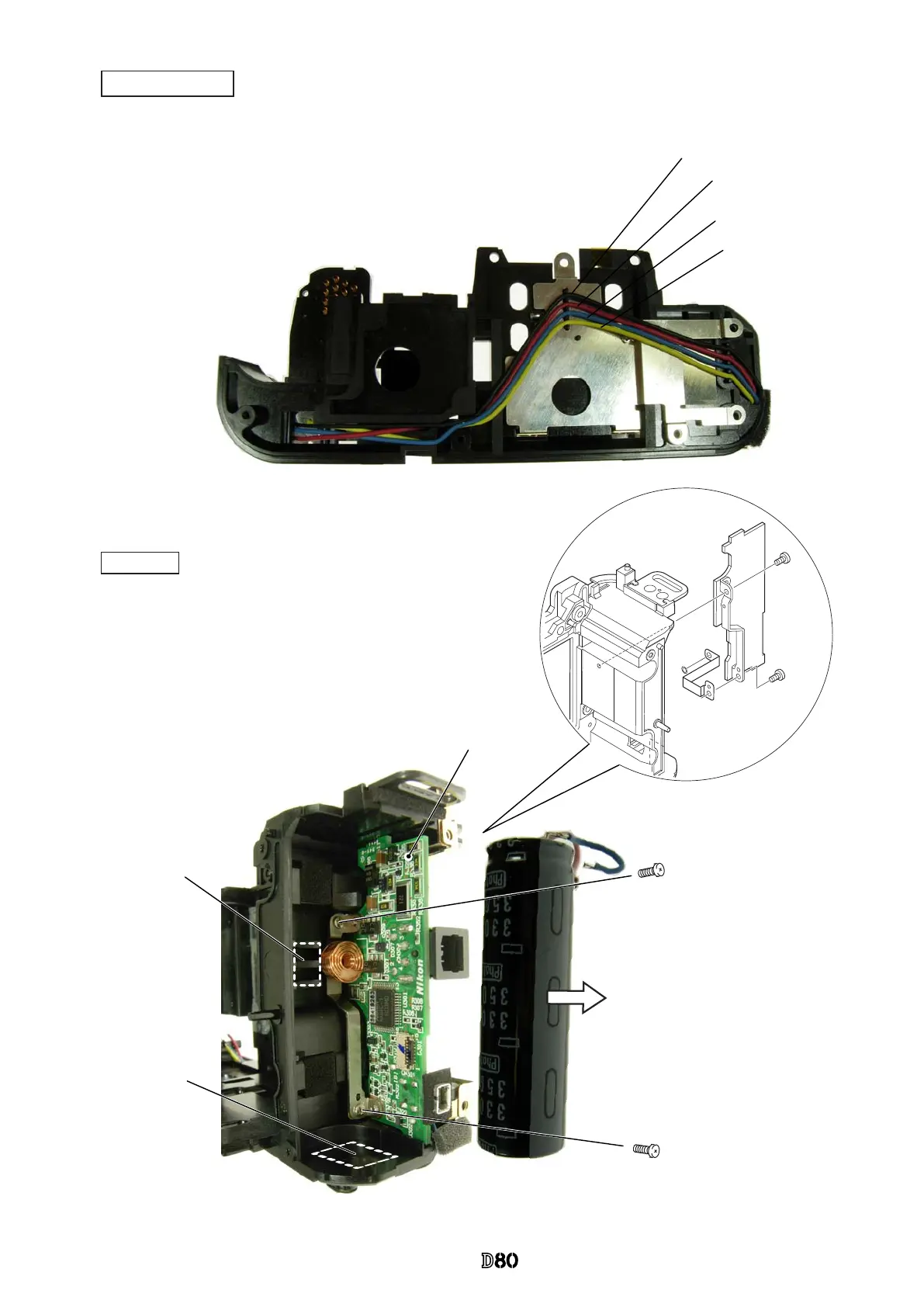

Detach the four wires from the bosses.
SB PCB
Remove the main condenser (#1043) from the adhesive
double-coated tape.
Take out two screws (#608).
Remove SB/IF-PCB unit (#B1041).
Remove SB/IF-PCB GND plate (#75).
Main condenser
(#1043)
#608×2
Blue
Red
Black
Yellow
#608×2
#763
SB/IF PCB unit
(#B1041)
Adhesive double-
coated tape (#753)
#754
SB/IF PCB unit
(#B1041)
#75
SB/IF PCB GND plate
Bottom wires
