Nikon D80 VBA14001 User Manual

- Ａ  ･ -
Q0340グラフィック用ロゴ
060411デザイン部伊藤
VBA14001-R.3694.A

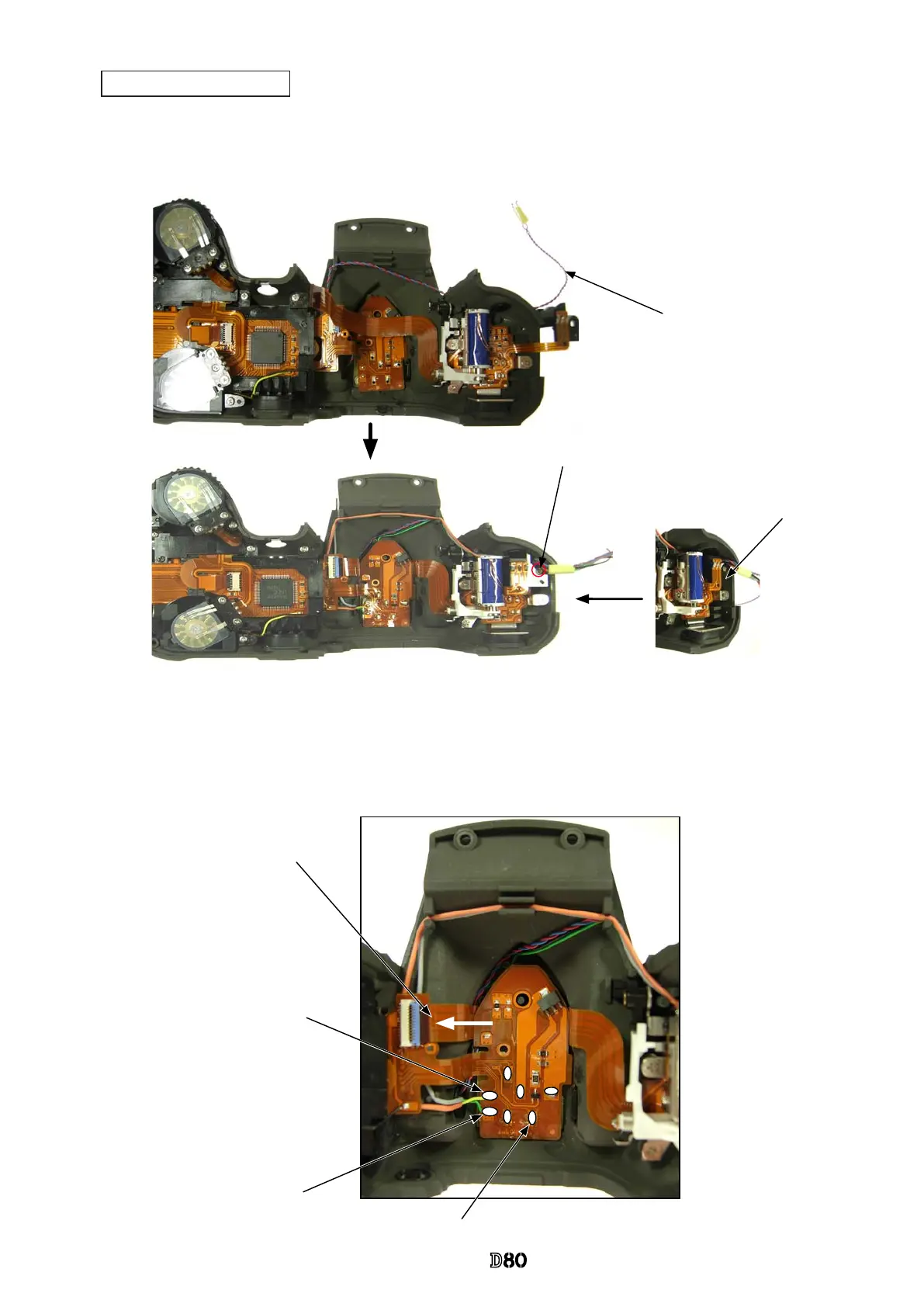

Green:
SB pop-up SW wire
Accessory shoe contacts×5
Yellow:
SB pop-up SW wire
M/D FPC
Bundled wires
#B1056
#607
・
Arrange the bundled wires.
・
Mount the remote control unit (#B1056).
・
Tighten the screw (#607).
・
Solder the accessory shoe contacts at ve places.
・
Solder the two SB pop-up SW wires.
・
M/D FPC to the connector.
Wiring / Top cover FPC

Nikon D80 VBA14001 Specifications

General

Brand	Nikon
Model	D80 VBA14001
Category	Digital Camera
Language	English
