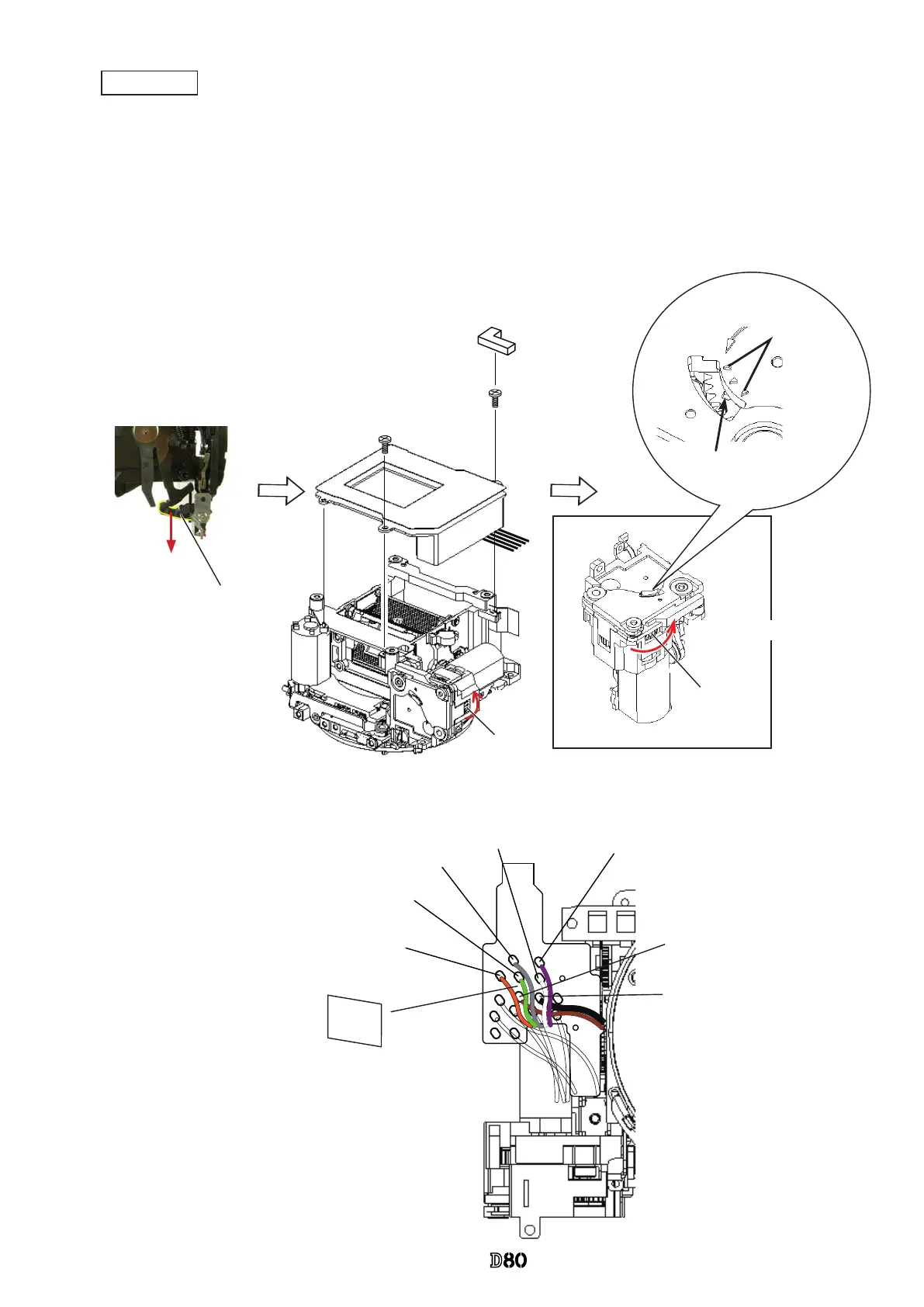

Deactivate the preview latch lever. Rotate "A" in the direction of the arrow, and raise the mirror.
・
Mount the shutter unit (#B31). Tighten two screws (#638) in the order from
①
to
②
.
・
Attach the sponge (#824).
・
Rotate "A" in the direction of the arrow, and let the mirror down.
・
Rotate "A" as shown so that the index falls within the range of the initial position.
・
Solder seven wires.
・
Attach the tape [TA-0009 (22×30)].
#638×2
#B31
#824
①
②
Gray wire:
Shutter
TA-0009(22×30)
White wire:
Shutter
Violet wire:
Shutter
Green wire:
Shutter
Orange wire:
Shutter
Rotation direction
Range of initial
position
Index
A
Black wire:
Fmin SW
Brown wire:
Fmin SW
Deactivation
Preview latch lever
A
Shutter unit
Rotation
direction
