Nikon D80 VBA14001 - Covers Mounting; Gap Adjustment of SB Lighting Unit

- Ａ  ･ -
Q0340グラフィック用ロゴ
060411デザイン部伊藤
VBA14001-R.3694.A
・

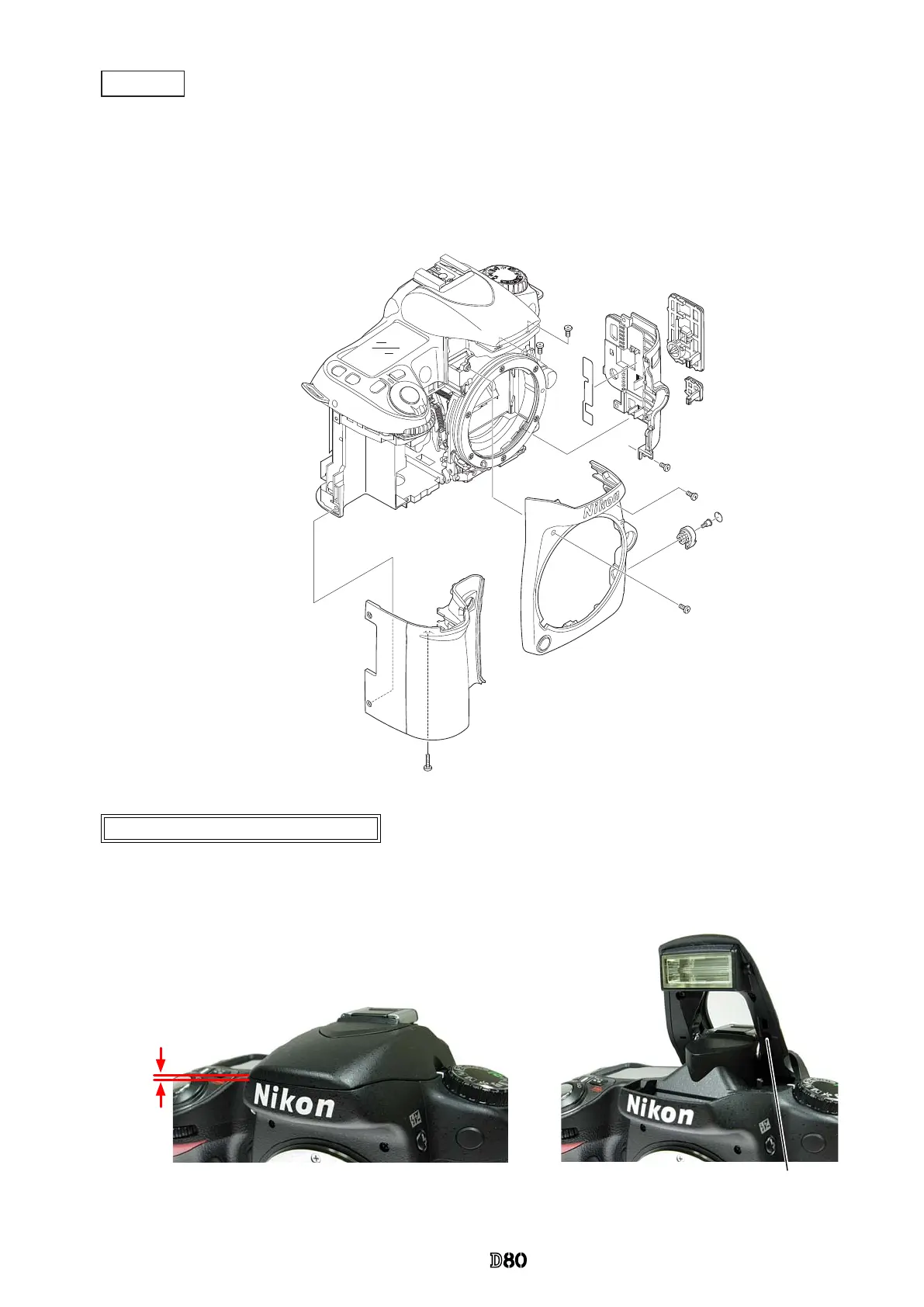

Mount [#28] and tighten the screw (#638).
・
Mount [#B26] and tighten the screw (#618).
・
Mount [#B24], and tighten four screws (#691).
・
Put the AM change lever (#121), and tighten the screw (#659) and attach [#124].
AUT
O
#691×2
#638
#28
#121
#659
#124
#691×2
#618
#B24
#B26
#71
#70
#755
Covers
Gap adjustment of SB lighting unit
・
In case it is out of standard, pop the SB unit up and
make an adjustment by turning the adjusting dial with
Hexagonal wrench.
Standard
：
0
～
0.5mm
Adjusting dial
