TFT-PCB connection FPC
・
Mount the rear cover, and x it with two screws (#657) and two screws (#656).
#657×2
Rear cover
#656×2
Rear cover
・

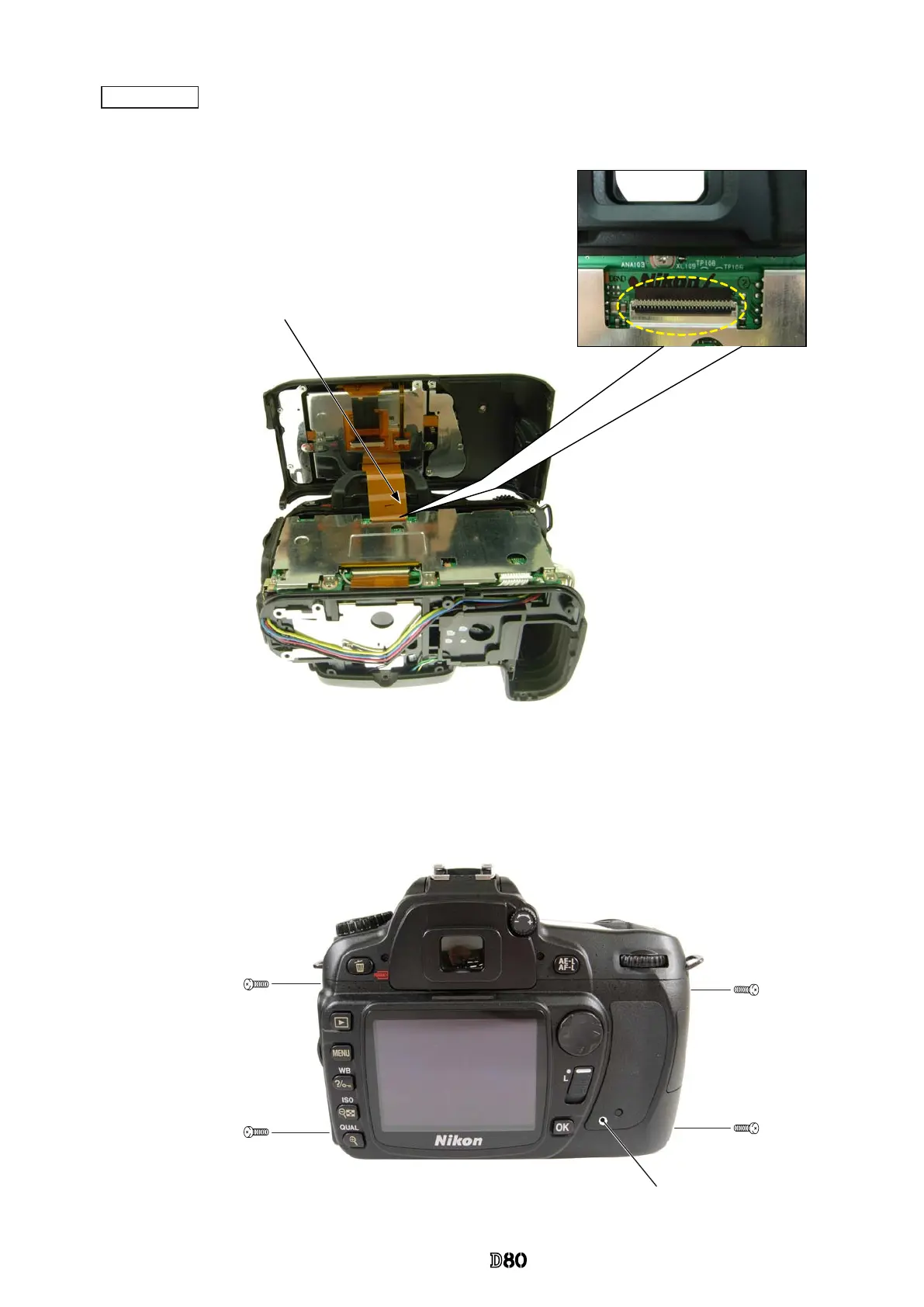

Connect TFT-PCB connection FPC to the connector of the DG-PCB.
