Chapter 15 Performing Direct Printing
201
Connecting to
PC, Printer, and
Network
15.1.2
Connecting the DS-L3 to a Printer with a USB Cable
Use a commercially available USB 2.0 cable (AB type) for connection between DS-L3 and a printer. (This type of cable may
be supplied with the printer.)
Note on connecting a USB cable
Be sure to connect a USB cable while the DS-L3 is turned off.
1 Confirm that the DS-L3 power is shut off.
2 Connect a USB 2.0 cable (AB type) between the printer’s USB connector and the USB (D) connector of the
DS-L3.

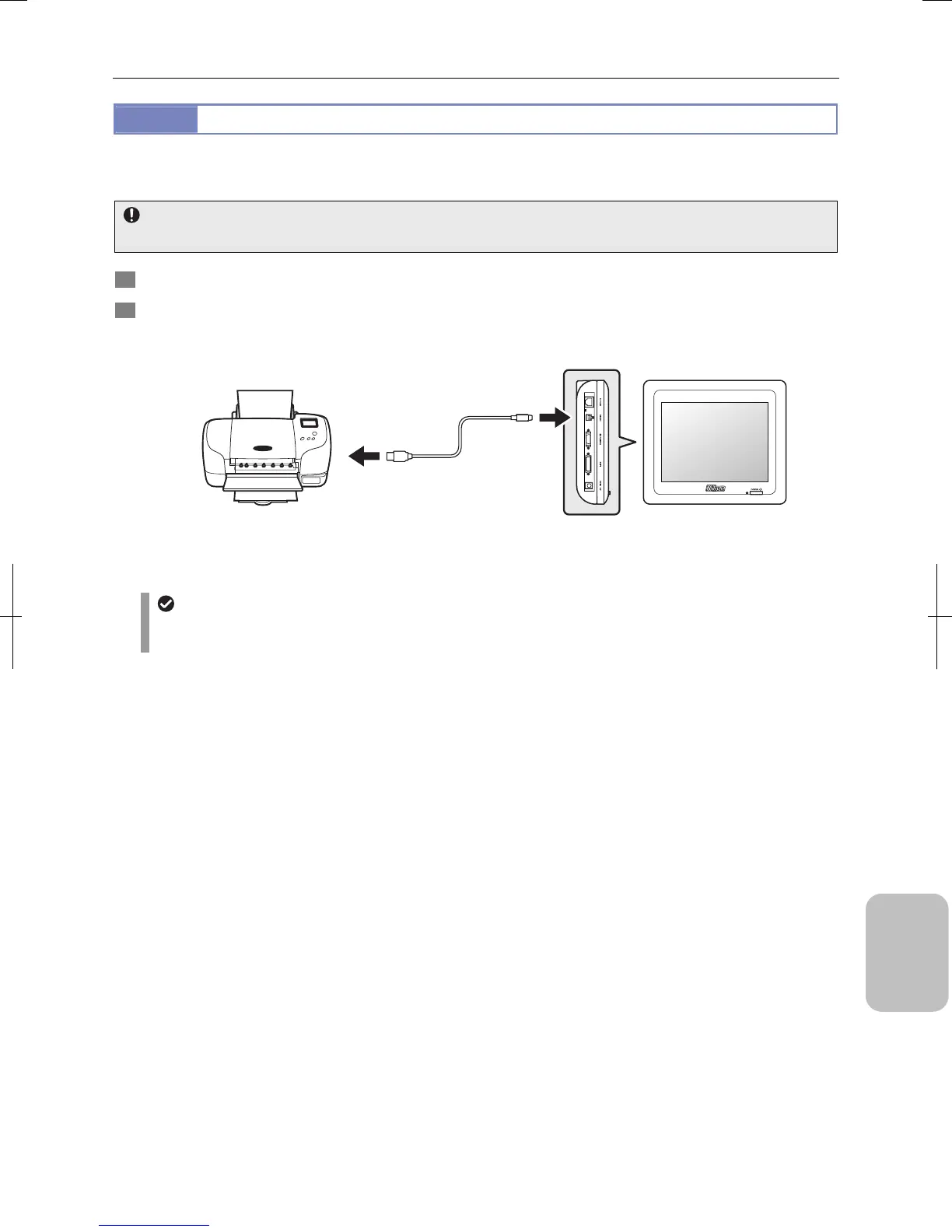

Connecting PictBridge-Compliant Printer with a USB Cable
USB cables
Use a USB cable with ferrite core for stabilization of USB transfer, reduction of noise generated from the DS-L3 and
its peripherals, and satisfaction of EMC standards.
PictBridge-compliant printer
DS-L3
USB 2.0 cable
(AB type)
Connect to the
USB connector.
Connect to
the USB (D)
connector.
Left side
