Chapter 17 Differences in Operation Depending on DS Camera Head Models
242
Other
Information

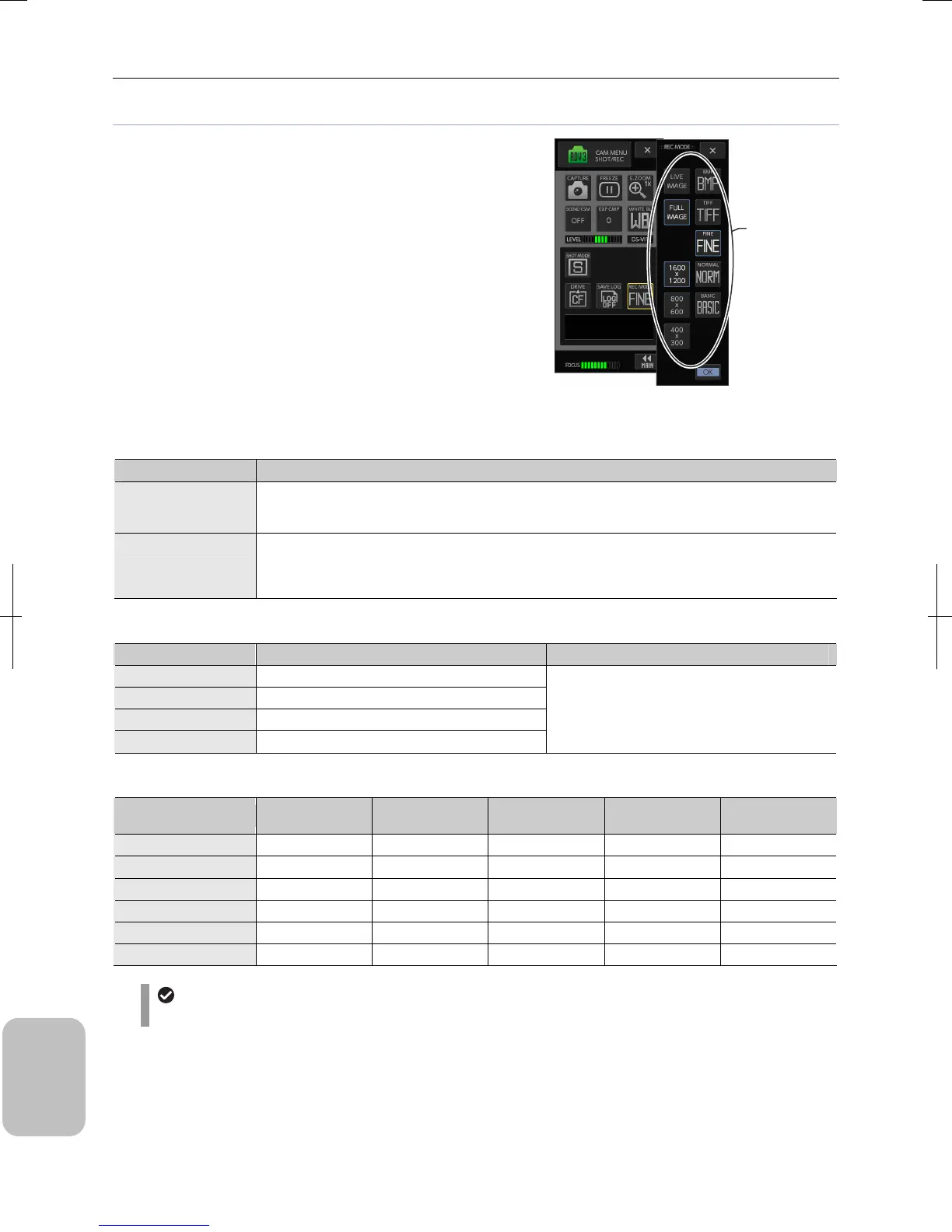

Setting recording mode when DS-Vi1 is used
Image source, image size, and file type to be stored when an
image is captured are set with the [REC MODE] submenu of the
[CAM MENU: SHOT/REC] screen.
• Image source:
Select live image or full image as an image to be captured.
• Image size:
Selectable sizes are displayed in the buttons according to
image mode and image source.
• File type:
Select the type of image to be stored. The capacity of image
file to be stored varies depending on image size and file type
settings.
Note: For details of setting items, see the table below.
Setting Recording Mode (DS-Vi1)
Selection of Image Source (Live Image and Full Image)
Choice Setting
Live Image
An image is recorded based on the live image on the monitor when the image is captured. Image
resolution varies depending on the image size setting, but the image on the monitor is recorded as it is
in principle.
Full Image
An image is recorded based on the image pickup device output when the image is captured. When
[FAST] or [C. SCAN] image mode is selected, image size on the monitor is small. However, if the
recording mode is set to [FULL], a high-definition image can be recorded based on the output of all
pixels of the image pickup device when the image is captured.
Image Size Setting
Image Mode Image Size (Live Image) Image Size (Full Image)
FULL 1600 x 1200, 800 x 600, 400 x 300
2x2 800 x 600, 400 x 300
FAST 800 x 560, 400 x 280
C. SCAN 1600 x 560, 800 x 560
1600 x 1200, 800 x 600, 400 x 300
File Size of Each File Type
Image Size BMP Format TIFF Format
JPEG Format
FINE
JPEG Format
NORMAL
JPEG Format
BASIC
1600 x 1200 5.6 MB 5.6 MB 1.6 MB 720 kB 480 kB
1600 x 560 2.6 MB 2.6 MB 750 kB 340 kB 220 kB
800 x 600 1.4 MB 1.4 MB 400 kB 180 kB 120 kB
800 x 560 1.3 MB 1.3 MB 370 kB 170 kB 110 kB
400 x 300 350 kB 350 kB 100 kB 50 kB 30 kB
400 x 280 330 kB 330 kB 90 kB 50 kB 30 kB
JPEG image file size
JPEG image file size varies greatly depending on objects. Use the file size values in this table as guideline.
Select image
source (live or
full), image size,
and file type
