FORM NO. 56043121 - Advenger / 2800ST, 3400ST / BR 755, BR 855- 81
Item Description
A1 Control PCB Assy
A2 Controller, Speed
F1 Fuse 150 Amp
CB1 Circuit Breaker, 70 Amp
CB2 Circuit Breaker, 10 Amp
H1 Beacon, Warning (optional)
H2 Horn/Backup Alarm
K1 Contactor, Vacuum Motor
K2 Contactor, Brush Motor
L1 Solenoid Valve
M1 Motor / Drive Wheel
M5 Motor, Vacuum
M6 Motor, Vacuum (Optional)
M7 Motor, Brush
M8 Motor, Brush
R1 Potentiometer, 5K
S1 Switch, Key
S2 Switch, Seat
S4 Emergency Disconnect
S5 Deck Switch
S6 Squeegee Switch
Y1 Electromagnetic Brake

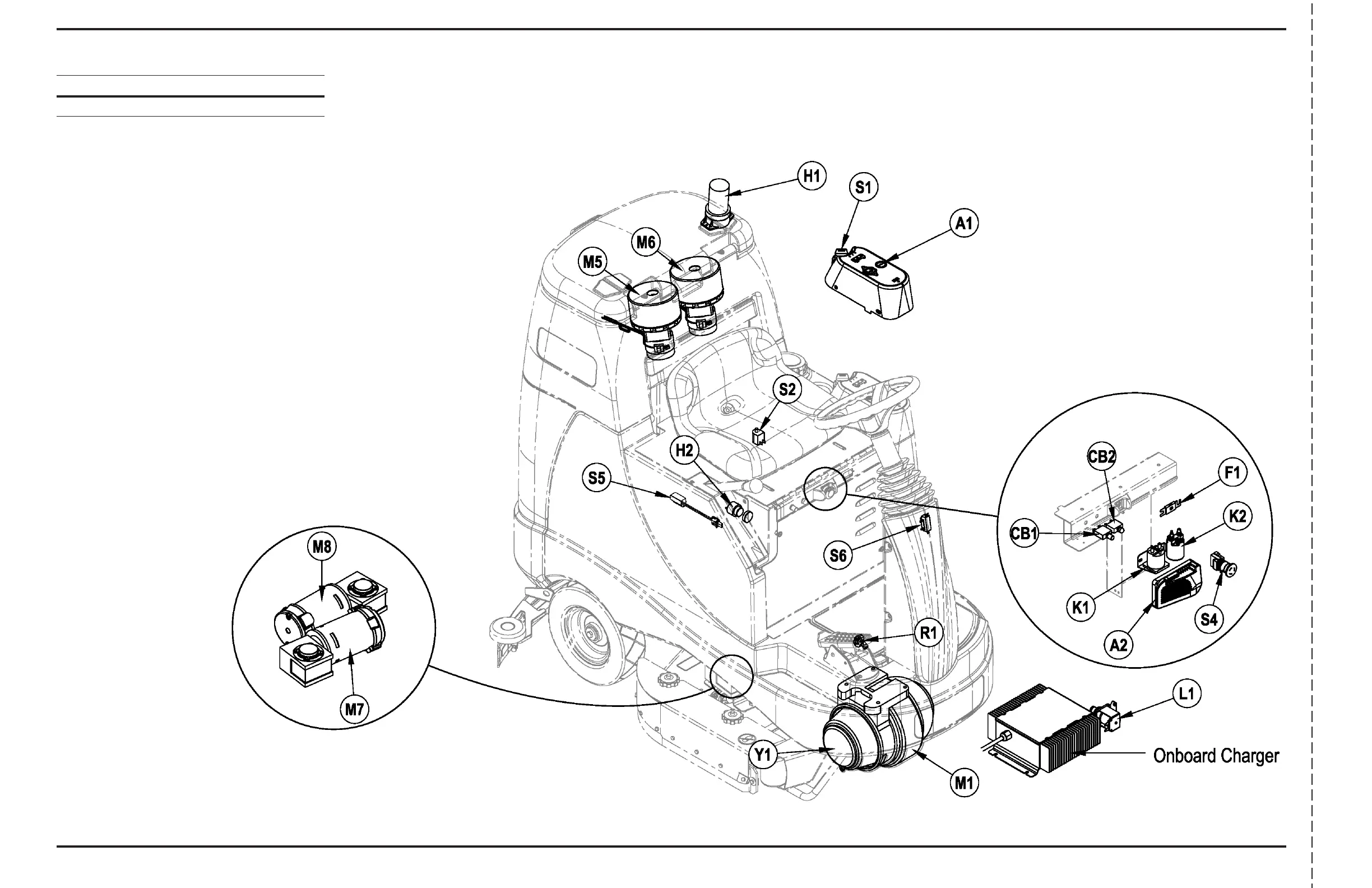

COMPONENT LOCATION (2800ST, 3400ST)
Component Location (2800ST, 3400ST)
To Next Page
