SQUEEGEE SYSTEM 31Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855

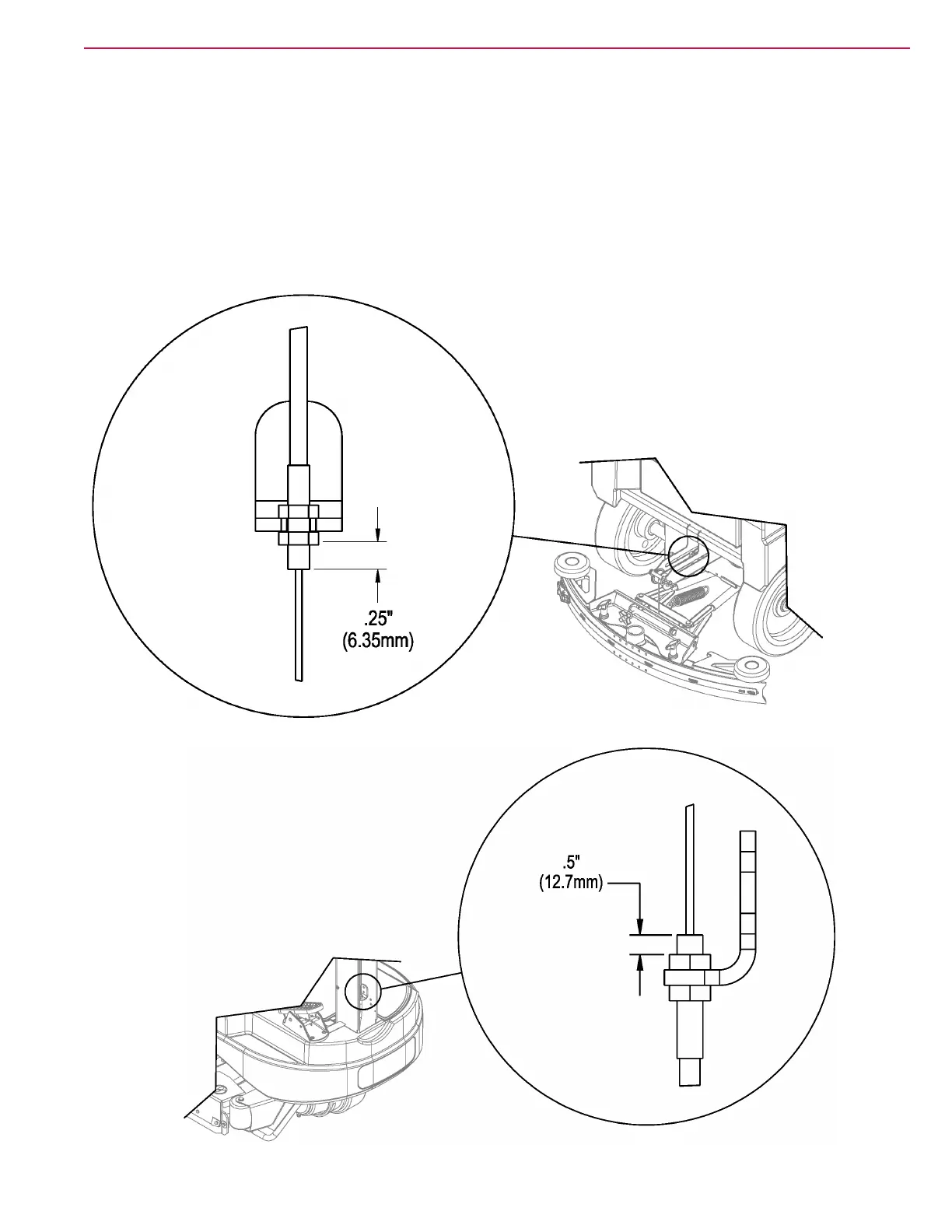

FIGURE 15
Squeegee Lift Cable Adjustment - ST
REAR – Figure 14
Factory setting is 0.25”
Follow steps 1 – 6 of Squeegee Lift Actuator Replacement - Advenger / BR 755, 855
• If the cable is too long and the squeegee doesn’t lift off the ground, move the nut closest to the squeegee away from the machine, decreasing
the distance from the nut to the reference end (Figure 14).
• If the cable is too short (squeegee doesn’t reach the ground), back the nut towards the machine, increasing the distance from the nut to the
reference end (Figure 14).
To check the adjustment, lift up on the Squeegee Lift Lever. It should not require excessive force. Too much force needed to move the handle means
that the cable is too tight (short) and the nut should be adjusted accordingly.
FIGURE 14
FRONT – Figure 15
Factory setting is 0.50”
Follow the steps outlined in “Steering Column Assembly Shroud Removal”
• If the cable is too long and the squeegee doesn’t lift off the ground,
move the upper nut away from the machine, decreasing the distance
from the nut to the reference end (Figure 15).
• If the cable is too short (squeegee doesn’t reach the ground), back the
nut towards the machine, increasing the distance from the nut to the
reference end (Figure 15).
