SCRUB SYSTEM 41Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
Scrub DECK REMOVAL - Disc and REV
WARNING!
DISCONNECT BATTERIES BEFORE SERVICING.
Scrub Deck Removal / Re-installation
1 Remove both deck side skirt assemblies.
2 Lower the scrub deck with brushes (pads) installed. STD / AXP / EDS SERVICE NOTE: Don’t turn the key switch off until after disconnecting
the battery. This procedure is done to prevent the scrub deck from automatically raising when the key is turned off.
3 See Figure 20. Disconnect the solution system water line located on top of the scrub deck.
4 Disconnect brush motor wiring harness connectors (A) (under right side of machine) and actuator connector(s).
5 Remove the two (B) Hitch Pins that attach the scrub deck to the machine chassis linkage arm weldment.
6 From the right side of the machine pull the deck out from under the machine to complete the removal.
7 To install a scrub deck and roller bumper (if applicable), follow the previous steps in reverse order.

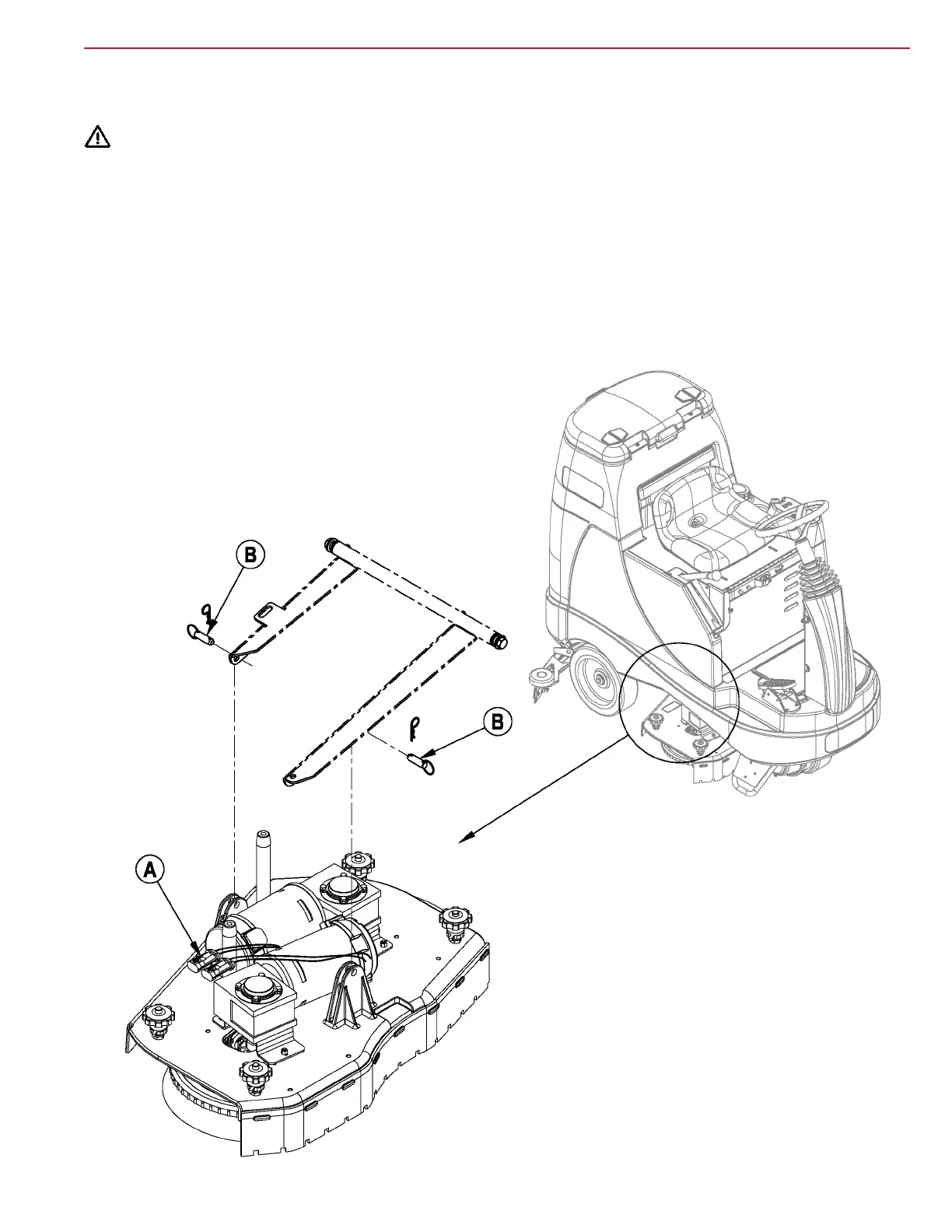

FIGURE 20
