SCRUB SYSTEM 40Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
Advenger / BR 755, 855 REV
The total travel of the actuator is not adjustable, however, the position of the spring housing must be
“timed” to the fully extended motor position as follows:
WARNING!
1 Open the battery compartment and disengage the red Anderson battery connectors.
2 Connect the Scrub Deck Lift Actuator two wire motor connector (completely assembled) to the Actuator Power Cord Adapter
56407502 (see “Diagnostic and Service Tools”).
3 Connect the red alligator clip to the positive battery terminal.
4 Connect the black alligator clip to the negative battery terminal.
5 Hold onto the plastic Spring Housing (F) /Drive Nut assembly and press the rocker switch to run the motor to the fully extended
position.

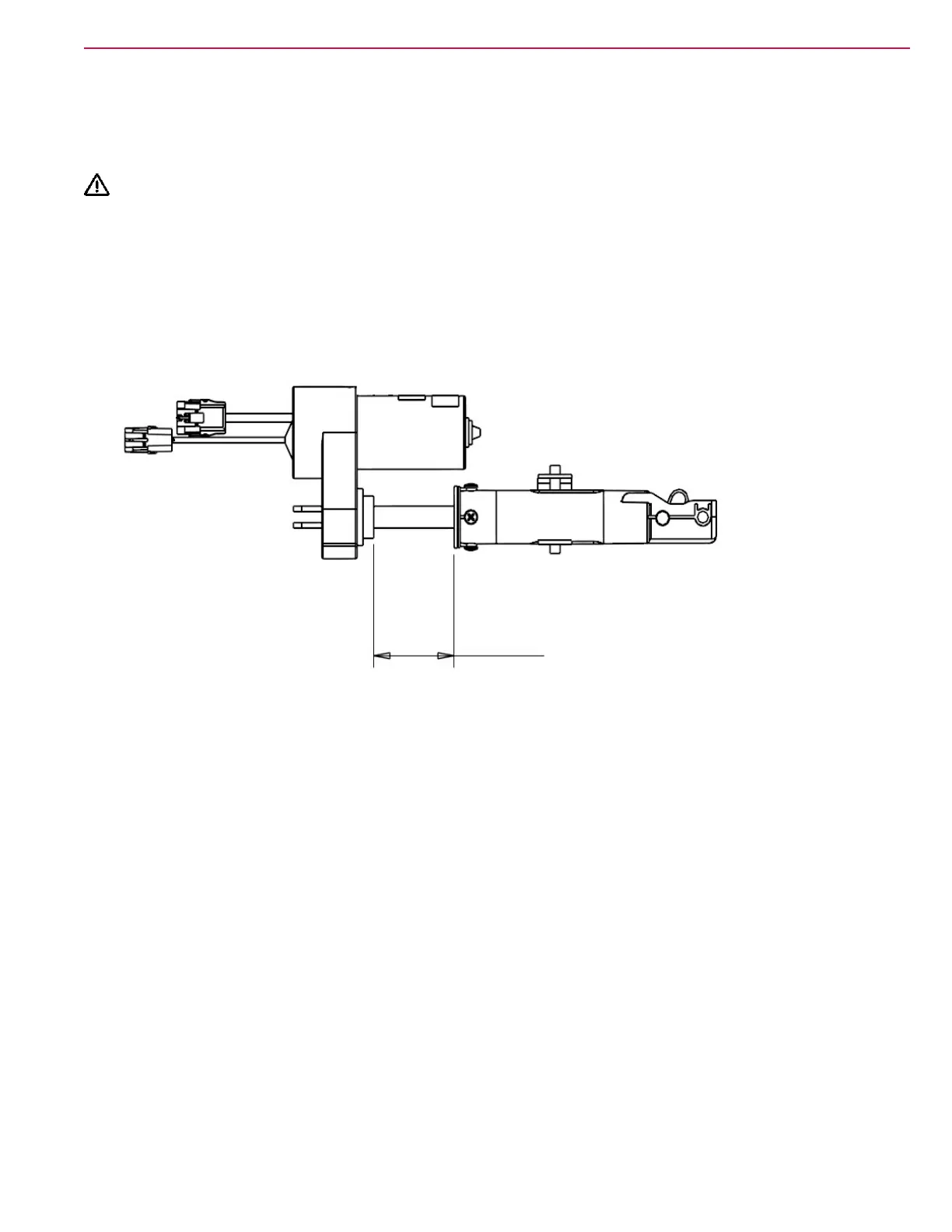

6 Manually turn the plastic Spring Housing (F) assembly until the position measure matches the gure below in the extened position.
3 1/4” Extended (No Load)
0” Retracted (No Load)
To Next Page
