RECOVERY SYSTEM 54Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
RECOVERY SYSTEM

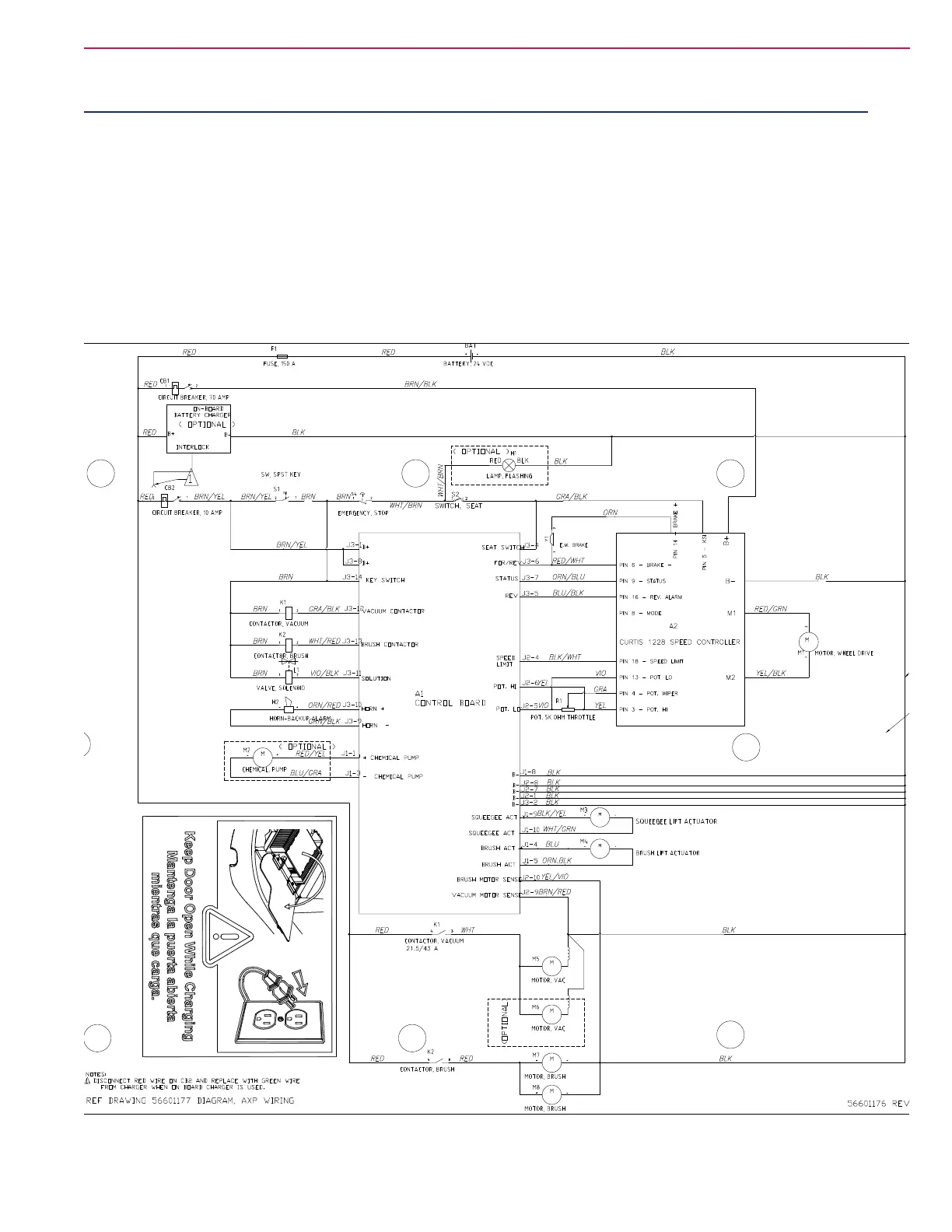

The recovery system is controlled via the control board output to contactor K1 coil, turning on one or both (if equipped) vac motors M5
(M6), with control board feedback provided via the BRN/RED vac motor current-monitoring sense wire.
Refer to the section “Understanding Control of Squeegee, Scrub, and Recovery Systems via Modes” for details about functionality of the
Recovery System due to multiple systems operating in tandem under various seat switch and button congurations.
For the Recovery System to function properly, the systems mentioned above in addition to the Wheel Drive System must be operating
properly in order for the vac motors to turn on unless by-passed by entering Service Test Mode for troubleshooting purposes.
ADVENGER / BR 755, 855
