Know Your Machine 13Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
Know Your Machine

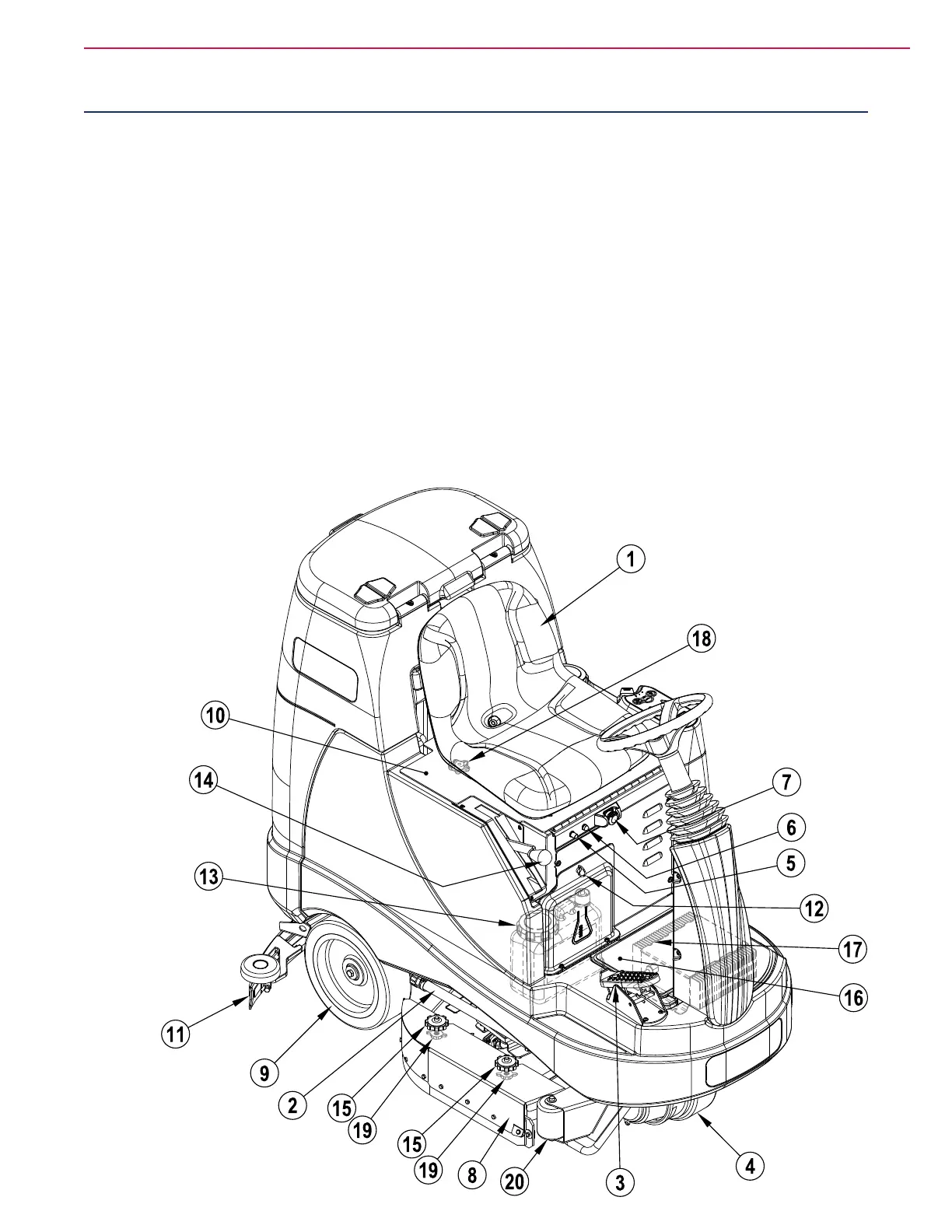

Machine Front RH View
1 Operator’s Seat
2 Solution Tank Drain Hose
3 Drive Pedal, Directional/Speed
4 Drive Wheel
5 Drive Wheel Circuit Breaker (70 Amp)
6 Control Circuit Circuit Breaker (10 Amp)
7 Emergency Stop
8 Scrub Deck
9 Rear Wheel
10 Battery Compartment (under seat)
11 Squeegee Assembly
12 Detergent Cartridge Access Cover (AXP/EDS or EcoFlex models only)
13 Detergent Cartridge (AXP/EDS or EcoFlex models only)
14 Scrub Deck Raise/Lower Lever (ST models only)
15 Deck Skirt Removal Knobs
16 Battery Charger Access Door
17 Battery Charger (optional)
18 Seat Adjustment Knob (optional on ST models)
19 Deck Skirt Height Adjustment Knob
20 Front Roller Bumper
