KNOW YOUR MACHINE

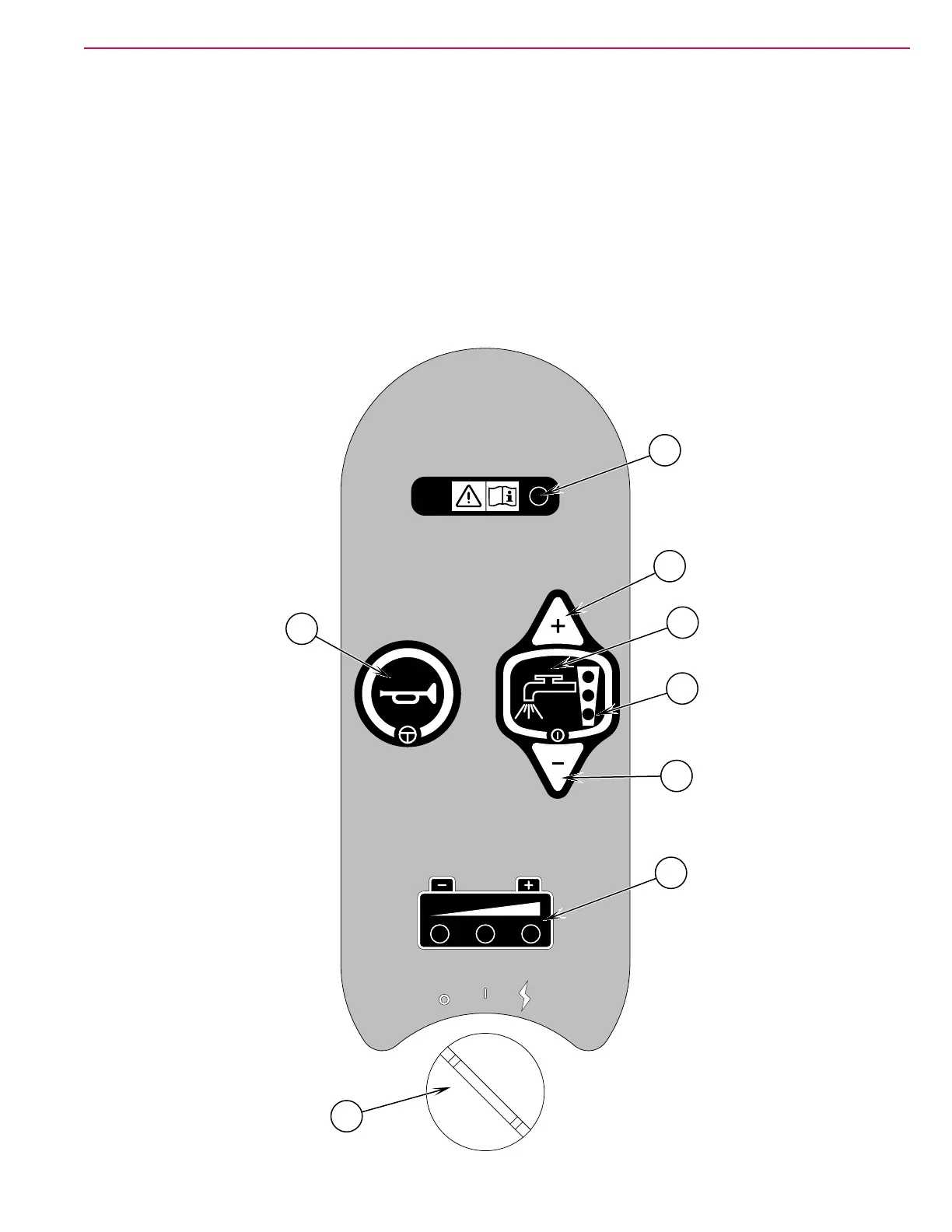

CONTROL PANEL (ST Models)
A Key Switch
B Solution Increase Switch
C Solution ON/OFF Switch
C1 Solution Flow Indicators (Normal, Heavy & Extreme)
D Solution Decrease Switch
K Horn
M Battery Indicator
N Fault Indicator
N
B
C
C1
D
A
K
M
NOTE 1: Recovery Tank FULL status is indicated by the Solution Flow
Indicator LED (C1) turning Off. This status allows machine transport but
disables all active systems and disables the control panel switches except
for the Horn Switch (K). To reset, empty the tank and cycle the key switch.
NOTE 2: Battery Low (Low Voltage Cutout) status is indicated by the
red battery LED (M) ashing. It triggers at 20.55V on the wet setting and
21.75V on the gel setting. Refer to “Changing Program Settings - ST” to
change battery type programming.
