SQUEEGEE SYSTEM 29Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
Squeegee Lift Cable Replacement - Advenger / BR 755, 855
1 Follow steps 1-6 of “Squeegee Lift Actuator Replacement - Advenger / BR 755, 855” to disengage front end of lift cable under
machine.
NOTE: the motor does not need to be disconnected for this procedure.
2 See Figure 12. Using 7/16” wrenches, remove the hex head bolt and associated hardware (A) to free other end of lift cable.
3 Reassemble in reverse order and test for proper raise and lower functions.
4 When lifting the recovery tank back onto the machine, pay attention to the location of the foam tubes. Route them into the battery
tray, otherwise they will crush.

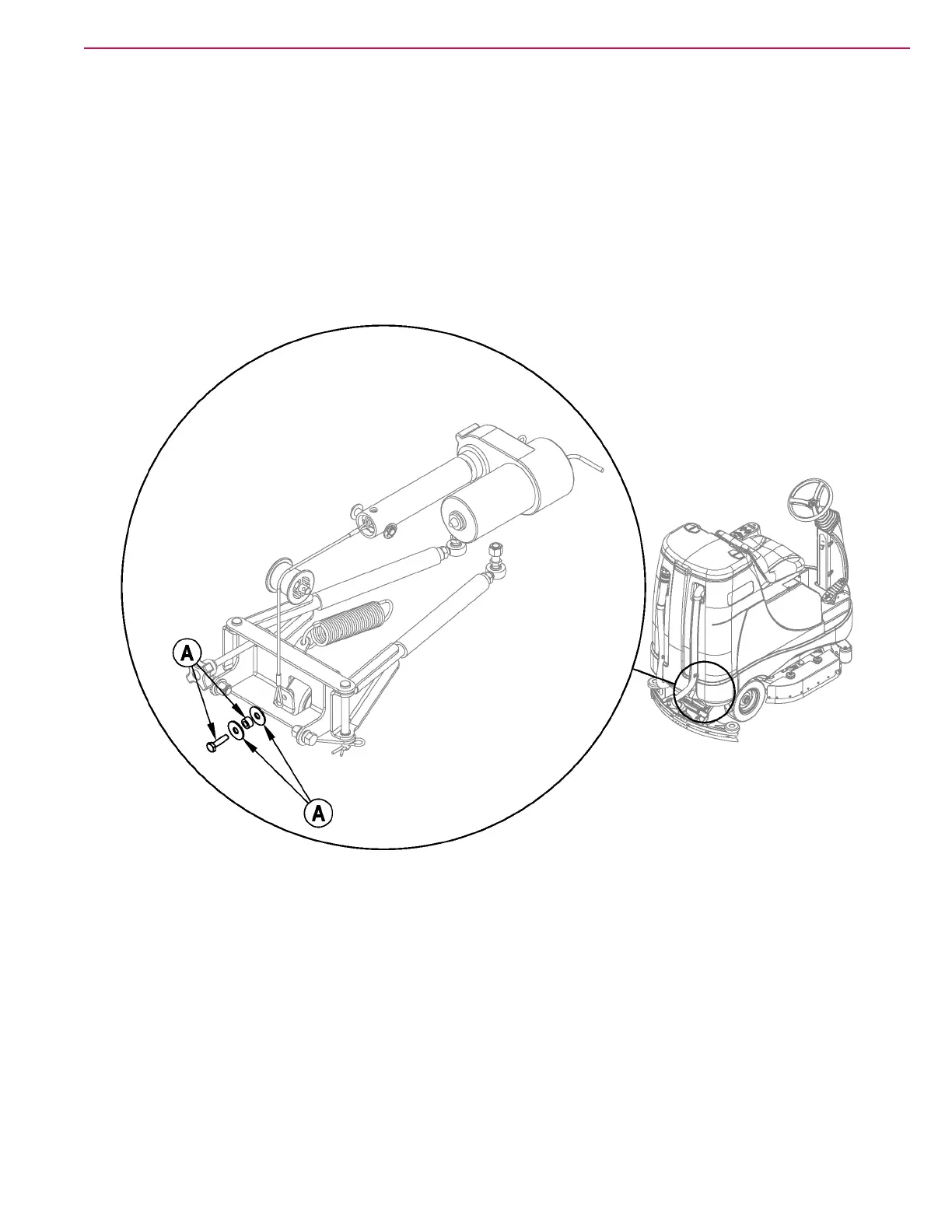

FIGURE 12
