SQUEEGEE SYSTEM 32Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
Steering Column Assembly Shroud Removal
1 See Figure 16. Remove the 4 screws fastening the Lower Column Shroud (A) to the Lower Column Weldment.
2 (ST) Using a 7/16” socket, remove Squeegee Lift Knob and Linkage Arm (B).
3 Using a at bladed screwdriver, pry off the steering wheel plastic center cap.
4 Using a ¾” socket, remove the hex nut from the steering wheel center.
5 Pound the steering wheel (C) off from behind using a mallet, observing Woodruff key as it may y off in the process.
6 Pull off accordion Steering Boot (D) from the upper steering column.
7 Lift the battery charger cover.
8 Pry the plastic Lower Column Shroud off of the weldment by starting on the left side (away from knob) so shroud can clear the
Weldment Linkage bump on the right side (ST - you may want to tap the linkage in a bit to permit clearance).
Reassemble in reverse order, applying a light coating of Silicone Spray or water to the inside of the Steering Boot to permit free travel over
the shaft.

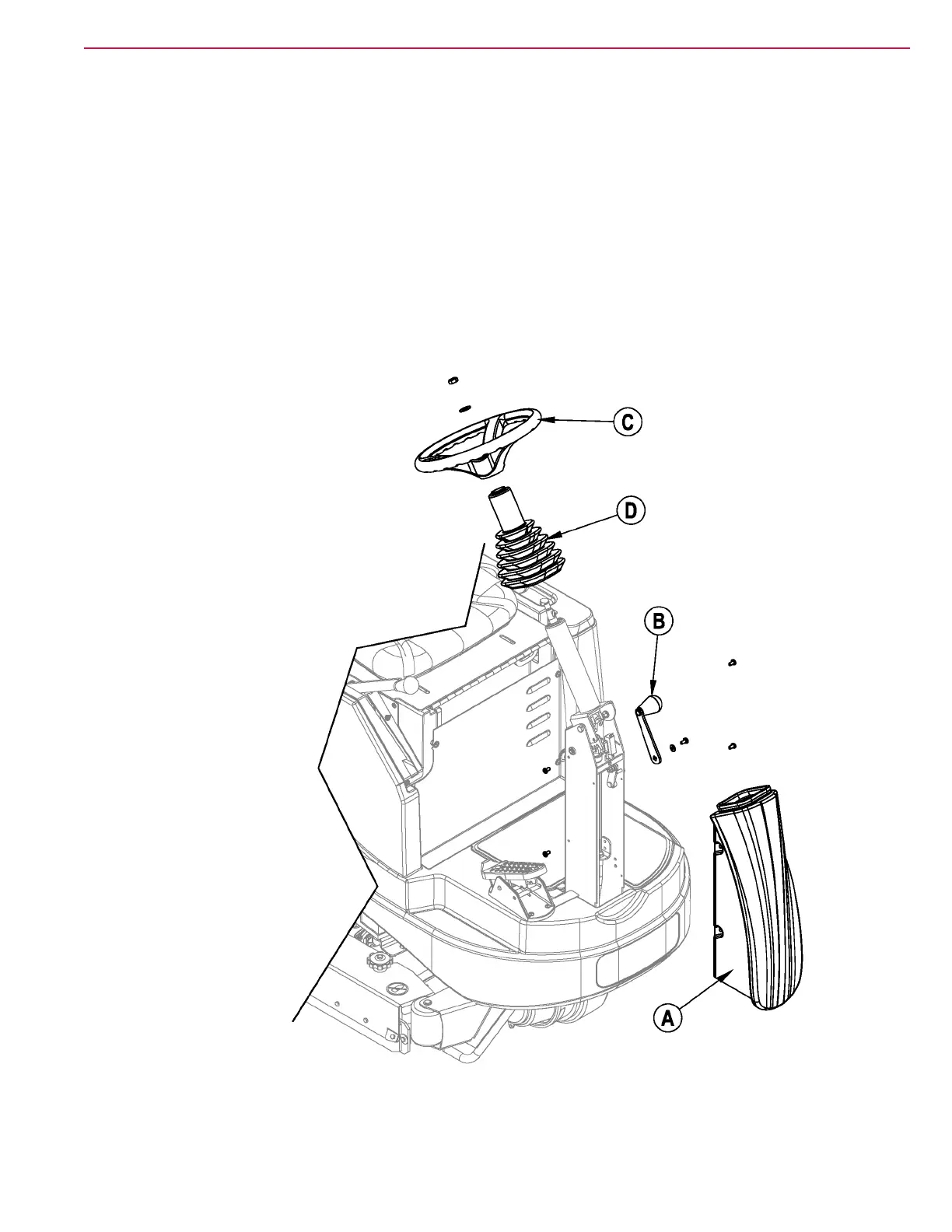

FIGURE 16
