SQUEEGEE SYSTEM 30Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
Squeegee Lift Cable Replacement - ST
CAUTION!
The Recovery Tank is heavy and care should be taken in removing it. Two people recommended, or battery roll-out unit.
REAR:
1 Lower the Squeegee Tool to the oor and then disconnect the battery pack at the red Anderson connector in the battery compartment.
2 Drain the recovery tank using the Recovery Tank Drain Hose (31).
3 Disconnect the Squeegee Hose from the Squeegee Tool and remove the tool from its mount via the two thumbscrews.
4 Lift up the seat and unplug the vacuum motor (and warning beacon if equipped) connectors located in the battery compartment.
5 Open the hinged recovery tank cover and grip the top inside edge of the tank, then pull straight up to free it from the solution tank platform.
Guide the tank off the rear of the machine to the oor.
6 See Figure 13. Using 7/16” wrenches, remove the hex head bolt and associated hardware (A) from the Squeegee Pivot Bracket
Weldment to free this end of the lift cable.
7 Loosen the Adjustment Nut (B) to free the cable from the slotted Cable Bracket.
8 Remove the Cotter and Clevis pins (C) at the white plastic roller to permit cable eyelet clearance as the cable is later pulled through from
the front of the machine.
FRONT:
1 Follow the steps outlined in “Steering Column Assembly Shroud Removal” to allow access to Squeegee Lift Cable in the Steering Column.
2 Use a 1/2” wrench to loosen the cable nuts from the Linkage Arm to free the cable. Note condition of plastic bushing in eyelet and replace
if worn.
3 Loosen Adjustment Nut to free cable from slotted Cable Bracket.
4 Using a 3/8” socket, remove charger and charger bracket underneath, exposing cavity though which cable passes.
5 Pull the cable through the machine from the front.
To reinstall the cable, reverse this procedure.
Follow instructions found in “Squeegee Lift Cable Adjustment – ST” to correctly set the Squeegee Lift Cable tightness.

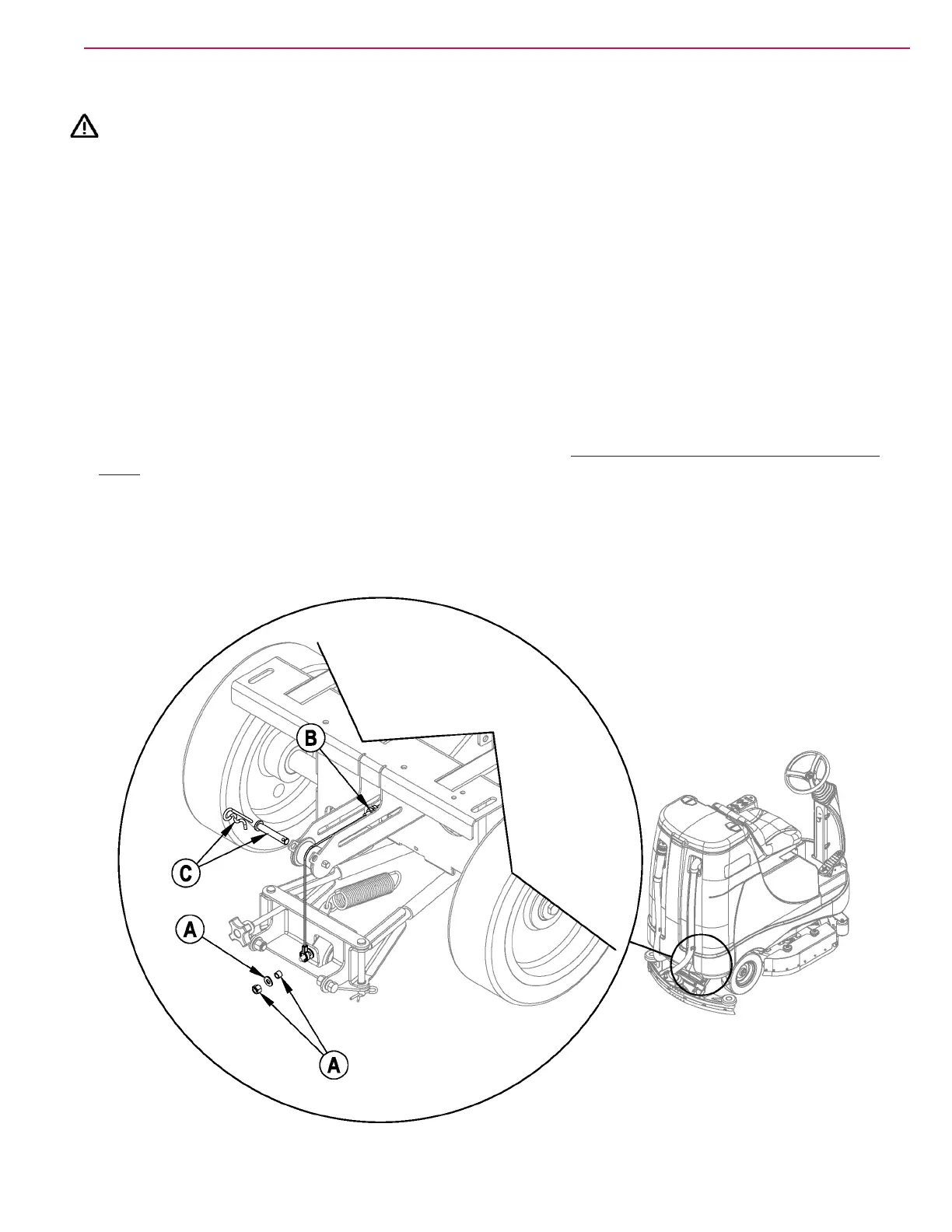

FIGURE 13
