Introduction 12Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
Jacking Points

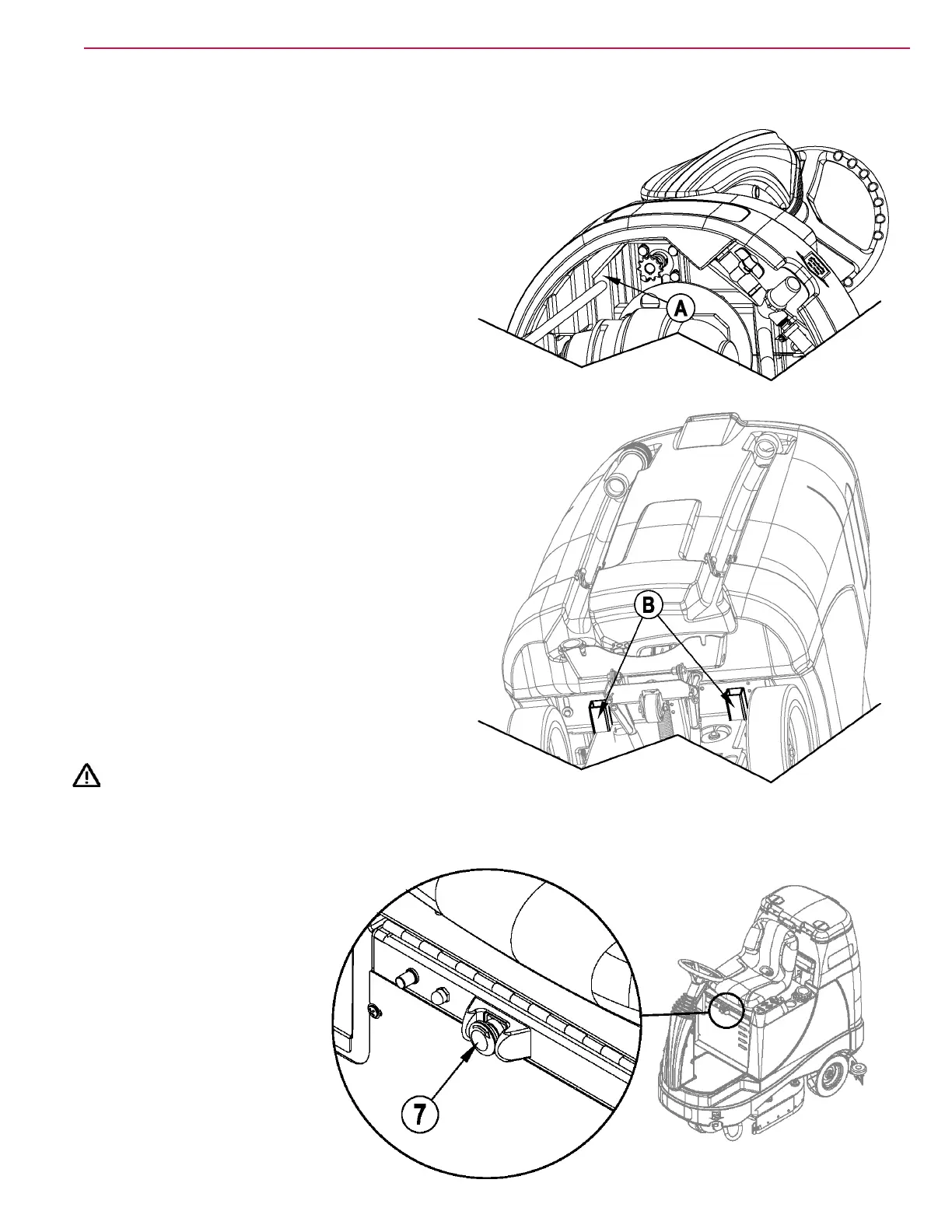

Front - When facing the front of the machine and underneath looking
up, place the jack to the left of the chain on the frame member (A) as
shown in FIGURE 4.
Rear – Remove Squeegee Assembly (11) to access these locations.
Use a bottle jack at these points (B) as shown in FIGURE 5.
FIGURE 4
FIGURE 5
Emergency Stop Knob
WARNING!
The Emergency Stop Knob (7) disconnects power from the Speed Control and Drive Wheel.
It does not disconnect the batteries, but will continue to power the control board . Do not use the Emergency Stop Knob as a substitute
for disconnecting the red Anderson battery connector inside the battery compartment.
