Introduction 7Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
Technical Specications
GENERAL
Machine Voltage 24 VDC
Dimensions (without Squeegee and
Scrub Deck)
Length (W/squeegee): 60 in (152.4 cm)
Width (body): 27.5 in (70 cm)
Height (Recovery tank): 51.7 in (131.3cm)
Scrub Deck and
Squeegee Widths
Scrub Deck Width: Squeegee Width:
30.3 in (77 cm) 28 disc, REV 32.6 in (82.8 cm)
36.3 in (92.2 cm) 34 disc 41.4 in (105.2 cm)
31.6 in (80.3 cm) 28 cyl 32.6 in (82.8 cm)
Tank Capacities
Solution Tank: 28 gal (106 l)
Recovery Tank: dynamic: 25 gal (95 l); static: 28 gal (106 l)
Gross Weight (standard machine w/o options; w/full solution tank, empty recovery tank and
heaviest batteries installed)
1451 lbs (658 kg)
Net Weight (standard machine w/o options, batteries or removable brushes; w/empty solution and
recovery tanks)
536 lbs (244 kg)
Static Wheel Loading Front: 615 lbs (279 kg) Rear: 836 lbs (379 kg)
Static Wheel Pressure Front: 174.7 psi (12.3 kg/cm
2
) Rear: 124.7 psi (8.8 kg/cm
2
)
Ingress Protection Code IPX3
Sound Pressure Level
(IEC 60704-1)
63.7 dB(A)
Vibrations at the Hand Controls (ISO 5349-1) .26 m/s
2
Vibrations at the Seat (EN 1032) .05 m/s
2
Gradeability
Transport: 16 % / 9 degrees
Cleaning: 9 % / 5 degrees
Battery Compartment Dimensions
Maximum Battery Compartment
25” L X 15.5” W X 21” H
Without the Box:
26.25” X 16” X 21”

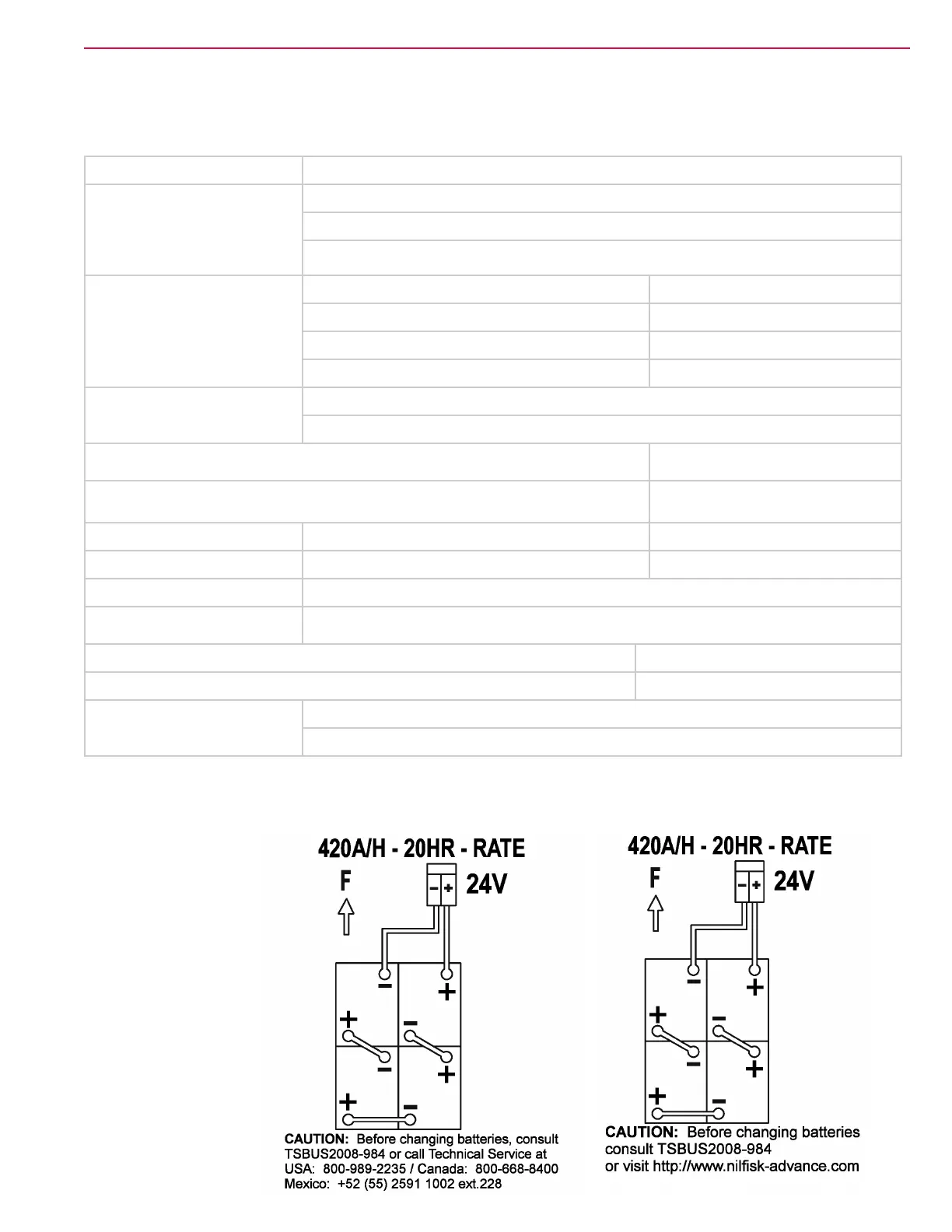

FIGURE 1
Advance Models Nilsk Models
To Next Page
