Know Your Machine 16Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
A
B
C1
D
E
G
H
H1
I
K
L
F
F1
F2
F3
F4
F5
F6
F7
F8
O
J
F10
F9

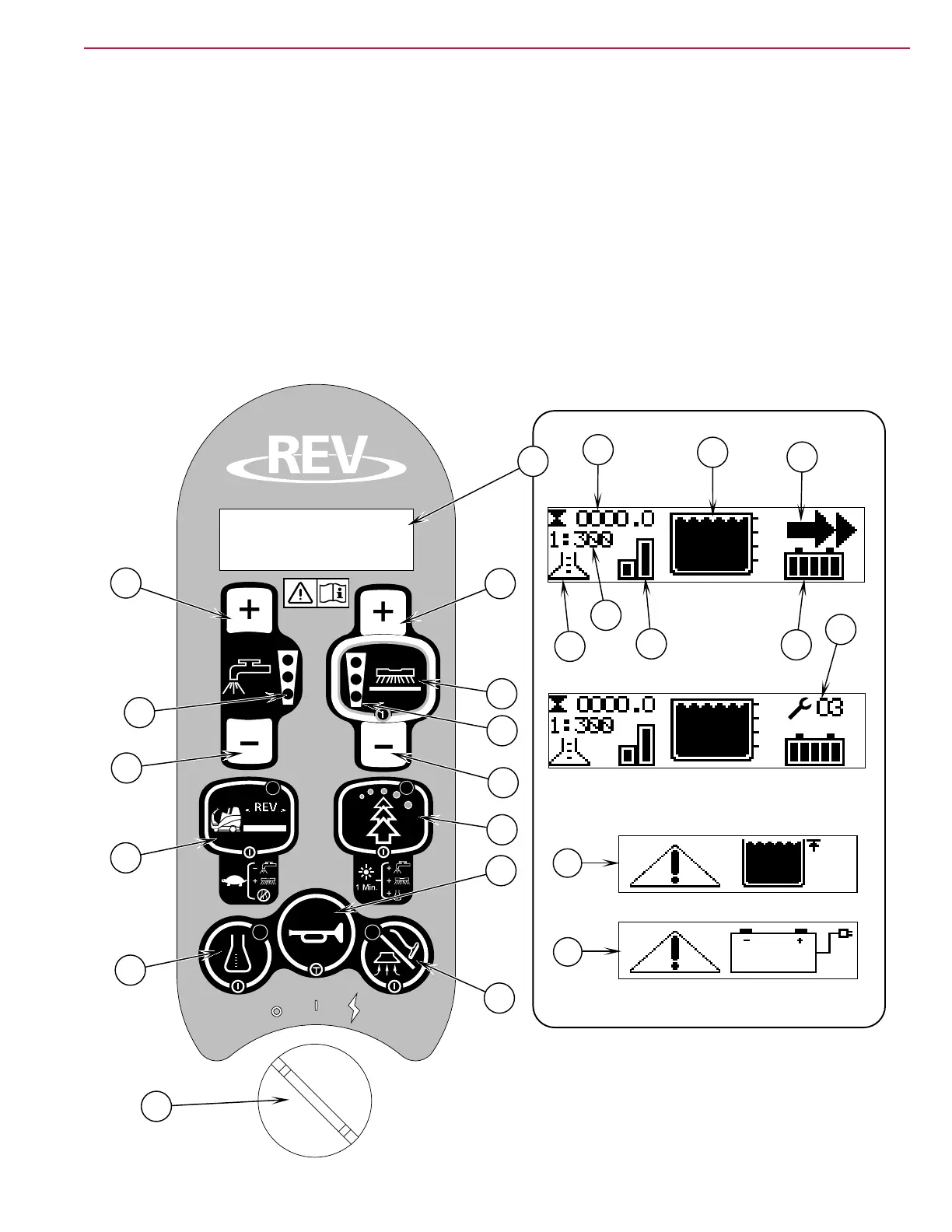

CONTROL PANEL (REV models)
A Key Switch
B Solution ON / Increase Switch
C1 Solution Flow Indicators (Normal, Heavy & Extreme)
D Solution Decrease / OFF Switch
E Detergent ON/OFF Switch
F Display
F1 Hour Meter
F2 Solution Tank Level Indicator
F3 Fault Codes
F4 Detergent Indicator (if so equipped)
F5 Detergent Ratio Indicator
F6 Battery Indicator
F7 Recovery Tank FULL Indicator
F8 Battery Low Indicator
F9 Floor Finish Removal Speed Indicator (low, high)
F10 Detergent Indicator Bar Graph (off, weak, strong)
G Scrub Pressure Increase Switch
H Scrub ON/OFF Switch
H1 Scrub Pressure Indicators (Normal, Heavy and
Extreme)
I Scrub Pressure Decrease Switch
J Burst of Power Switch
K Horn Switch
L Vacuum/Wand Switch
O Floor Finish Removal Mode Switch
