Drive Motor, Bearing and Eccentric (REV)
Removal
1. Remove the brush head and brush motor according to the previous
sections.
2. Press the eccentric out of the bearing inner race using an arbor
press.
3. Remove the bearing retainer by removing the three fasteners.
4. Press the bearing out of the driver motor using an arbor press.
Installation
1. Apply Loctite 609 retaining compound to the bearing bore in the driver motor and to the surface of the inner bearing race.
2. Press the bearing into the driver motor.
3. Install the bearing retainer.
4. Press the eccentric into the bearing.
5. Install a new gasket on the driver motor with the adhesive side toward the driver motor.
6. Apply Loctite Anti-seize (90101A) to the bore of the eccentric.

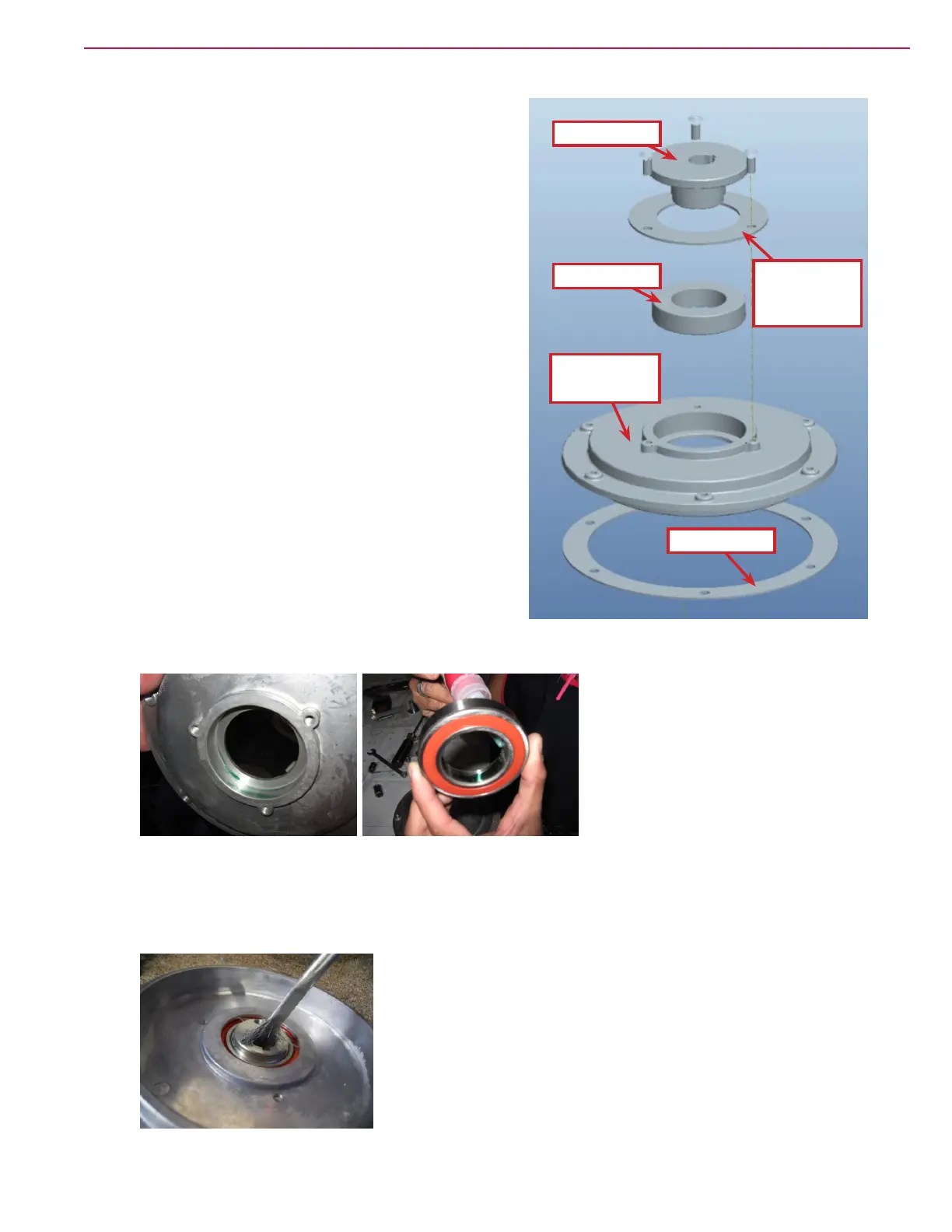

Driver
Motor
Bearing
Eccentric
Bearing
Retainer
Gasket
