RECOVERY SYSTEM 59Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
REPLACING A VACUUM MOTOR
VACUUM MOTOR ASSEMBLY REMOVAL

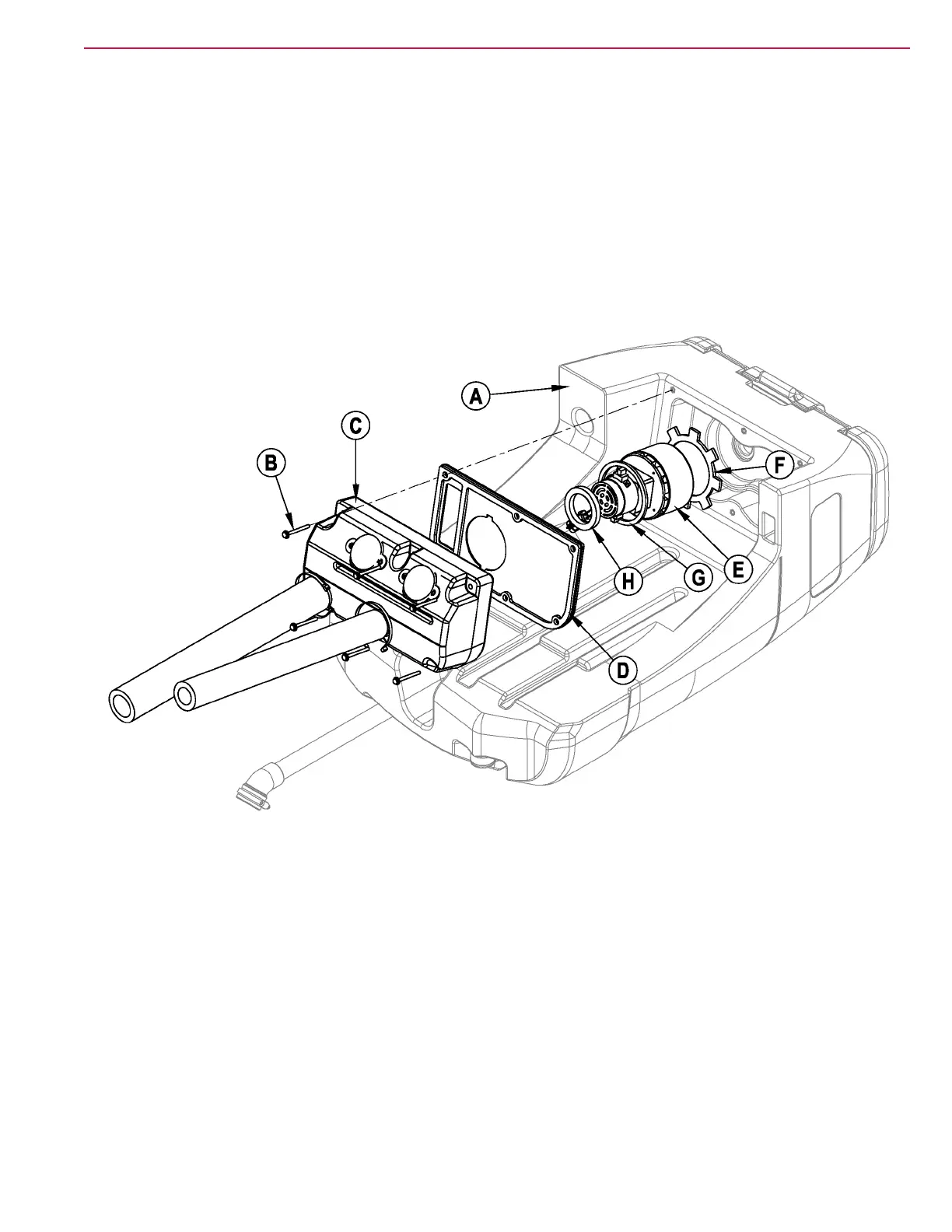

5 See Figure 27. Lay the Recovery Tank (A) on it’s back.
6 Remove the (6) Screws (B) and remove the Vacuum Motor Cover (C) from the tank.
7 Remove Plate and Gaskets (D) and Vacuum Motor (E).
NOTE: The wires should be protruding up through the hole and not from around the edge of the plate. If they are coming from under the
plate, examine for damage and repair if cut.
VACUUM MOTOR ASSEMBLY INSTALLATION
8 Attach gaskets (F) and (G) to the new vac motor; attach gasket (H) to the Vac Motor Cover, and insert motor into base.
9 Reassemble in reverse order, paying attention to route wires up through hole and out towards the back in the groove of Vac Motor
Cover (C).
FIGURE 27
