WHEEL DRIVE SYSTEM 68Service Manual – Advenger, 2800ST, 3800ST, BR 755, BR 855
REPLACING THE DRIVE WHEEL ASSEMBLY (CONTINUED)
11 Reassemble the drive wheel in reverse order, attaching the motor wires as shown.
CAUTION!
Use a Torque Wrench set at 20 ft-lb to retighten the 1 1/2” hex nut at the top of the steering spindle.
NOTE:
Orient the wires in such a way as to minimize bending at the crimps for optimum motor performance.
There are (2) each YEL/BLK and RED/GRN going to each post.

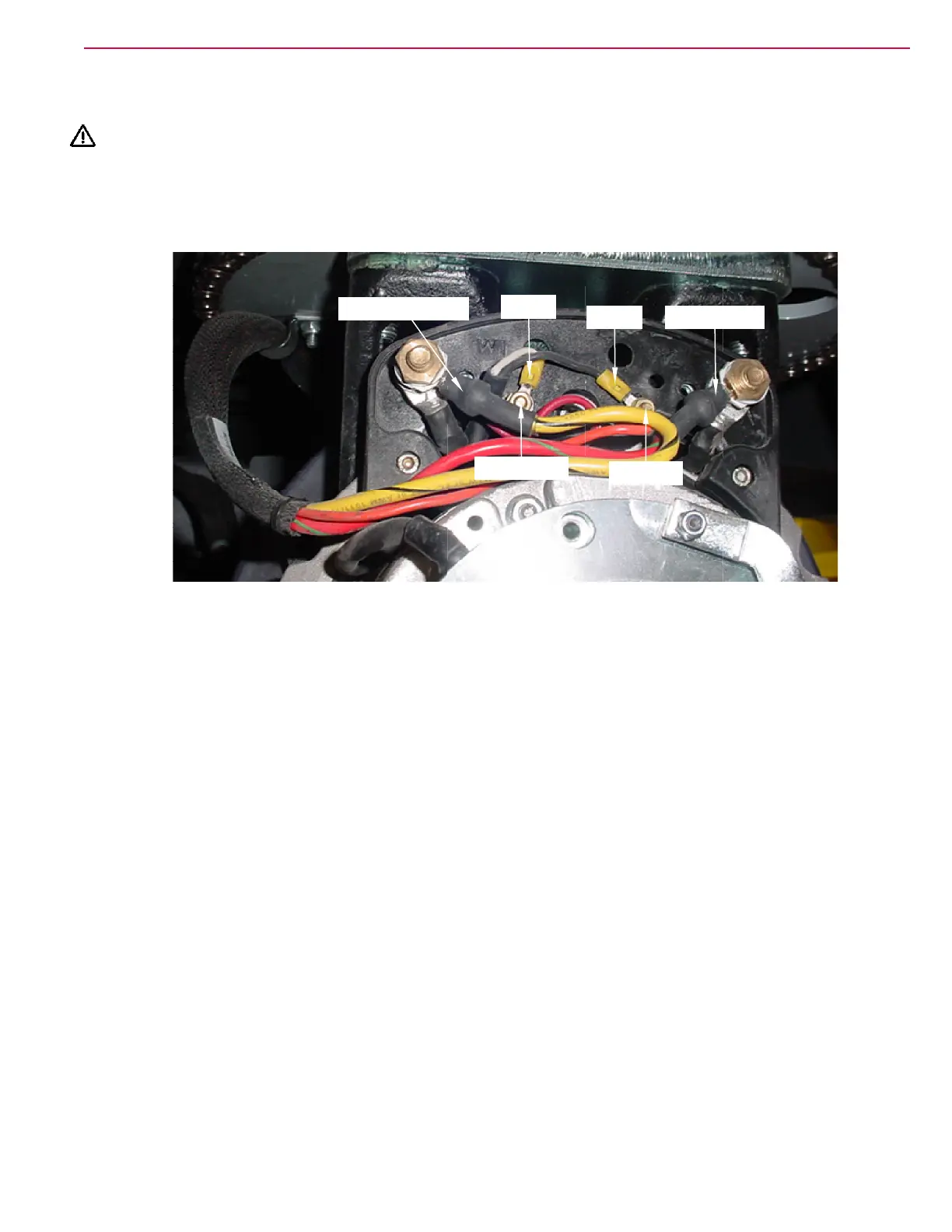

FIGURE 35
WHITE
BLACK
ORANGE
RED/WHITE
RED/GREEN
YELLOW/BLACK
